2U rack-mount UniFi NAS

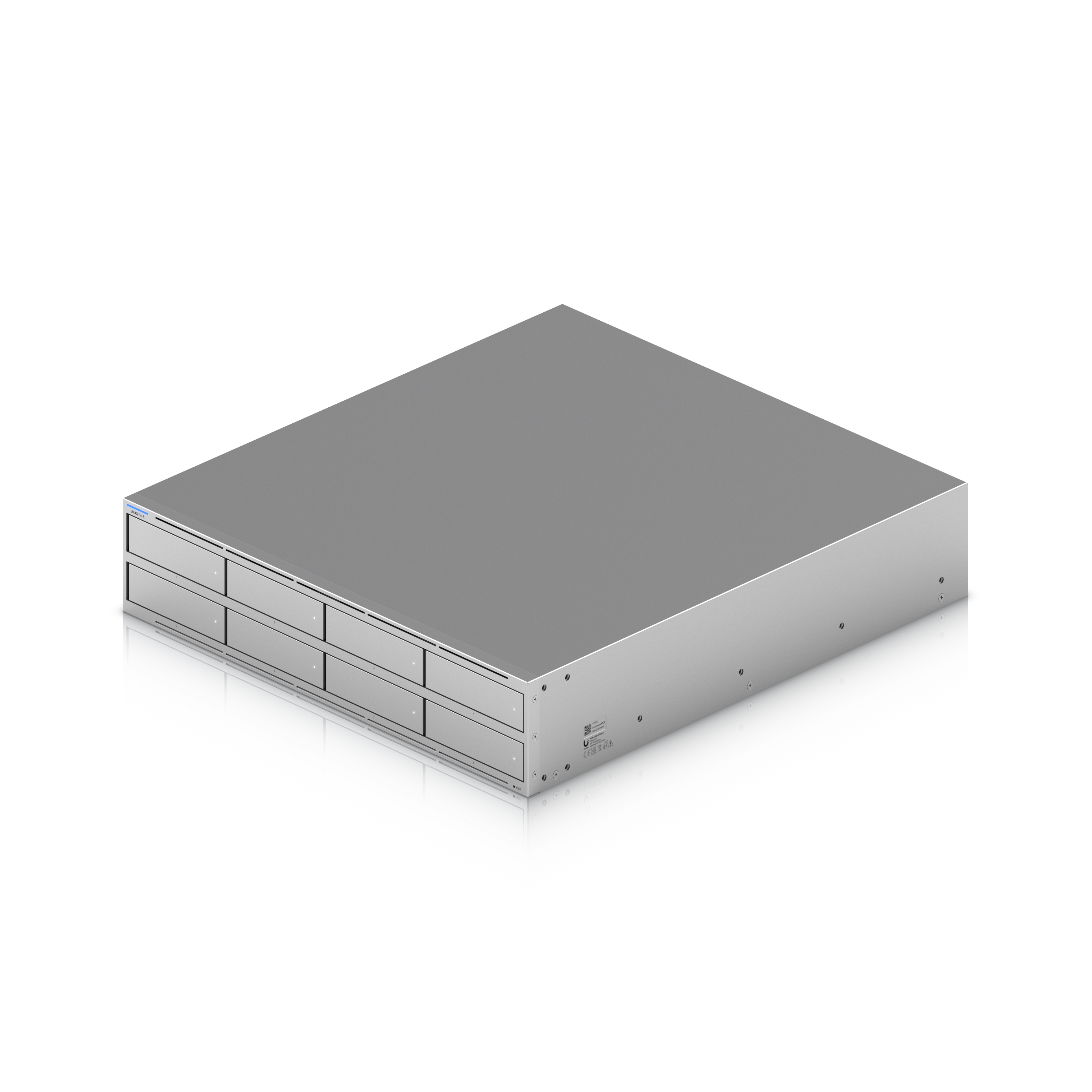

Ubiquiti UNAS-Pro-8 UniFi NAS 8-Bay Rack-Mount Storage
The Ubiquiti UNAS-Pro-8 UniFi NAS is a 2U rack-mount appliance with 8 2.5/3.5-inch drive bays, two M.2 NVMe SSD cache slots, a quad-core ARM Cortex-A57 processor, 16GB memory and high-availability 10Gbps networking.
- Processor
- Quad-core ARM Cortex-A57 at 2.0GHz
- Memory
- 16GB
- Storage
- 8 drive bays + 2 M.2 NVMe bays
- Networking
- 2 × 10G-only SFP+ and 1 × 10GbE RJ-45 (10G/5G/2.5G/1G/100M)
High-capacity UniFi storage with resilient power
The Ubiquiti UNAS-Pro-8 UniFi NAS is designed for larger file-storage and sharing environments managed through UniFi Drive. It supports SSD caching, NFS and SMB, file encryption, snapshots, share links, Time Machine backup and multiple local, remote and cloud backup targets.

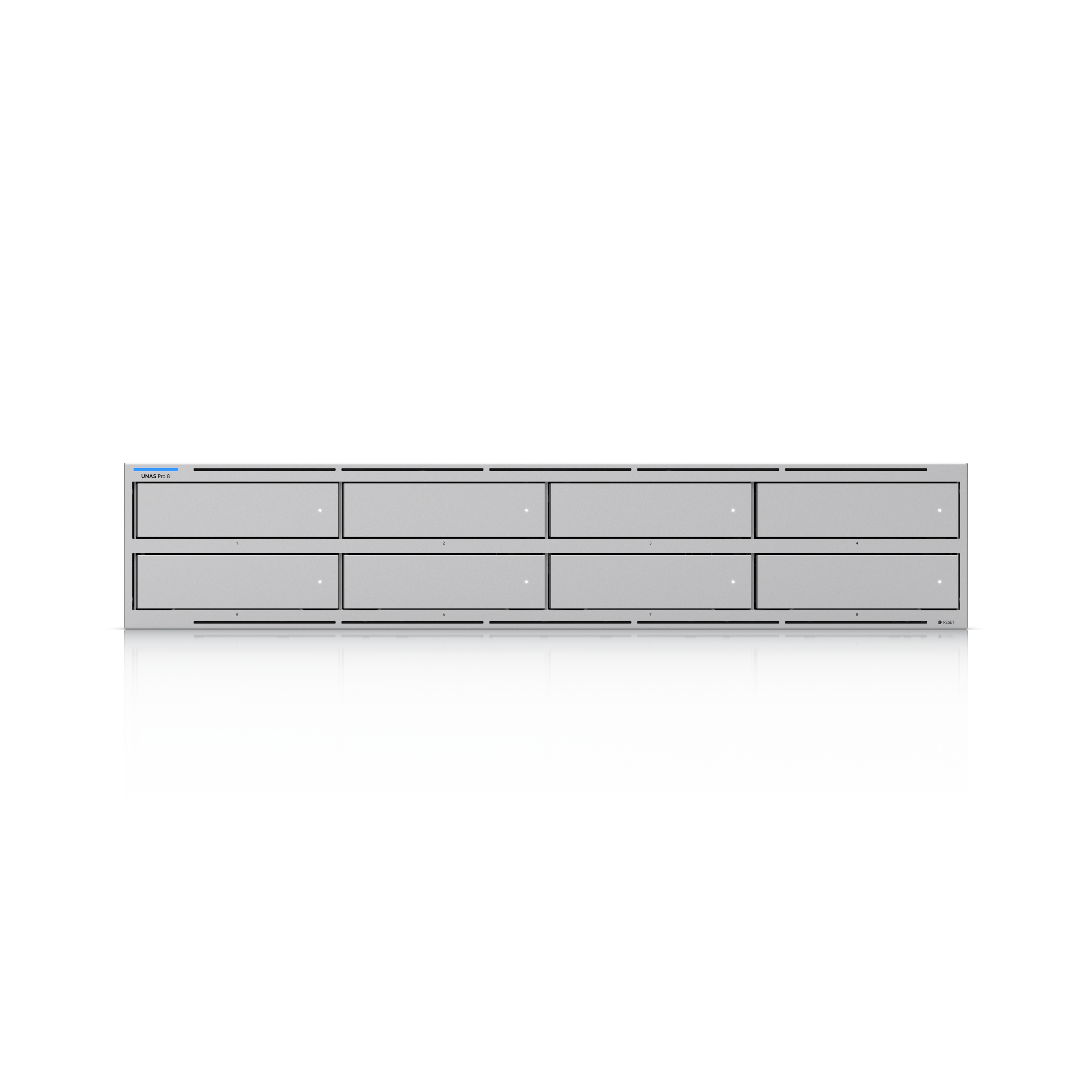

Eight primary drive bays
Eight qualified 2.5-inch or 3.5-inch drives provide the main storage tier.
Multiple 10G interfaces
Two 10G-only SFP+ ports and one multi-rate 10GbE RJ-45 port support high-speed network design.
Dual NVMe cache bays
Two M.2 NVMe bays support SSD caching with a listed 4TiB maximum NVMe capacity.
Multiple RAID groups
The current platform supports multiple RAID groups and hot-spare configuration.
Hot-swappable power modules
Two 550W AC/DC power modules provide the specified redundant power design.
Rack-ready UniFi management
UniFi Drive centralises file access, encryption, snapshots, shares and backup workflows.
Who is the Ubiquiti UNAS-Pro-8 UniFi NAS best for?
A strong choice for
- Larger UniFi file-storage deployments
- Multiple RAID groups and hot-spare planning
- 10GbE-connected workgroups
- Rack environments needing redundant power modules
- Local, remote and cloud backup
Consider another model if you need
- You need more than eight primary drive bays
- Your rack does not meet the stated rail-depth requirements
- You do not have 10Gbps network infrastructure
- Your drives are not on Ubiquiti's qualified list
Key specifications
- Model
- UNAS-Pro-8
- Form factor
- 2U rack mount
- Processor
- Quad-core ARM Cortex-A57 at 2.0GHz
- Memory
- 16GB
- Drive bays
- 8 × 2.5/3.5-inch HDD/SSD
- M.2 NVMe bays
- 2
- Networking
- 2 × 10G-only SFP+ and 1 × 10GbE RJ-45 (10G/5G/2.5G/1G/100M)
- RAID
- RAID 5, RAID 6 and RAID 10
- Maximum power
- 250W
- Dimensions
- 442.4 × 480 × 87.4 mm
- Weight
- 11.5 kg
- Supported rack depth
- 600–1066 mm four-post racks with 9.5 × 9.5 mm square holes
Full technical specifications
Processor, storage and network
| Model | UNAS-Pro-8 |
|---|---|
| Processor | Quad-core ARM Cortex-A57 at 2.0GHz |
| Memory | 16GB |
| Drive bays | 8 × 2.5/3.5-inch HDD/SSD support |
| M.2 NVMe bays | 2 |
| SSD cache | Supported |
| Maximum NVMe SSD capacity | 4TiB |
| Networking | 2 × 10G-only SFP+ and 1 × 10GbE RJ-45 (10G/5G/2.5G/1G/100M) |
| Management | Ethernet |
| RF interface | Bluetooth 4.1 |
UniFi Drive features
| File protocols | NFS and SMB |
|---|---|
| RAID types | RAID 5, RAID 6 and RAID 10 |
| RAID groups | Multiple |
| Hot-spare support | Supported |
| Personal and shared drives | Supported |
| File encryption | Supported |
| Snapshots | Supported |
| Share links | Supported |
| Time Machine backup | Supported |
| Backup targets | Remote UNAS, CIFS/SMB server, Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2 and Wasabi |
Physical, power and environment
| Dimensions | 442.4 × 480 × 87.4 mm |
|---|---|
| Form factor | 2U rack mount |
| Weight | 11.5 kg |
| Enclosure | SGCC steel |
| Mount material | SGCC steel |
| Supported rack depth | 600–1066 mm four-post racks with 9.5 × 9.5 mm square holes |
| Maximum drive power budget | 225W |
| Maximum power consumption | 250W |
| Power method | Two AC inputs with hot-swappable power modules |
| Power supply | 2 × hot-swappable 550W AC/DC modules |
| Operating temperature | -5°C to 40°C |
| Operating humidity | 5% to 95% non-condensing |
| Certifications | FCC, CE, IC and SRRC |
| NDAA compliant | Yes |
Frequently asked questions about the Ubiquiti UNAS-Pro-8 UniFi NAS
What is the UNAS-Pro-8?
The UNAS-Pro-8 is a 2U rack-mount UniFi network storage appliance with 8 primary drive bays and two M.2 NVMe cache bays.
Which processor and memory are in the UNAS-Pro-8?
It uses a quad-core ARM Cortex-A57 processor at 2.0GHz with 16GB memory.
Which drives does the UNAS-Pro-8 support?
It provides 8 qualified 2.5-inch or 3.5-inch HDD/SSD bays plus two M.2 NVMe bays for caching.
What networking does the UNAS-Pro-8 provide?
It provides 2 × 10G-only SFP+ and 1 × 10GbE RJ-45 (10G/5G/2.5G/1G/100M).
Which RAID types does the UNAS-Pro-8 support?
Current UniFi specifications list RAID 5, RAID 6 and RAID 10.
Does the UNAS-Pro-8 support multiple RAID groups?
Yes. The UNAS Pro 8 supports multiple RAID groups and hot-spare configuration.
Does the UNAS-Pro-8 support SSD caching?
Yes. It has two M.2 NVMe bays with a listed 4TiB maximum NVMe SSD capacity.
Can the UNAS-Pro-8 back up to cloud services?
Yes. UniFi lists Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2 and Wasabi, as well as remote UNAS and CIFS/SMB targets.
How is the UNAS-Pro-8 powered?
It uses two hot-swappable 550W AC/DC power modules and has a listed maximum system consumption of 250W.
What rack depth is supported for the UNAS-Pro-8?
The rails support 600–1066 mm four-post racks with 9.5 × 9.5 mm square holes.
- Confirm every HDD, SSD, transceiver and accessory against Ubiquiti's current qualified list.
- The M.2 NVMe bays are specified for SSD caching.
- The rack rails require the stated rack depth and square-hole dimensions.
- Actual capacity and performance depend on installed drives, RAID layout and network design.
