12-bay scalable desktop NAS

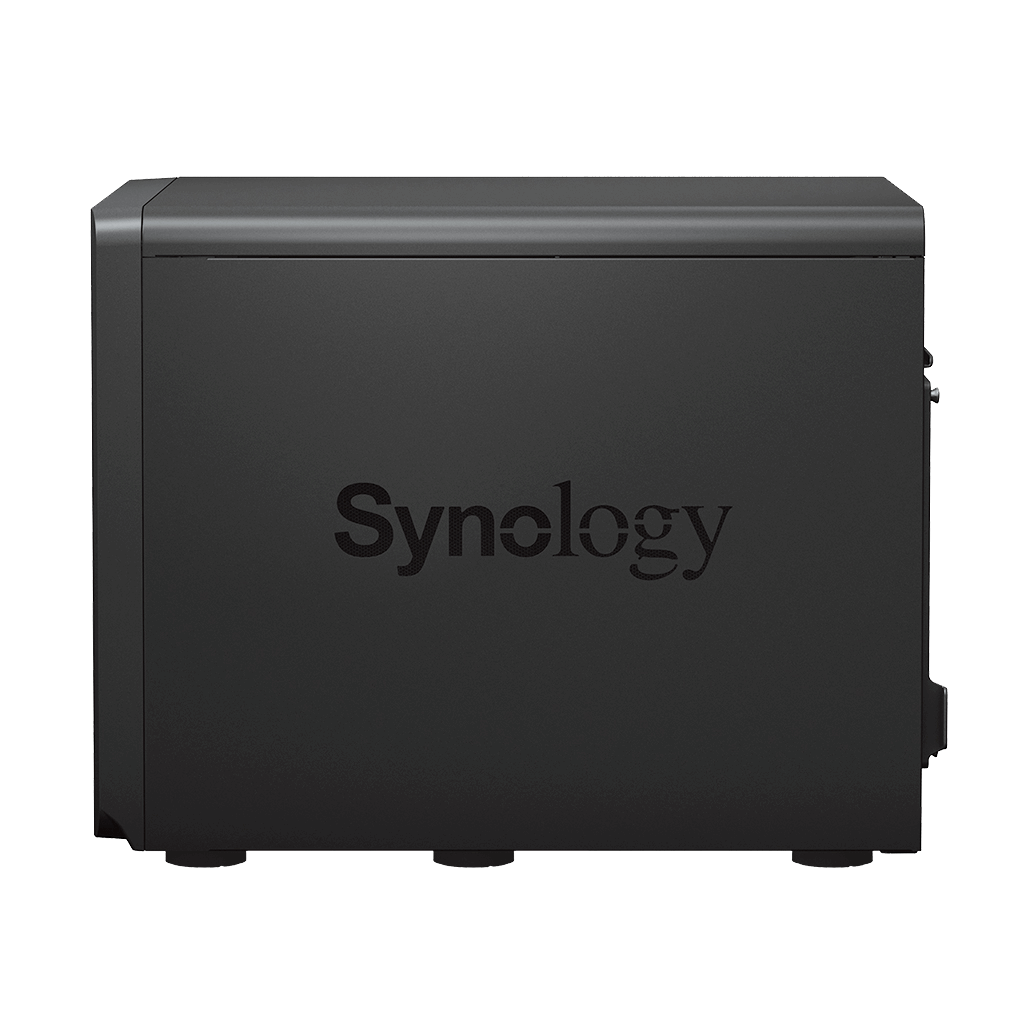

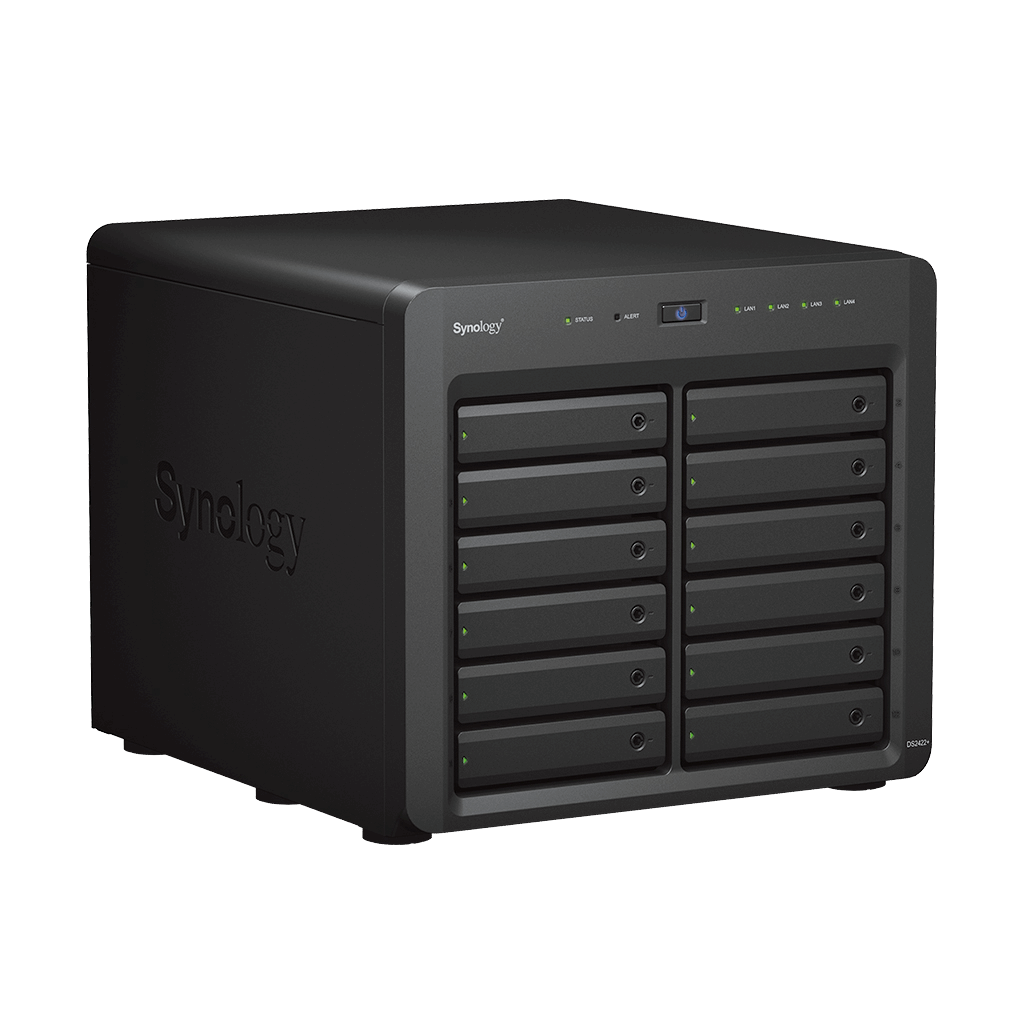

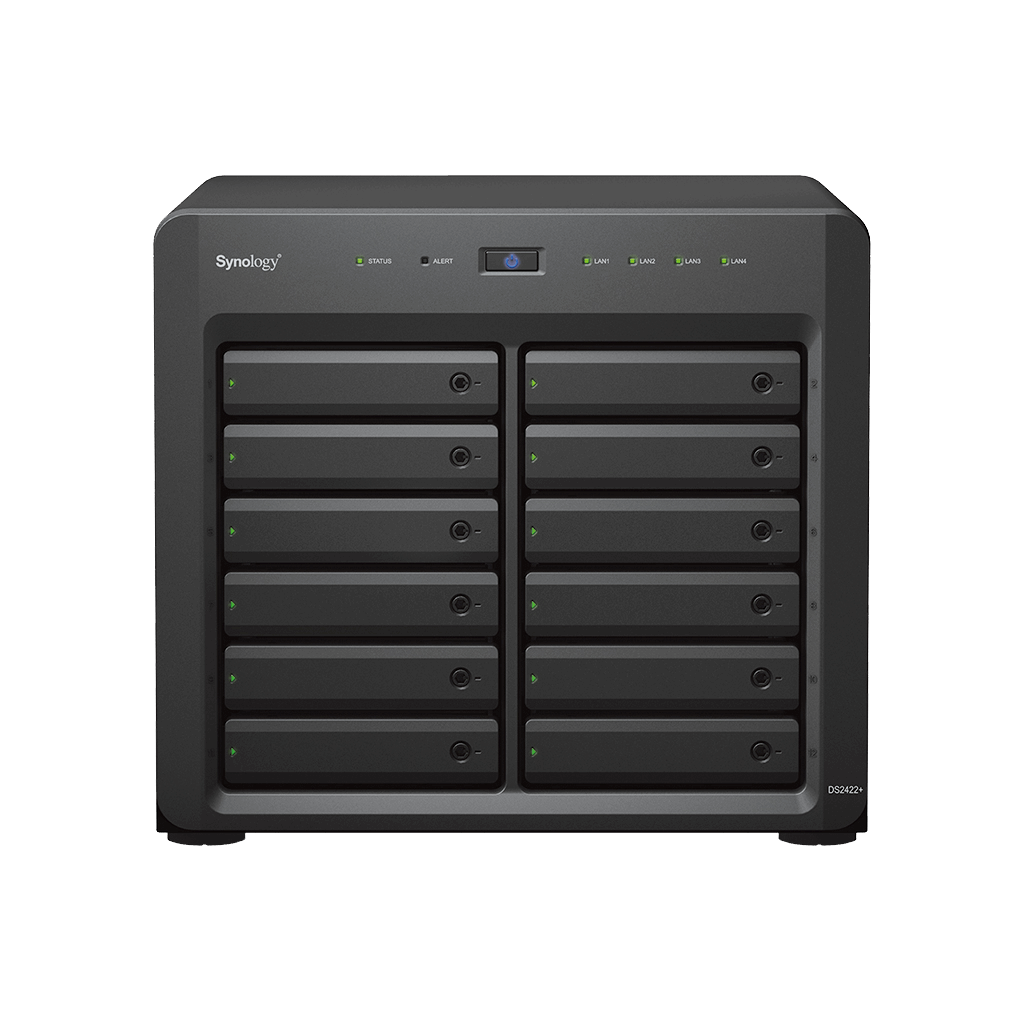

Synology DS2422+ 12-bay Scalable Desktop NAS
A 12-bay business NAS with AMD Ryzen processing, ECC memory, four 1GbE ports and expansion to 24 drives.
- Processor
- AMD Ryzen V1500B
- Memory
- 4 GB DDR4 ECC SODIMM
- Drive bays
- 12; up to 24 (DX1222 × 1)
- Networking
- 4 × 1GbE
Start with twelve bays and scale business storage as needed
The Synology DS2422+ provides a large desktop storage platform for shared files, backup and business data. Its AMD Ryzen V1500B processor, ECC memory, PCIe slot and DX1222 expansion support a staged path from twelve to twenty-four drive bays.
Twelve internal bays
Centralise substantial file and backup collections in one desktop system.
Scale to 24 drives
Add one supported DX1222 expansion unit when more drive bays are required.
Ryzen and ECC platform
The AMD Ryzen V1500B and 4 GB ECC memory provide a dependable base for business services.
Four-port networking
Four built-in 1GbE ports support flexible network configuration without an add-in card.
PCIe upgrade path
Use the Gen3 x8 slot with a compatible add-in card when the network plan changes.
Hot-swappable storage
Supported drive trays allow service and replacement planning without powering down the system.
Who is the Synology DS2422+ best for?
A strong choice for
- Growing business file storage
- Centralised workstation and server backups
- Teams requiring twelve internal bays
- Deployments planning a later DX1222 expansion
- Businesses wanting ECC memory
Consider another model if you need
- You need built-in 10GbE from day one
- You require more than 24 total drive bays
- You need redundant power
- A smaller desktop NAS better matches your capacity needs
Key specifications
- Model
- DS2422+
- Product type
- 12-bay scalable desktop NAS
- Processor
- AMD Ryzen V1500B
- CPU cores
- 4
- CPU frequency
- 2.2 GHz
- System memory
- 4 GB DDR4 ECC SODIMM
- Maximum memory
- 32 GB (16 GB × 2)
- Drive bays
- 12; up to 24 (DX1222 × 1)
- Drive categories
- | 3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD
- Built-in network
- 4 × 1GbE
- USB ports
- 2 × USB 3.2 Gen 1
- PCIe expansion
- 1 × Gen3 ×8 slot (x4 link)
- Dimensions
- Not specified
- Weight
- 9.5 kg
- Warranty
- 3-year hardware warranty; extendable to 5 years with EW202 or Extended Warranty Plus, subject to regional availability
Full technical specifications
Processor, memory and storage
| CPU Model | AMD Ryzen V1500B |
|---|---|
| CPU Quantity | 1 |
| CPU Core | 4 |
| CPU Threads | 8 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.2 GHz |
| Hardware Encryption Engine | Supported |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB × 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB × 2) |
| Memory notes | | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.; Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. | |
| Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 24 (DX1222 × 1) |
| Drive Type | | 3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD |
| Hot Swappable Drive* | Supported |
| Storage notes | The use of non-validated components may limit certain functionality and result in data loss and system instability. |
Network, ports and expansion
| RJ-45 1GbE LAN Port | 4 |
|---|---|
| USB 3.2 Gen 1 Port* | 2 |
| Expansion Port | 1 |
| Expansion Port Type | Mini-SAS HD |
| External Ports notes | | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.; The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
| PCIe Expansion | 1 × Gen3 ×8 slot (x4 link) |
Physical design and power
| Size (Height × Width × Depth) | 270 mm × 300 mm × 340 mm |
|---|---|
| Weight | 9.5 kg |
| System Fan | 120 mm × 120 mm × 2 pcs |
| Fan Speed Mode | | Full-Speed Mode; Cool Mode; Quiet Mode |
| Easy Replacement System Fan | Supported |
| Power Recovery | Supported |
| Noise Level* | 25 dB(A) |
| Scheduled Power On / Off | Supported |
| Wake on LAN / WAN | Supported |
| Power Supply Unit / Adapter | 550 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 73.11 watts (Access); 32.12 watts (HDD Hibernation) |
| British Thermal Unit | 249.63 BTU/hr (Access); 109.67 BTU/hr (HDD Hibernation) |
| Others notes | | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).; Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8% |
Environment, warranty and package
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certification | | FCC; CE; BSMI; VCCI; RCM; UKCA; EAC; CCC; KC; BIS; UL |
| Warranty | 3-year hardware warranty; extendable to 5 years with EW202 or Extended Warranty Plus, subject to regional availability |
| Warranty notes | | The warranty period starts from the purchase date as stated on your purchase receipt.; | |
| Environment | RoHS Compliant |
| Packaging Content | | Main Unit X 1; Accessory Pack X 1; AC Power Cord X 1; RJ-45 LAN Cable X 2; Quick Installation Guide X 1 |
Frequently asked questions about the Synology DS2422+
What is the Synology DS2422+?
The Synology DS2422+ is a 12-bay scalable desktop NAS for growing business file storage, centralised workstation and server backups, teams requiring twelve internal bays.
Which processor is in the Synology DS2422+?
It uses the AMD Ryzen V1500B with 4 cores at 2.2 GHz.
How much memory does the Synology DS2422+ include?
It includes 4 GB DDR4 ECC SODIMM and the supplied maximum memory capacity is 32 GB (16 GB × 2).
How many drive bays does the Synology DS2422+ have?
It has 12 internal drive bays and supports the supplied maximum of 24 (DX1222 × 1).
Which drive types does the Synology DS2422+ support?
| 3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD. Confirm exact drive models on Synology’s compatibility list.
What networking is built into the Synology DS2422+?
The verified built-in network interfaces are 4 × 1GbE.
Can the Synology DS2422+ expand beyond its internal bays?
Yes. The verified maximum is 24 (DX1222 × 1). Expansion units are sold separately.
Does the Synology DS2422+ include storage drives?
No. This listing identifies the Synology DS2422+ as diskless, so compatible drives are selected separately.
What are the Synology DS2422+ dimensions?
It measures Not specified and weighs 9.5 kg.
What warranty applies to the Synology DS2422+?
Synology specifies 3-year hardware warranty; extendable to 5 years with ew202 or extended warranty plus, subject to regional availability. Warranty-extension availability depends on region.
- DS2422+ is listed as diskless; compatible storage drives are selected separately.
- Confirm exact drives, memory and accessories on Synology’s compatibility list for DS2422+.
- Expansion units required to reach 24 (DX1222 × 1) are sold separately.
- Actual usable capacity and performance depend on installed drives, storage configuration, workloads and network environment.
