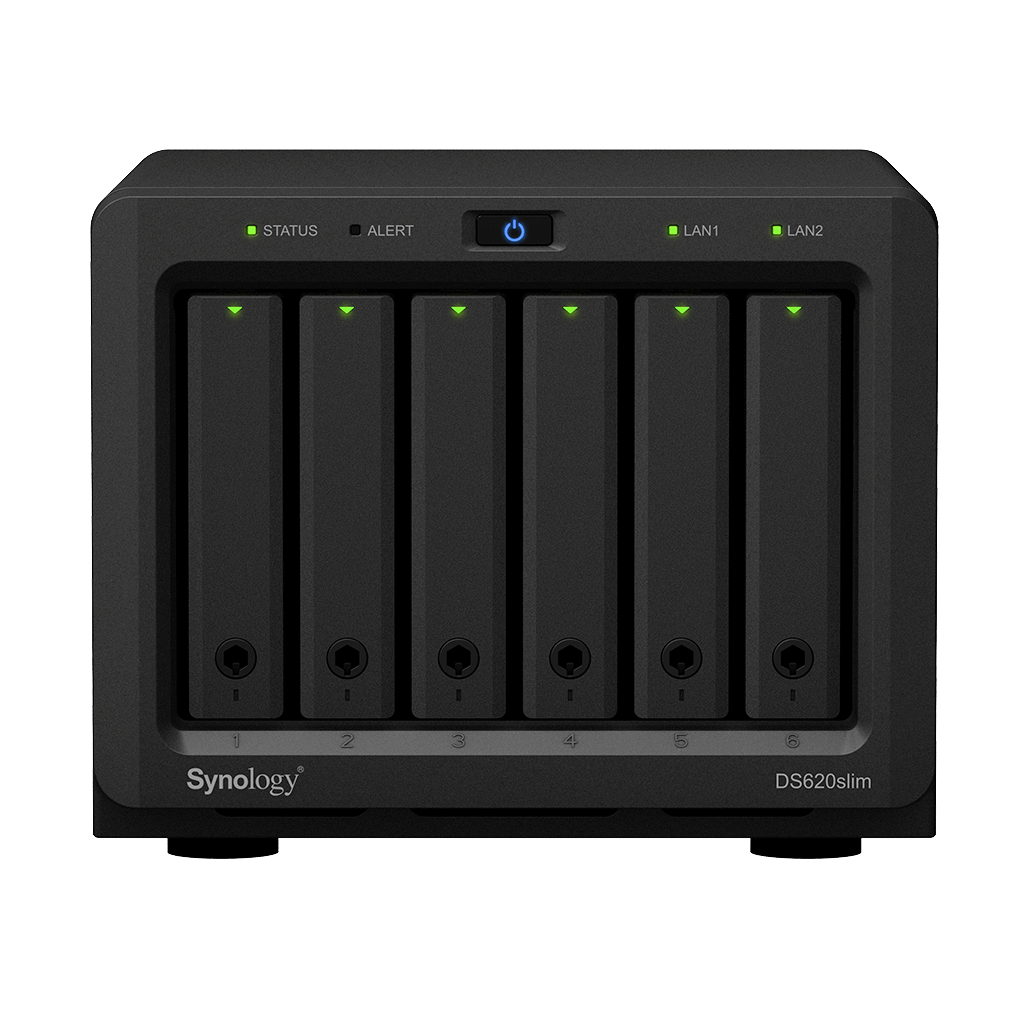

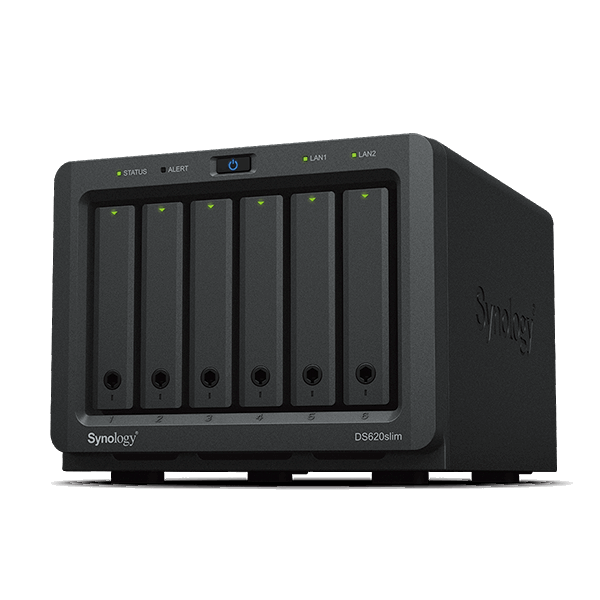

SYNOLOGY Plus series DS620SLIM NAS Front View

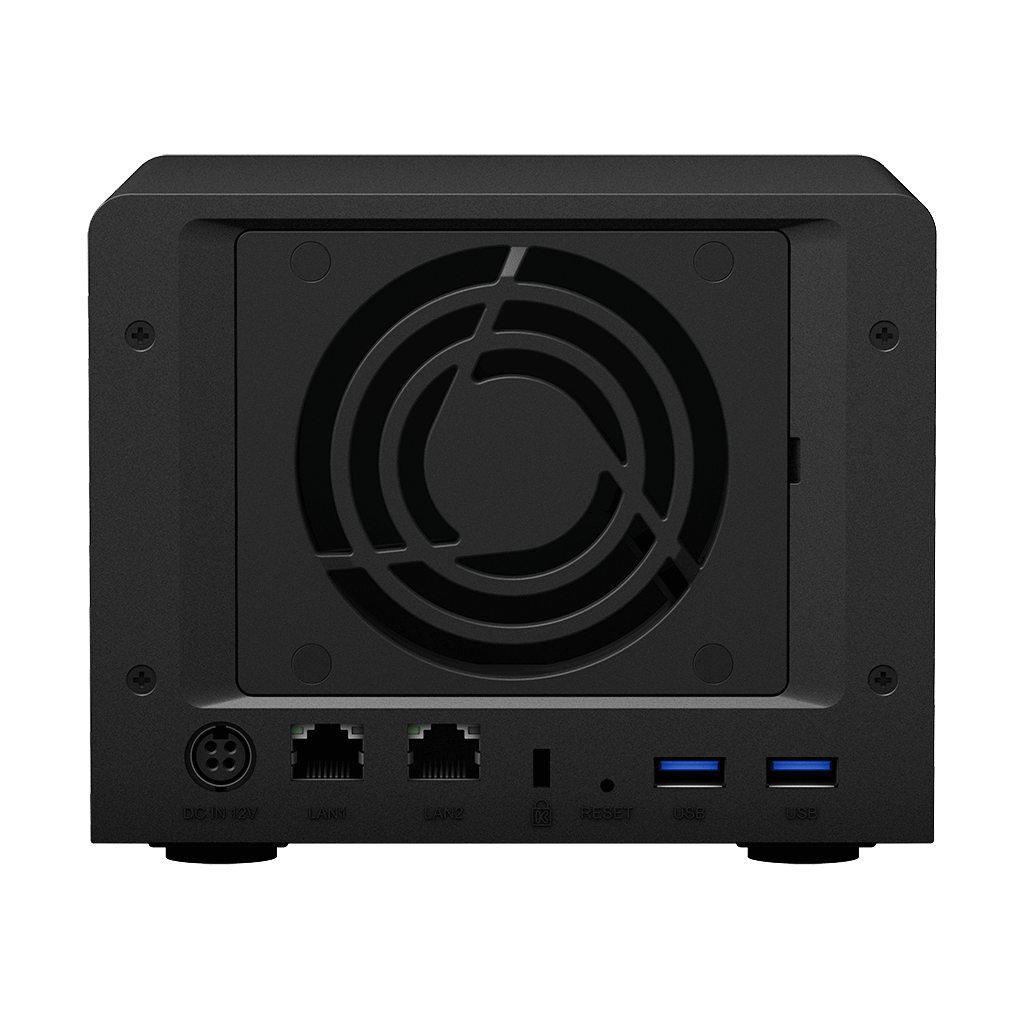

SYNOLOGY Plus series DS620SLIM NAS Back View (I/O ports)

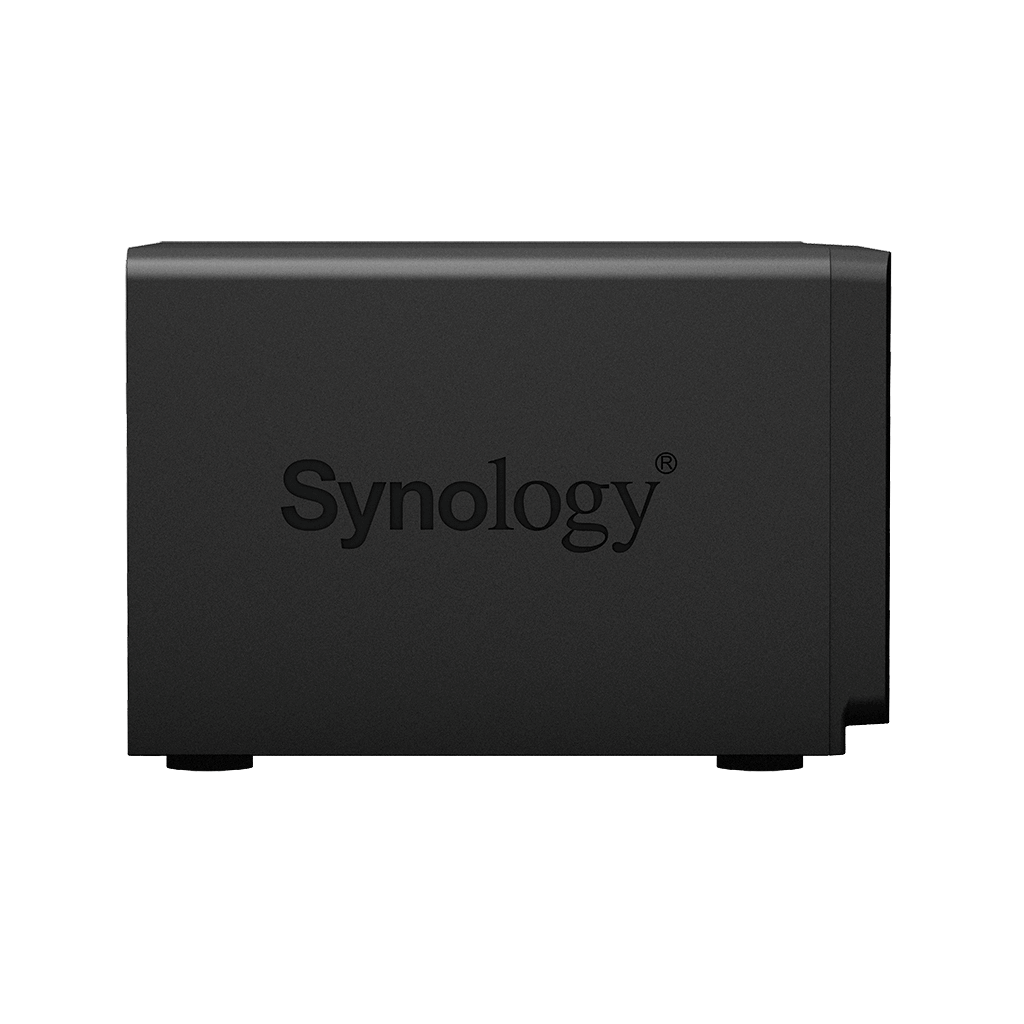

SYNOLOGY Plus series DS620SLIM NAS Side View 3

SYNOLOGY Plus series DS620SLIM NAS Side View 4

SYNOLOGY Plus series DS620SLIM NAS Side View 5

Gallery
Description
Compatibility

Description

Secure digital content with a modern look

DS620slim is a mini 6-bay NAS with a stylish chassis design, perfectly blending in modern workplaces or apartments. Supporting near-instantaneous snapshot technology, DS620slim is an all-around file management solution that fulfills professionals’ needs of advanced data protection.

Specification

Hardware Specifications
CPU	CPU Model	Intel Celeron J3355
	CPU Quantity	1
	CPU Core	2
	CPU Architecture	64-bit
	CPU Frequency	2.0 (base) / 2.5 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	2 GB DDR3 non-ECC SODIMM
	Memory Module Pre-installed	2 GB (2 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	6
	Drive Type	2.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
External Ports	RJ-45 1GbE LAN Port	2
	USB 3.2 Gen 1 Port*	2
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
Appearance	Size (Height x Width x Depth)	121 mm x 151 mm x 175 mm
	Weight	1.4 kg
Others	System Fan	80 mm x 80 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	20.5 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	65 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	34.88 watts (Access) 7.59 watts (HDD Hibernation)
	British Thermal Unit	119.1 BTU/hr (Access) 25.92 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s). Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.
Temperature	Operating Temperature	5°C to 40°C (40°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM EAC
Warranty	2-year hardware warranty
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) In the event that a valid receipt of purchase of Product or Product invoice is not presented, or is apparently erroneous or falsified, the Warranty Period for the presented Product shall commence from the manufacturing date in accordance with Synology's internal records.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Compatibility

✔ Expansion Units:
Not Scalable
✔ General Compatibility:
See the compatible storage drives and accessories for this Synology device (SKU: DS620SLIM):
- Compatible Synology and 3rd-party Storage Drives
- Compatible Accessories
