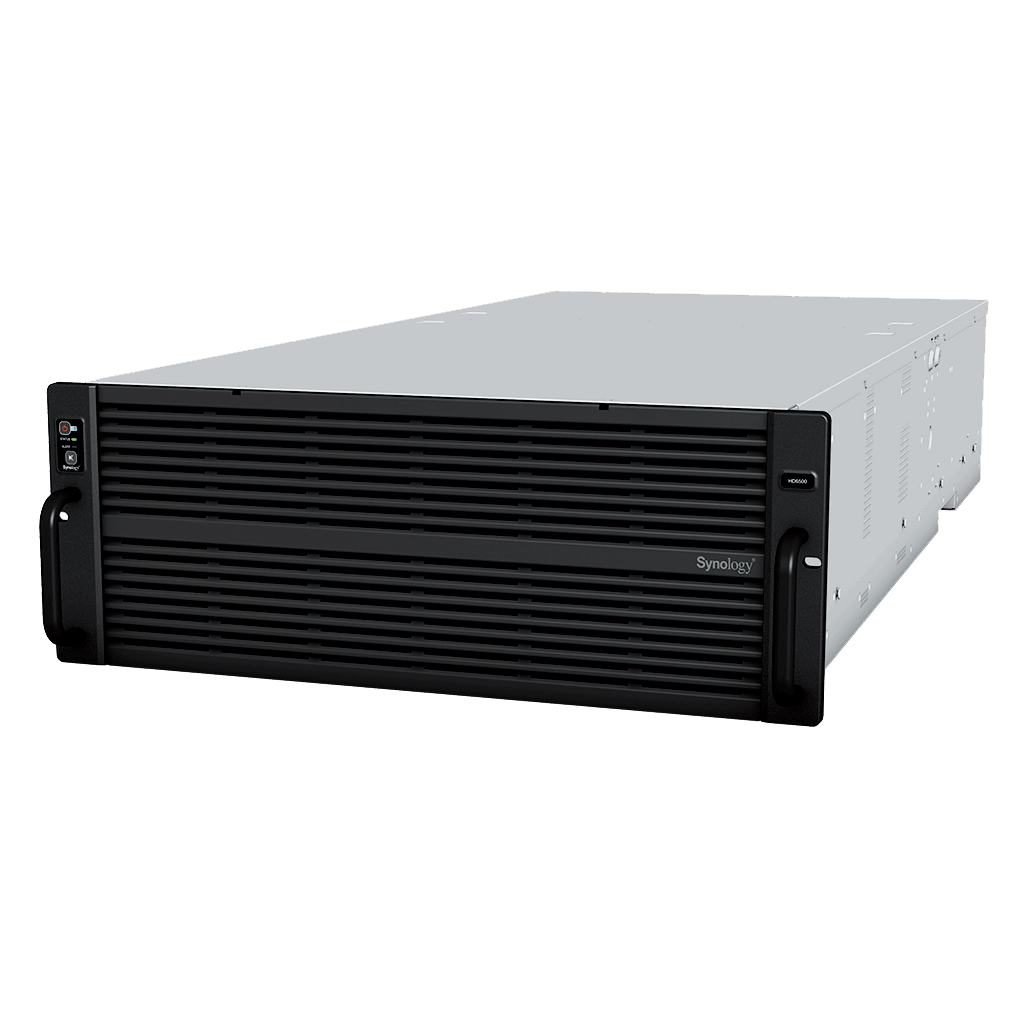

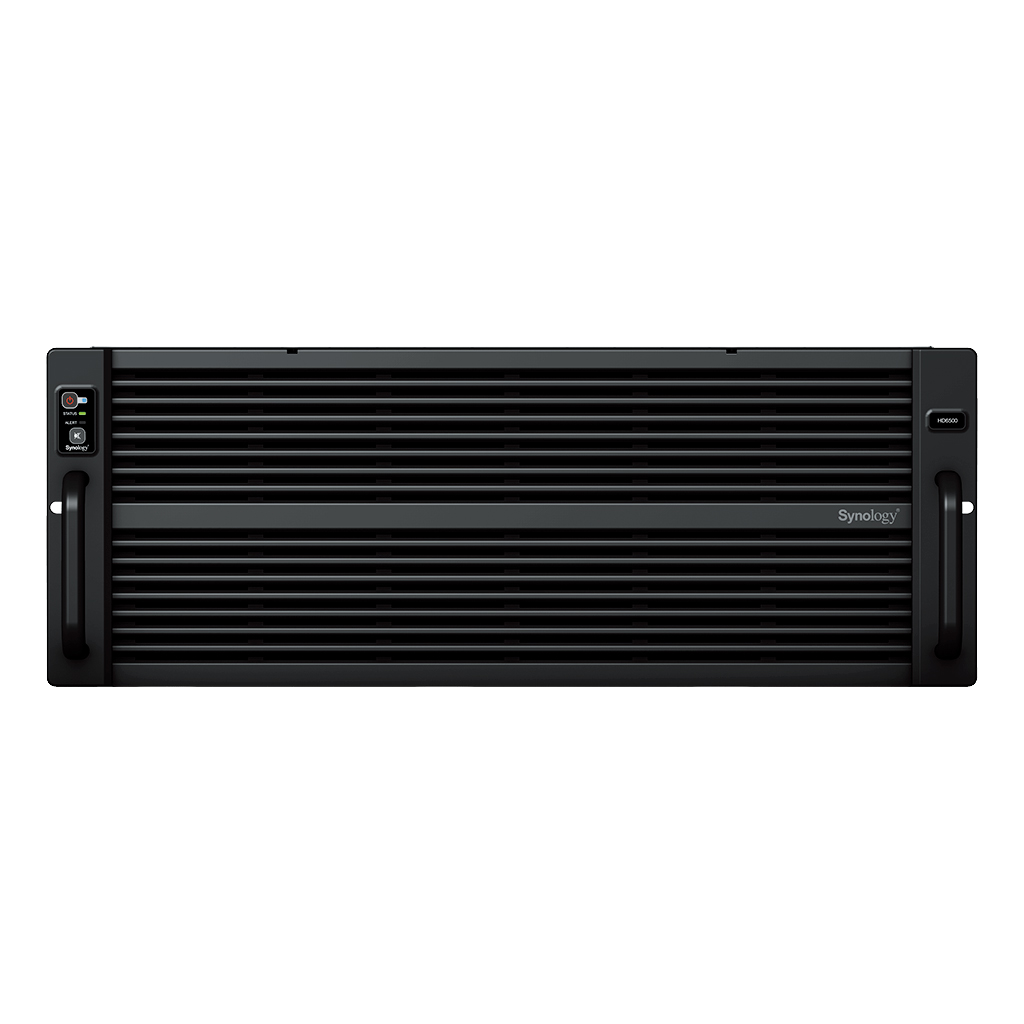

SYNOLOGY High density Series HD6500 NAS Front View

SYNOLOGY High density Series HD6500 NAS Back View (I/O ports)

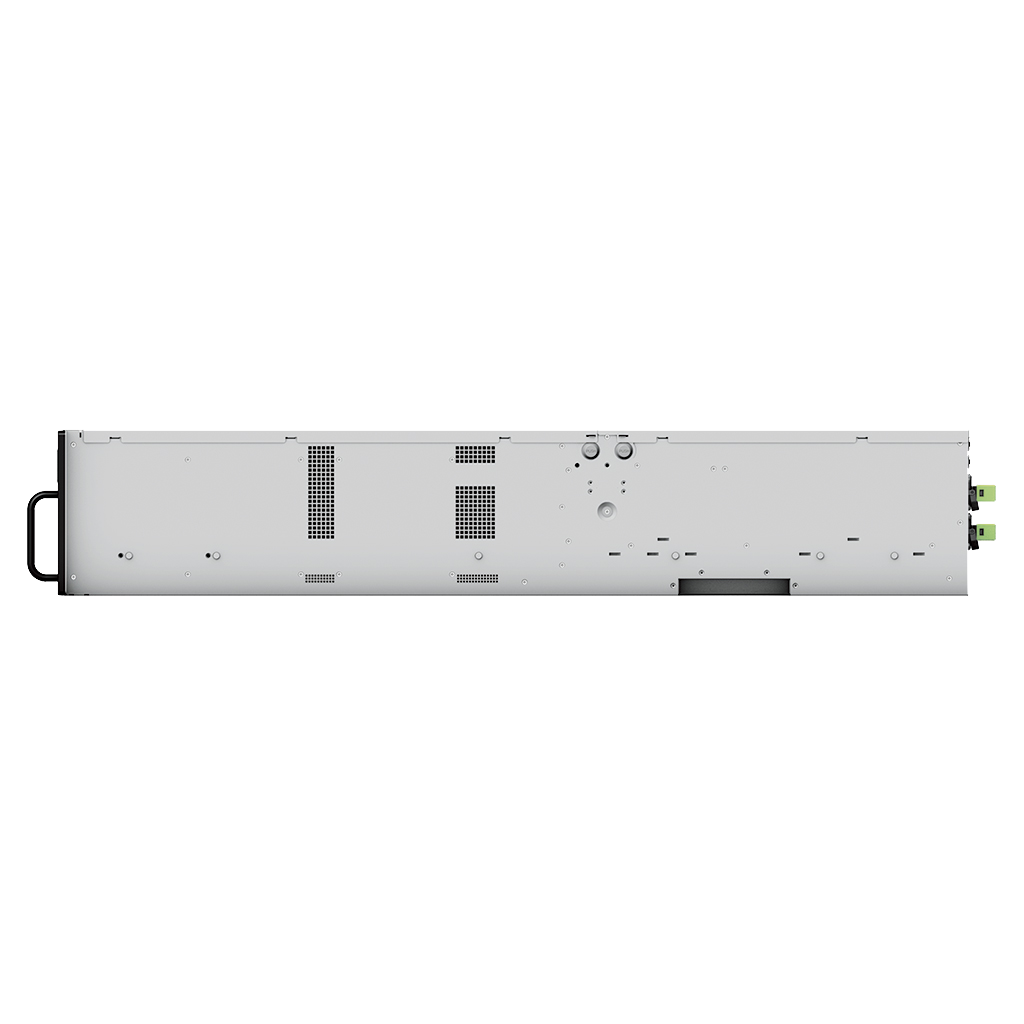

SYNOLOGY High density Series HD6500 NAS Side View 3

SYNOLOGY High density Series HD6500 NAS Side View 4

SYNOLOGY High density Series HD6500 NAS Side View 5

Gallery
Description

Description

A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.

With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.

CPU

2 x 10-core Intel Xeon Silver

Throughput

Over 6,688/6,662MB/s sequential read/write¹

Memory

64 GB DDR4 ECC, expandable to 512 GB

Scalability

Expand to 300 drives with four RX6022sas expansion units

Specification

Hardware Specifications
CPU	CPU Model	Intel Xeon Silver 4210R
	CPU Quantity	2
	CPU Core	10
	CPU Architecture	64-bit
	CPU Frequency	2.4 (base) / 3.2 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	64 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	64 GB (32 GB x 2)
	Total Memory Slots	16
	Maximum Memory Capacity	512 GB (32 GB x 16)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	60
	Maximum Drive Bays with Expansion Unit	300 (RX6025sas x 4)
	SAS multipathing
	Drive Type	3.5" SAS HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Two Synology SATA SSDs are included in the accessory pack for use as system drives. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports	RJ-45 1GbE LAN Port	2
	RJ-45 10GbE LAN Port	2
	Out-of-Band Management LAN Port	1
	Max. Number of LAN Ports	15
	USB 3.2 Gen 1 Port*	2
	Expansion Port	2
	Expansion Port Type	Mini-SAS HD
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. Besides the 5 built-in LAN ports, up to 10 additional LAN ports can be made available by installing compatible network interface cards (sold separately).
PCIe	PCIe Expansion	2 x Gen3 x16 slot (x16 link) 2 x Gen3 x8 slots (x8 link)
Appearance	Form Factor (RU)	4U
	Size (Height x Width x Depth)	176 mm x 482 mm x 1020 mm
	Weight	37.9 kg
	Rack Installation Support*	4-post 19" rack
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	60.8 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	1600 watts
	Redundant Power Supply
	AC Input Power Voltage	200V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	1025.2 watts (Access) 418 watts (HDD Hibernation)
	British Thermal Unit	3495.93 BTU/hr (Access) 1425.38 BTU/hr (HDD Hibernation)
	Notes	Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 8TB HAS5300-8T hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC KC BIS UL
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Synology SATA SSD X 2 Rail Kit Sliding: RKS-03 X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Synology HD6500 ,60-Bay Intel Xeon Silver 4210R ,64GB DDR4 ,4U Rackmount Server ,2 x Gen3 x16 slot (x16 link)

$33,060.00

SKU: HD6500

Select quantity

Ask For Availability

Synology Compatibility Check

See the compatibility storage drives and accessories for this Synology device (SKU: HD6500):

Expansion Units Compatibility

Scalable up to 300 drives with RX6022sas x 4

Check available Synology NAS Expansion Units HERE
