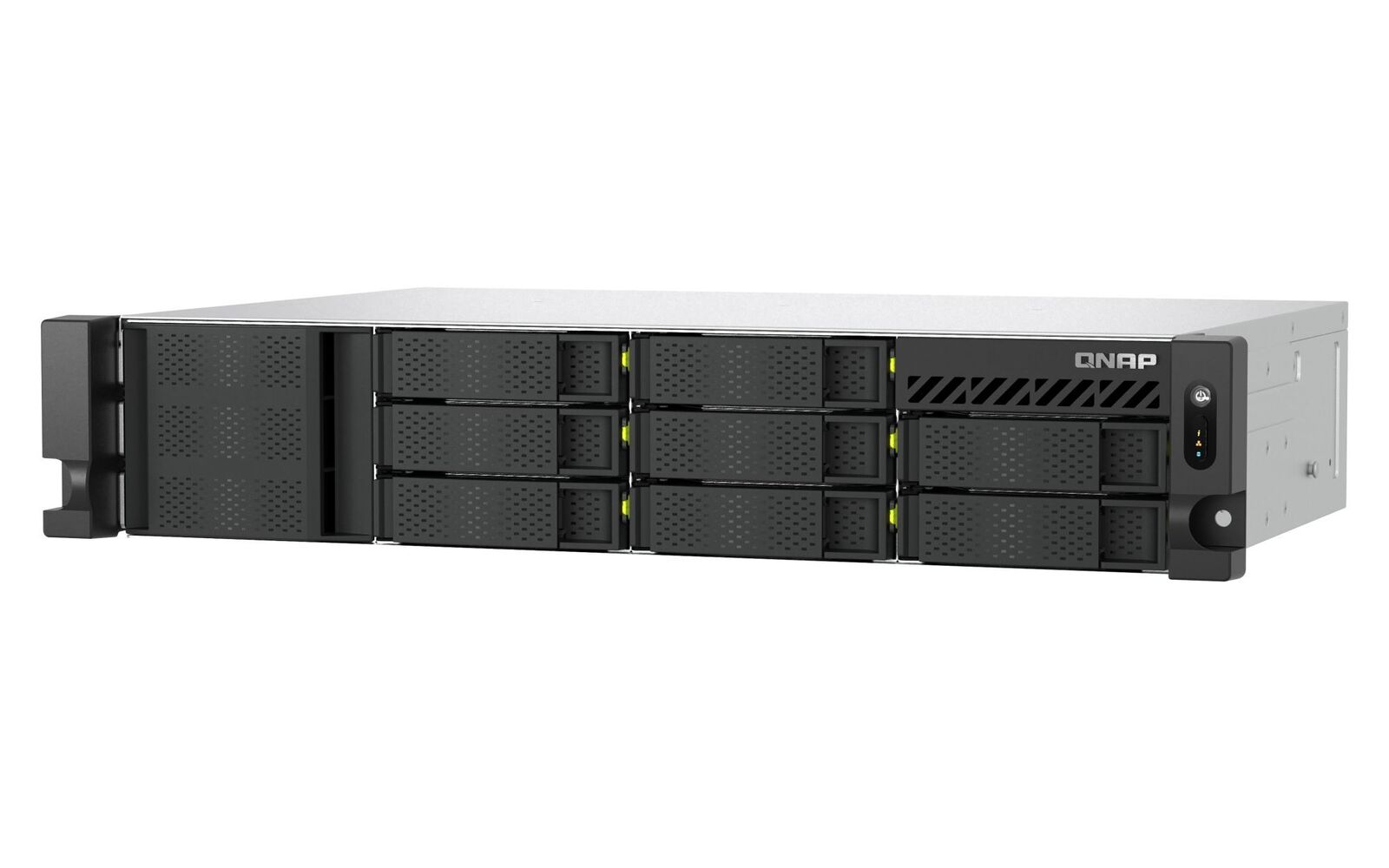

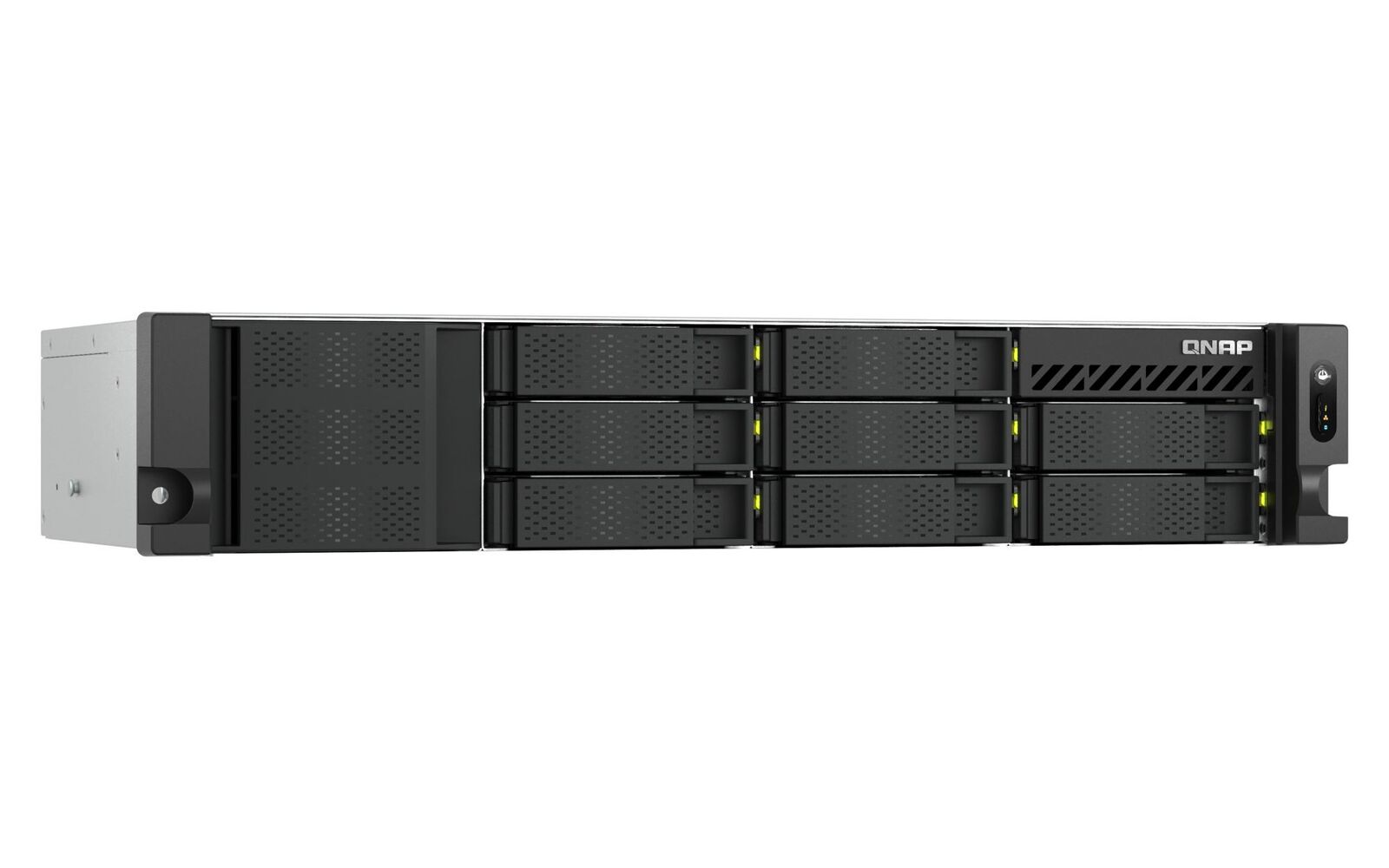

QNAP TS-h1065eU-RP-8G
A compact 2U rackmount NAS for small and medium-sized businesses, combining eight 3.5-inch SATA drive bays, two E1.S/M.2 NVMe PCIe slots, dual 2.5GbE ports, PCIe expansion and dual 300W power supplies in a 297.4mm-deep chassis.
What is the QNAP TS-h1065eU-RP-8G?
The TS-h1065eU-RP-8G is a 2U short-depth NAS powered by an Intel(R) 4-core processor. It includes 8GB DDR5 memory, eight front 3.5-inch drive bays, two rear E1.S/M.2 NVMe Gen3 x1 slots, dual 2.5GbE connectivity and a PCIe Gen3 x2 expansion slot.
Short-Depth Design for Flexible Deployment
Compact rackmount storage for environments where cabinet depth is limited.
The TS-h1065eU-RP-8G has a chassis depth of 297.4mm, approximately 12 inches, making it suitable for small cabinets and other space-constrained environments.
Supplied deployment examples include factories, small offices, surveillance rooms, audiovisual rooms and in-vehicle applications.
Flexible Storage and Expansion
Combine SATA storage, E1.S or M.2 NVMe media and PCIe expansion in one short-depth chassis.

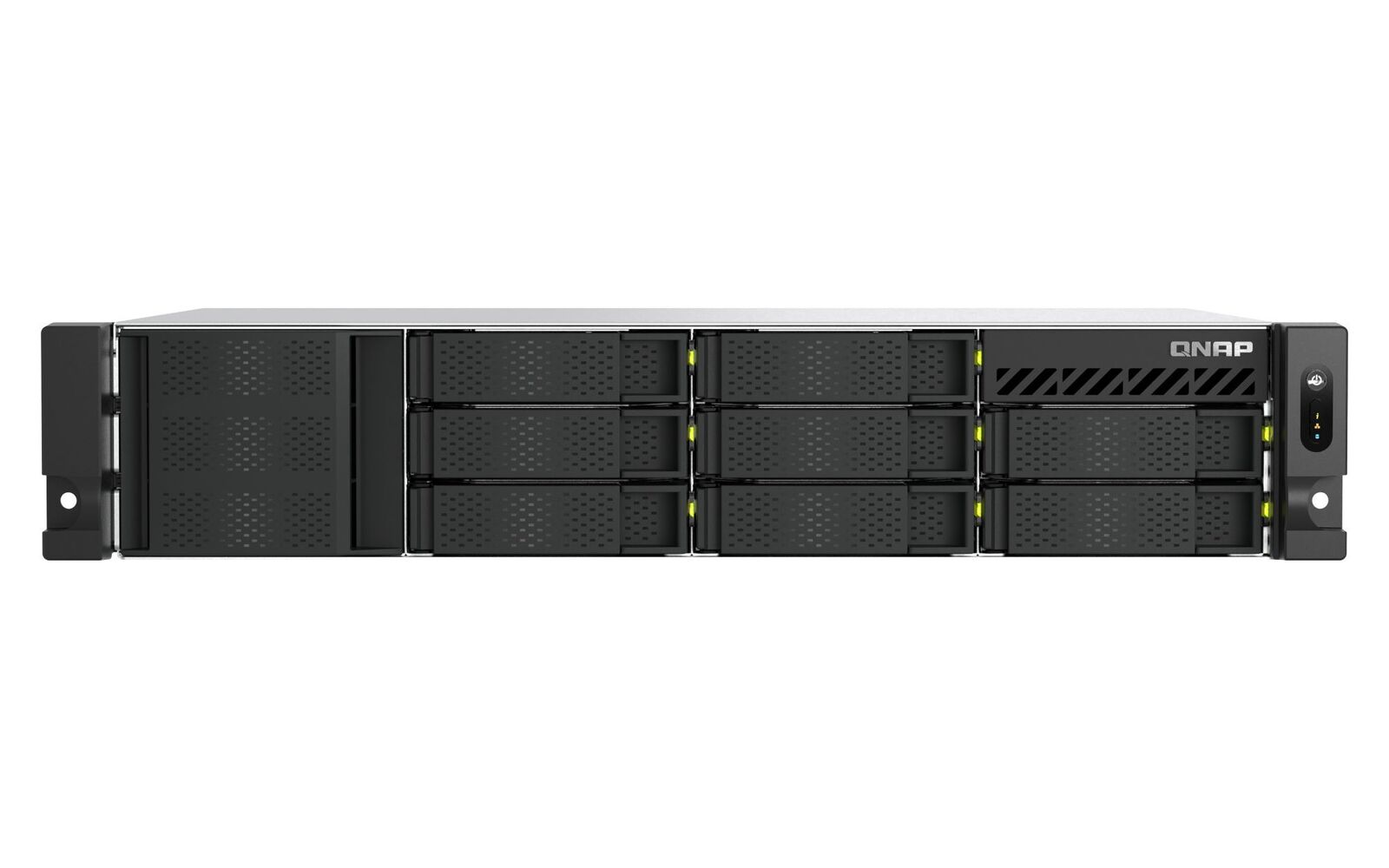

Eight SATA Drive Bays
The eight front bays support 3.5-inch SATA hard disk drives and 2.5-inch SATA solid state drives.

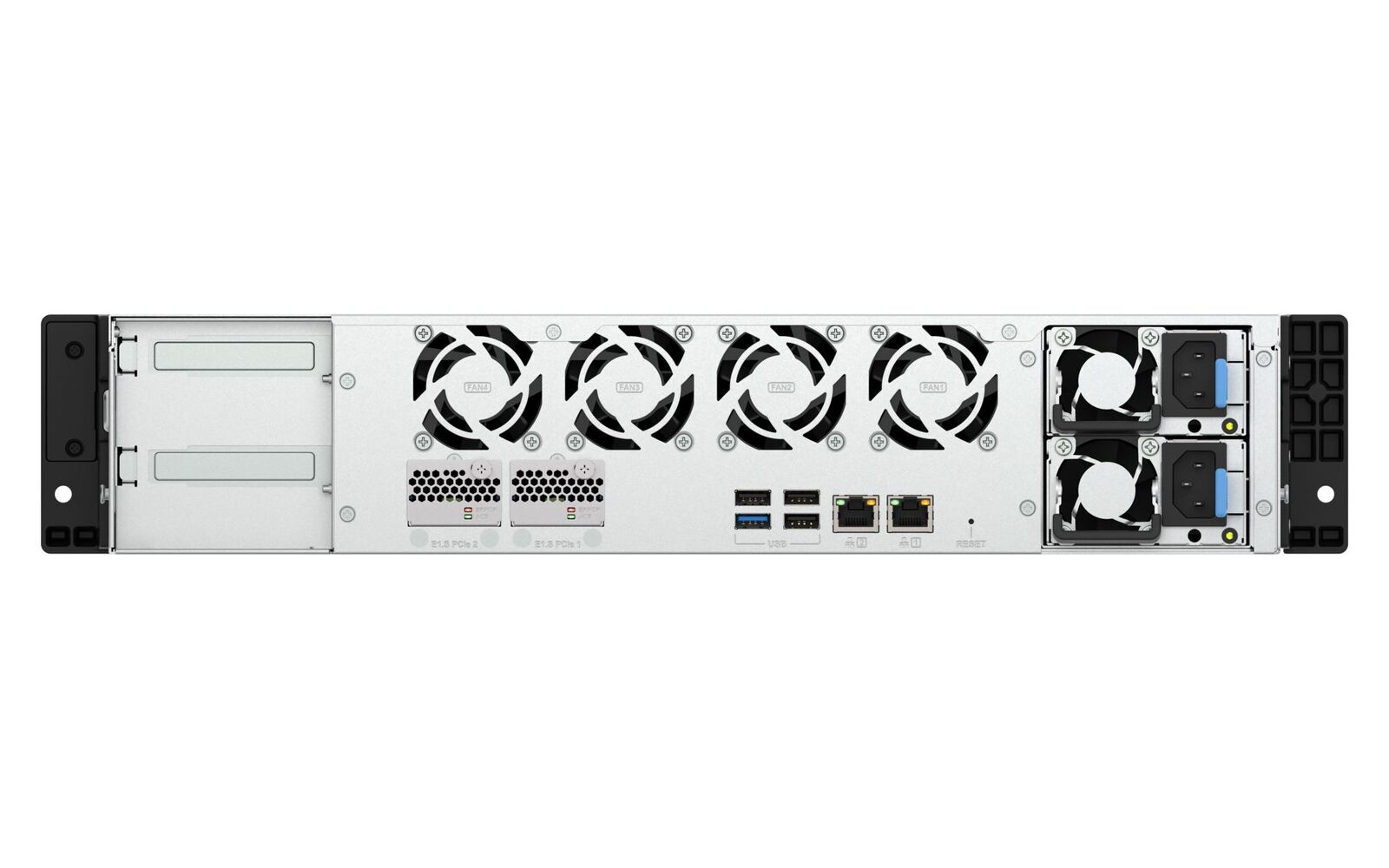

Two E1.S/M.2 NVMe Slots
Two rear E1.S/M.2 NVMe Gen3 x1 slots support E1.S NVMe SSDs or M.2 NVMe SSDs for flexible configuration.
PCIe Gen3 Expansion
The PCIe Gen3 x2 slot supports compatible 5GbE or 10GbE network cards and QM2 expansion cards.
DDR5 Memory and QuTS hero
Memory and data-protection features designed to support reliable multitasking storage.
8GB DDR5 Memory
Includes 8GB SODIMM DDR5 memory and supports a maximum of 16GB using one 16GB module.
In-Band ECC Support
The supplied product information states that DDR5 memory supports In-Band ECC for data reliability.
QuTS hero Operating System
QuTS hero uses the ZFS file system and provides self-healing of static data, WORM, data deduplication and snapshot backup features.
Networking and Power Continuity
Standard multi-Gigabit connectivity with upgrade options and dual power supplies.
Dual 2.5GbE Ports
Two 2.5GbE ports support 2.5G, 1G, 100M and 10M network speeds, with Port Trunking or SMB Multichannel available to accelerate transfers and backups.
Optional 5GbE or 10GbE
5GbE and 10GbE connectivity can be added through a compatible network adapter, including expansion through the PCIe slot.
Redundant Power Supplies
Two 300W power supply units help reduce the risk of interruption caused by an unexpected power supply failure.
Long-Term Availability and Recognition
Extended product availability and a supplied industry award reference.
Long-term supply: The supplied product information states that the TS-h1065eU-RP will be available and supported by QNAP for an extended period, up to 2031.
2026 MSP Today Product of the Year Award: The supplied content states that the QuTS hero operating system was honoured with this award.
Frequently Asked Questions
Quick answers about the QNAP TS-h1065eU-RP-8G.
How many drive bays does the TS-h1065eU-RP-8G have?
It has eight front 3.5-inch drive bays and two rear E1.S/M.2 NVMe Gen3 x1 slots.
Which drive types are supported?
The 3.5-inch bays support 3.5-inch SATA hard disk drives and 2.5-inch SATA solid state drives. The rear slots support E1.S NVMe SSDs and M.2 NVMe SSDs.
How much memory is installed?
This configuration includes 8GB SODIMM DDR5 memory and supports up to 16GB.
Does it include 10GbE networking?
No built-in 10GbE port is listed. The supplied information states that 10GbE can be added through a compatible network adapter or PCIe expansion card.
What is the chassis depth?
The chassis measures 297.4mm deep, approximately 12 inches.
Does the NAS have redundant power supplies?
Yes. It includes two 300W power supply units.
What is the standard warranty?
The supplied datasheet lists a standard three-year warranty.
