QNAP TS-h1655XeU-RP-8G

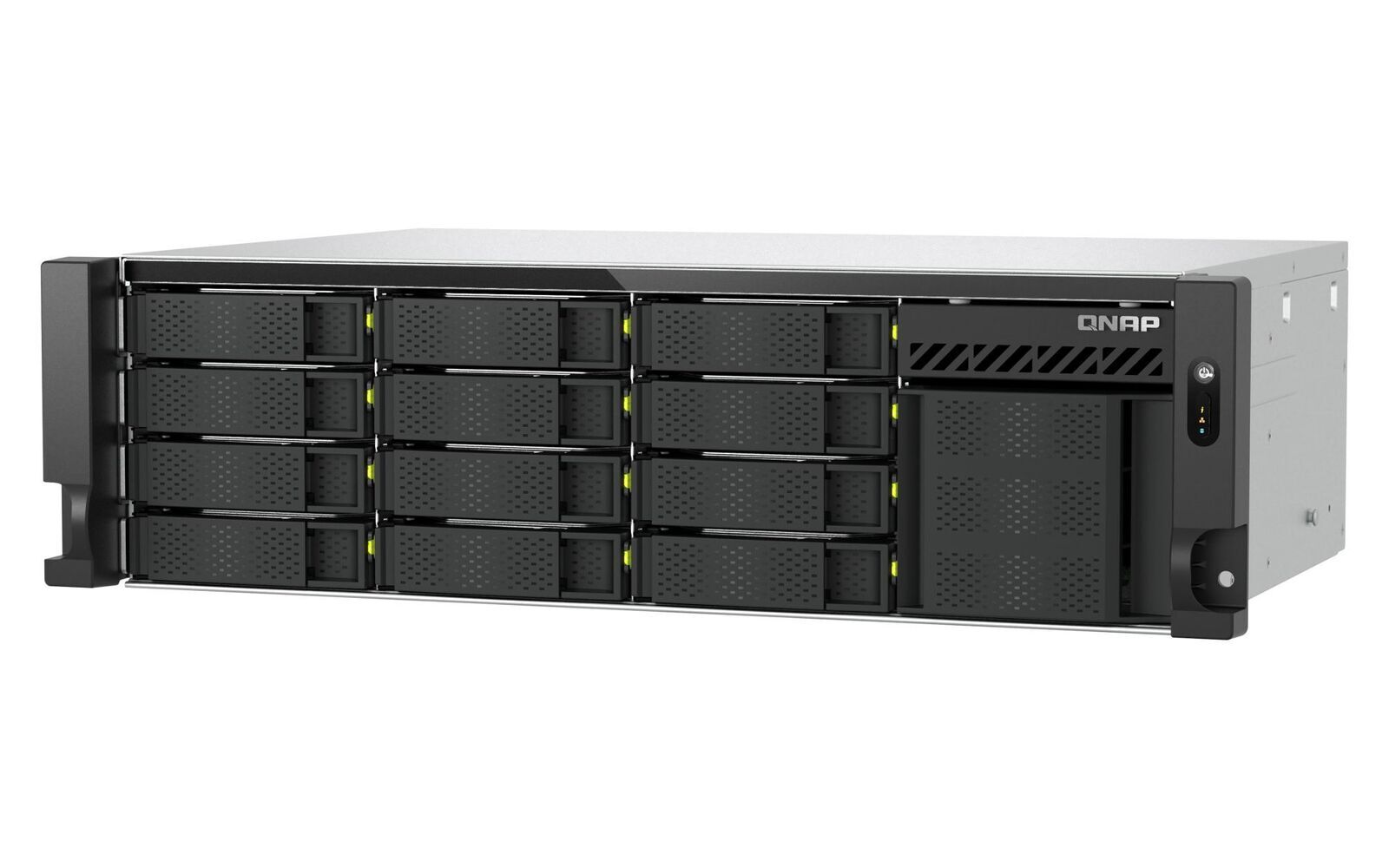

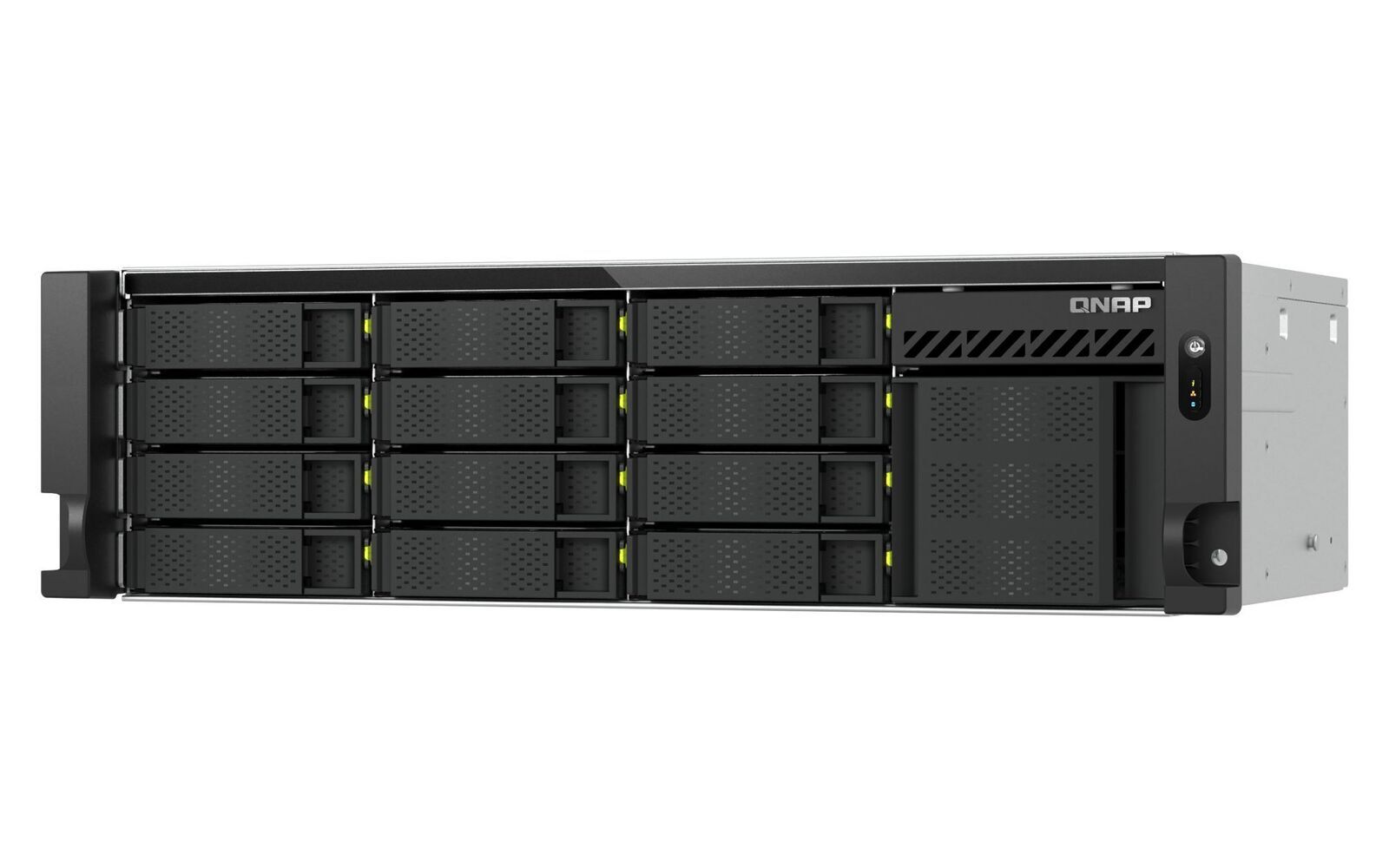

The QNAP TS-h1655XeU-RP-8G is a short-depth 10GbE ZFS NAS that combines twelve 3.5-inch SATA bays, four E1.S/M.2 PCIe NVMe slots, an Intel® Atom® C5125 8-core processor and redundant power supplies in a compact 3U rackmount chassis.
What is the QNAP TS-h1655XeU-RP-8G?
The TS-h1655XeU-RP-8G is a hybrid-storage rackmount NAS designed for virtualization, backup and data-intensive workloads. It provides twelve SATA drive bays, four E1.S/M.2 PCIe Gen 3 x2 slots, built-in 10GBASE-T and dual 2.5GbE networking, two PCIe Gen 3 x4 slots and redundant 300W power supplies.
Compact 3U Short-Depth Design
High-capacity rackmount storage for installations where rack depth is limited.
With a chassis depth of approximately 29.6cm, the TS-h1655XeU-RP reduces rack depth by 38% while retaining a 3U form factor. Its compact design suits space-constrained server rooms, small business offices, multimedia rooms and security monitoring systems.
The reduced depth also leaves additional room in standard racks for cable organisation or airflow optimisation.
Hybrid Storage and ZFS Data Protection
Flexible SATA and NVMe storage combined with the QuTS hero operating system.
12 SATA Drive Bays
Twelve 3.5-inch SATA bays support 3.5-inch hard drives, 2.5-inch hard drives and 2.5-inch solid state drives.
Four E1.S/M.2 NVMe Slots

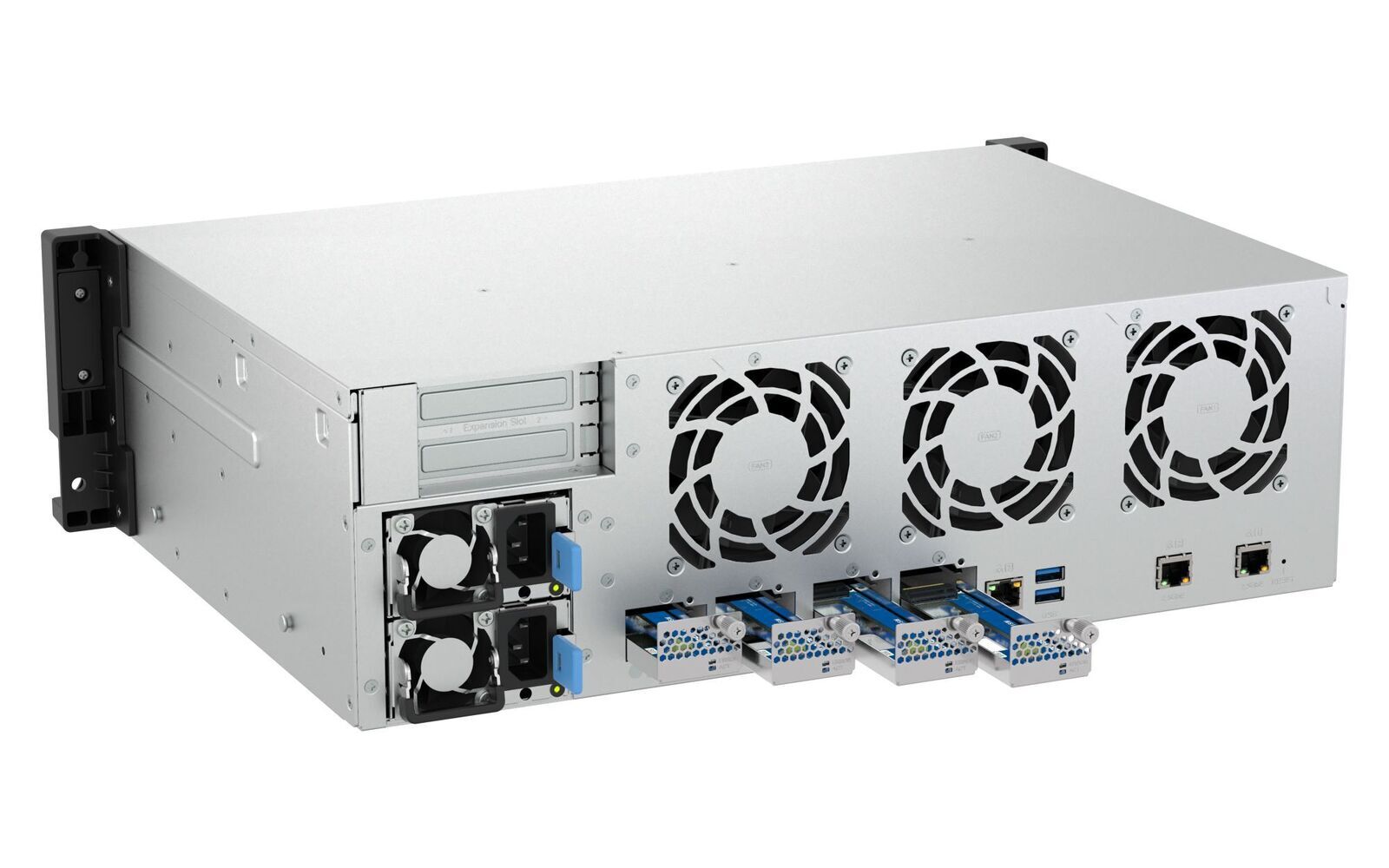

Four PCIe Gen 3 x2 slots support E1.S SSDs or M.2 2280 PCIe SSDs through an M.2 adapter, enabling SSD caching and storage acceleration.
QuTS hero
The ZFS-based operating system provides data integrity features including self-healing, WORM, deduplication and SnapSync disaster recovery.
Processor, Memory and Acceleration
Eight-core processing with expandable memory and hardware acceleration.
Intel® Atom® 8-Core Processor
The Intel® Atom® C5125 8-core 2.8GHz processor supports demanding storage, virtualization and data-intensive applications.
Expandable DDR4 Memory
Includes 8GB DDR4 non-ECC memory and supports up to 64GB using two 32GB modules. ECC memory is supported, but ECC and non-ECC memory cannot be mixed.
QAT and AES-NI
Intel® QAT accelerates data compression, decompression and SSL/IPsec encryption and decryption. The AES-NI encryption engine supports hardware-accelerated AES encryption.
Networking and PCIe Expansion
Built-in multi-gigabit connectivity with room for additional networking and storage interfaces.
Built-In 10GbE and 2.5GbE
One 10GBASE-T port and two 2.5GbE ports support high-speed file access and Port Trunking with compatible network switches.
Upgradeable to 25GbE
Optional network adapters can add 5GbE or 25GbE connectivity for expanded device access and higher bandwidth.
Dual PCIe Gen 3 Slots
Two PCIe Gen 3 x4 slots support compatible 5/10/25GbE network adapters, QM2 cards or Fibre Channel cards.
Storage Expansion and Reliable Operation
Scale capacity and support dependable rackmount deployment.
Scalable Storage
Compatible QNAP JBOD expansion units can be connected to increase storage capacity for backup, virtualization and other workloads.
Redundant Power Supplies
Two minimum 300W power supply units help maintain dependable operation if one power supply becomes unavailable.
Virtualization Support
The supplied product information identifies VMware® and Hyper-V® virtualization as supported demanding workloads, and the hardware specifications list SR-IOV support.
Frequently Asked Questions
Quick answers about the QNAP TS-h1655XeU-RP-8G.
Does the TS-h1655XeU-RP-8G include hard drives?
No. The system is supplied without hard drives.
How many storage bays does it have?
It has twelve 3.5-inch SATA bays and four E1.S/M.2 PCIe Gen 3 x2 slots.
What network ports are built in?
It includes one 10GBASE-T port and two 2.5GbE ports.
How much memory is installed and supported?
This configuration includes 8GB DDR4 non-ECC memory and supports up to 64GB across two SODIMM slots. ECC memory is supported, but ECC and non-ECC modules cannot be mixed.
Does it support PCIe expansion?
Yes. It provides two PCIe Gen 3 x4 slots for compatible network adapters, QM2 cards or Fibre Channel cards.
What is the chassis depth?
The supplied specifications list a depth of 297mm, while the product description rounds this to 29.6cm.
Does it have redundant power supplies?
Yes. It includes two minimum 300W power supply units.
What is the standard warranty?
The supplied datasheet lists a three-year standard warranty.
Memory installation note: For dual-DIMM configurations, use a pair of identical DDR4 modules. Use supported QNAP memory modules and refer to the hardware user manual before installation.
