A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.

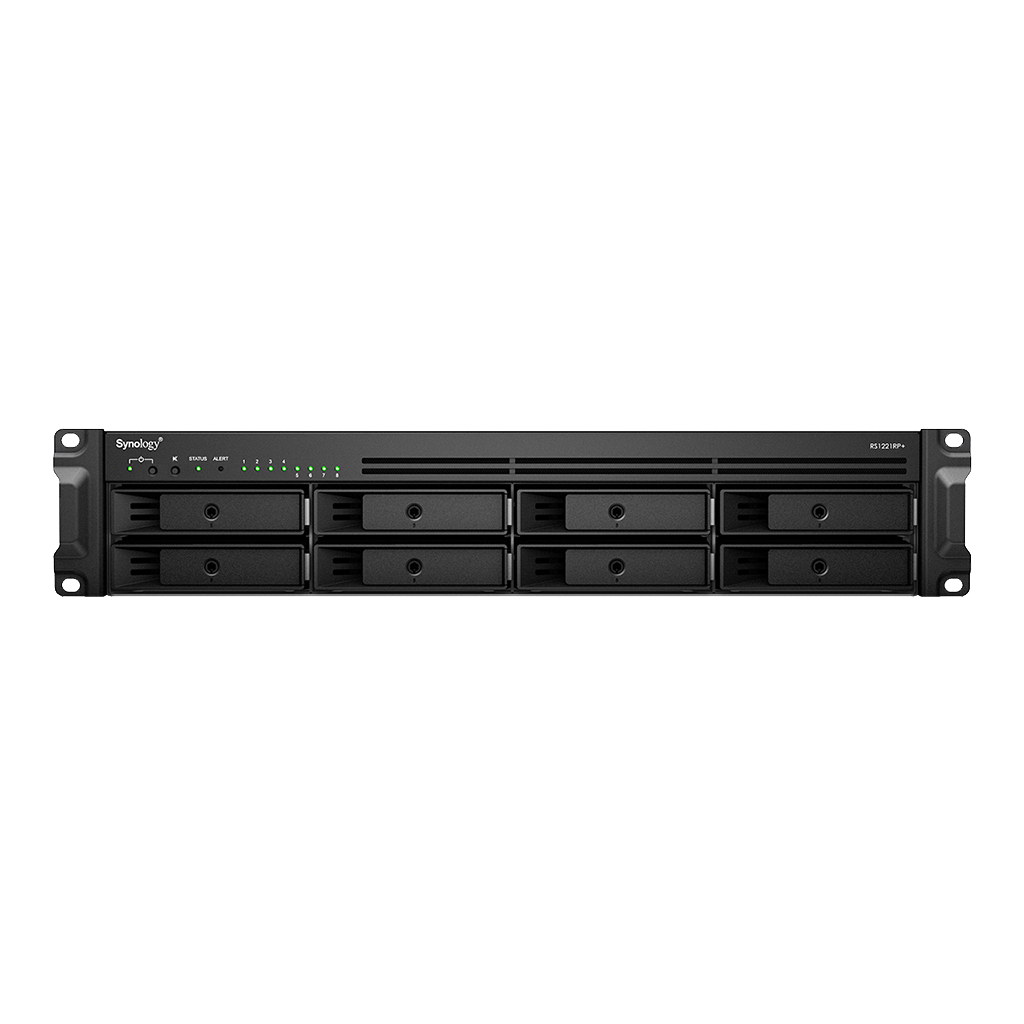

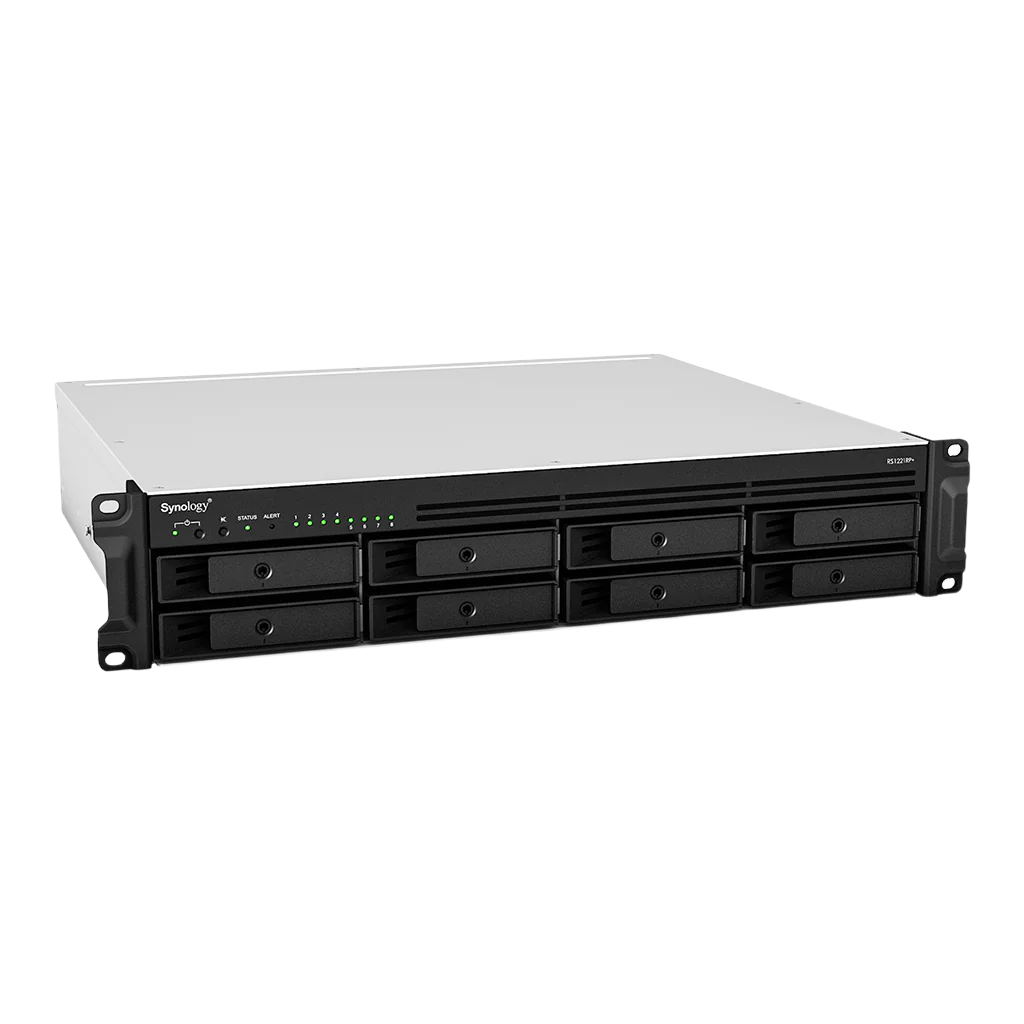

The RS1221RP+/RS1221+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read, the RS1221RP+/RS1221+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.
Compute
AMD Ryzen™ V1500B quad-core 2.2 GHz
Memory
4 GB ECC DDR4 Up to 32 GB
Compact
30cm depth (38cm for RP model)
Specification
Hardware Specs
|
Hardware Specifications
|
RS1221+
|
|
|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine |
|
|
| Memory | System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
| Storage | Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 12 (RX418 x 1) | |
| Drive Type |
|
|
| Hot Swappable Drive* |
|
|
| External Ports | RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | eSATA | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 306.6 mm | |
| Weight | 6.9 kg | |
| Rack Installation Support* |
|
|
| Notes | The rail kit is sold separately | |
| Others | System Fan | 80 mm x 80 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Power Recovery |
|
|
| Noise Level* | 37.8 dB(A) | |
| Scheduled Power On / Off |
|
|
| Wake on LAN / WAN |
|
|
| Power Supply Unit / Adapter | 250 watts | |
| Redundant Power Supply | - | |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 49.89 watts (Access) 22.64 watts (HDD Hibernation) |
|
| British Thermal Unit | 170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
|
|
| Warranty | 3-year hardware warranty, extendable to 5 years | |
| Environment | RoHS Compliant | |
| Packaging Content |
|
|
