Fast storage with outstanding computing power

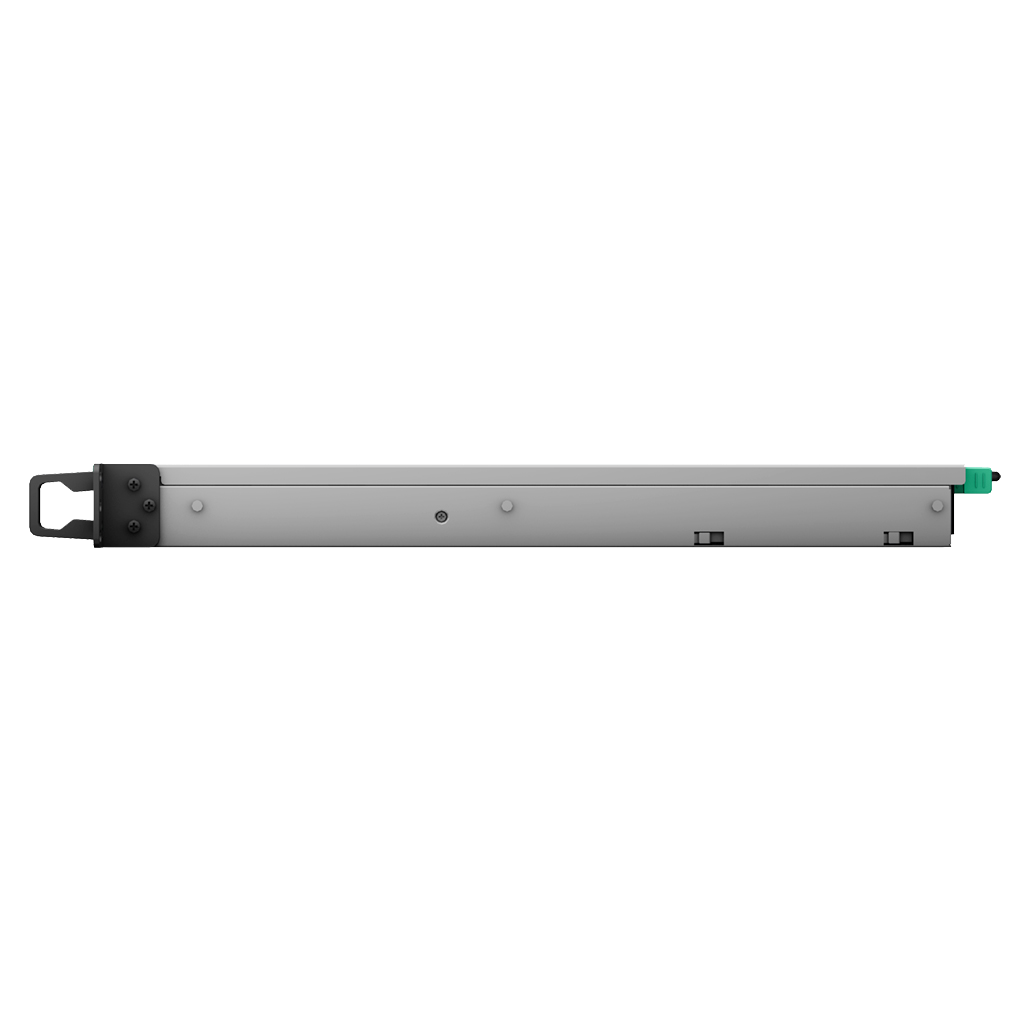

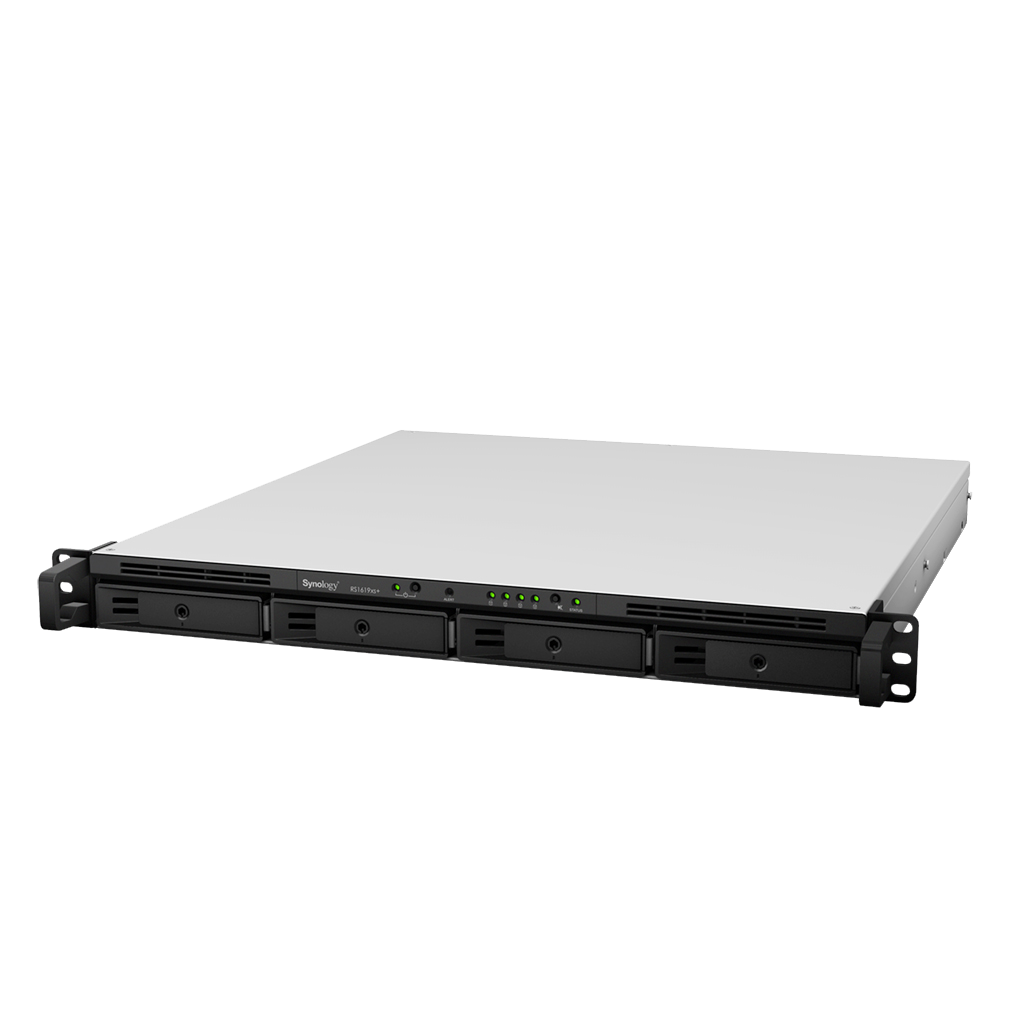

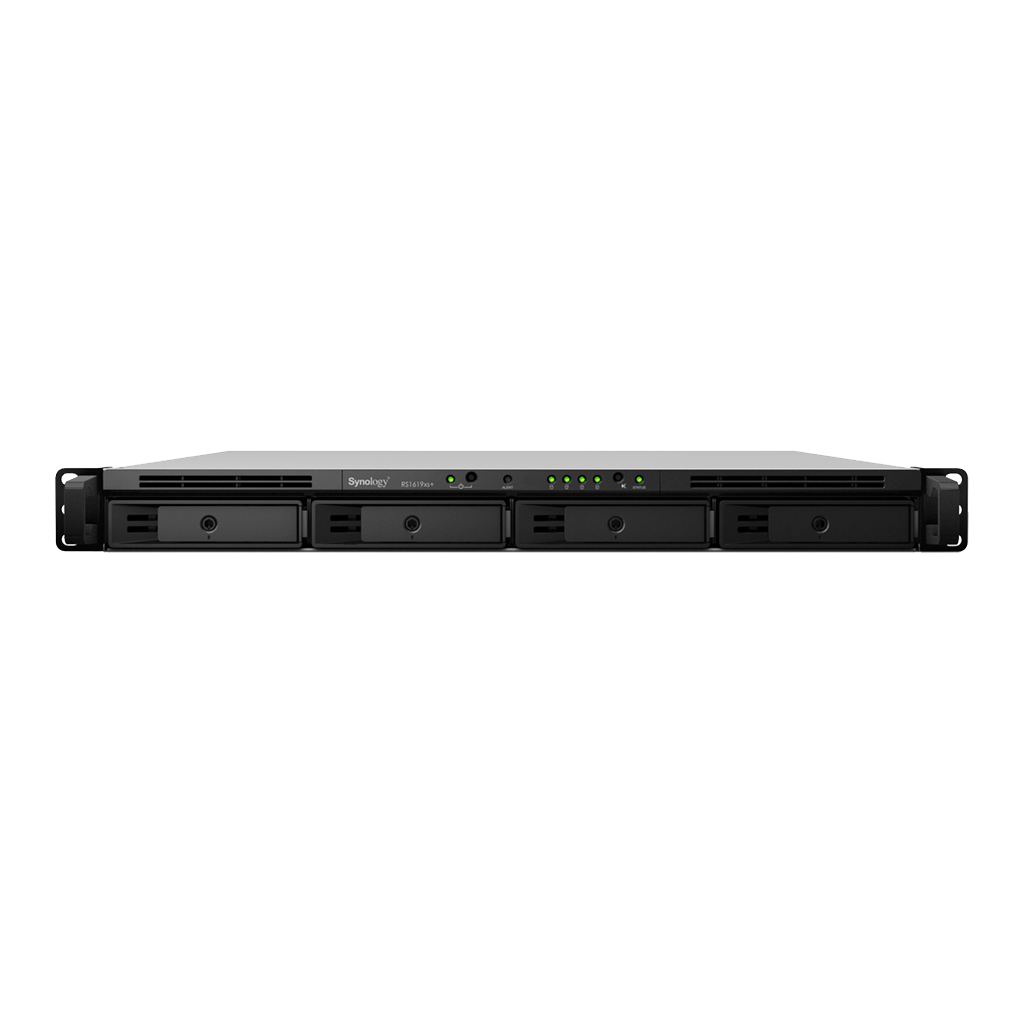

RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.
Specification
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | Intel Xeon D-1527 |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine |
|
|
|
Memory
|
System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 16 (RX1217 x 1) | |
| M.2 Drive Slots | 2 (NVMe & SATA) | |
| Drive Type |
|
|
| Hot Swappable Drive* |
|
|
| Notes | The hot swappable drive feature is not supported by M.2 SSD slots. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Infiniband | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x8 link) |
|
Appearance
|
Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 518.6 mm | |
| Weight | 8.16 kg | |
| Rack Installation Support* | 4-post 19" rack | |
| Notes | The rail kit is sold separately | |
|
Others
|
System Fan | 40 mm x 40 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Power Recovery |
|
|
| Noise Level* | 39.3 dB(A) | |
| Scheduled Power On / Off |
|
|
| Wake on LAN / WAN |
|
|
| Power Supply Unit / Adapter | 150 watts | |
| Redundant Power Supply |
|
|
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 68.68 watts (Access) 34.78 watts (HDD Hibernation) |
|
| British Thermal Unit | 234.35 BTU/hr (Access) 118.67 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
