Streamline your data management

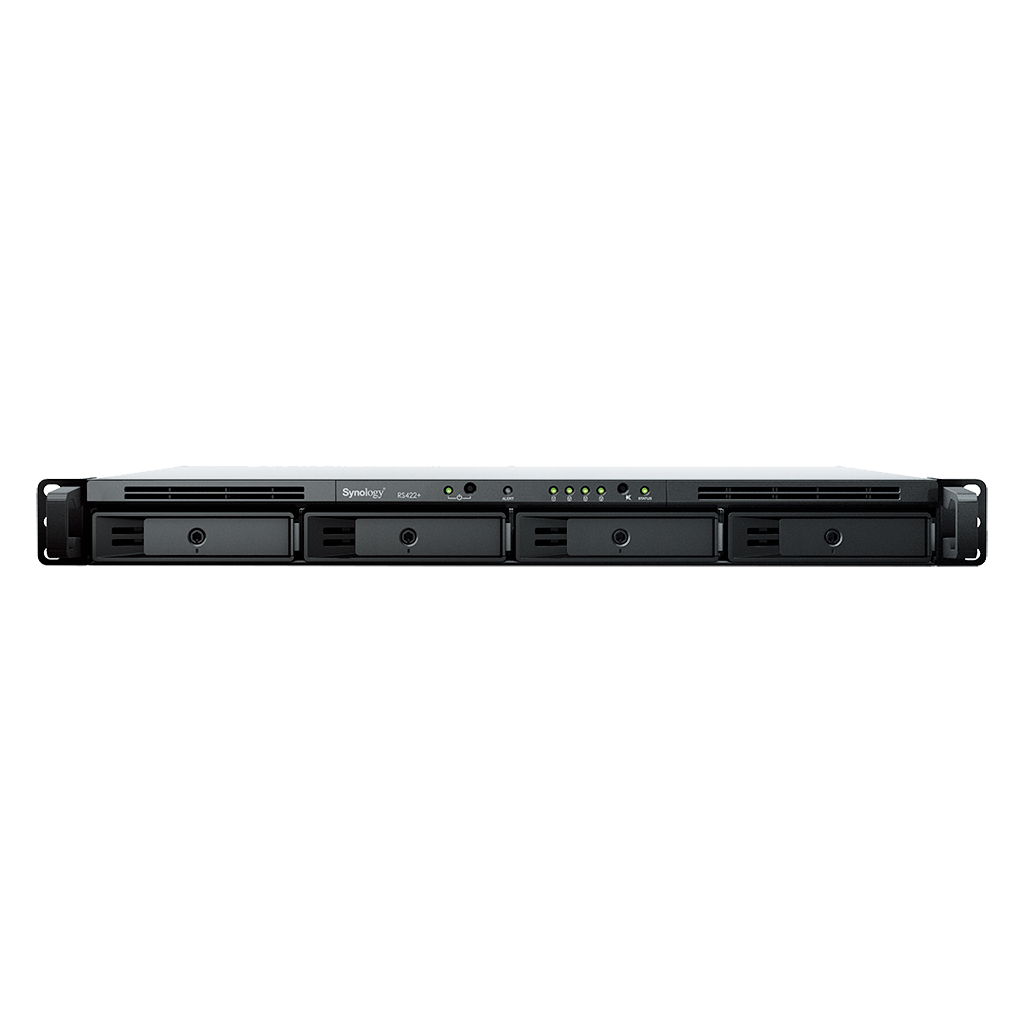

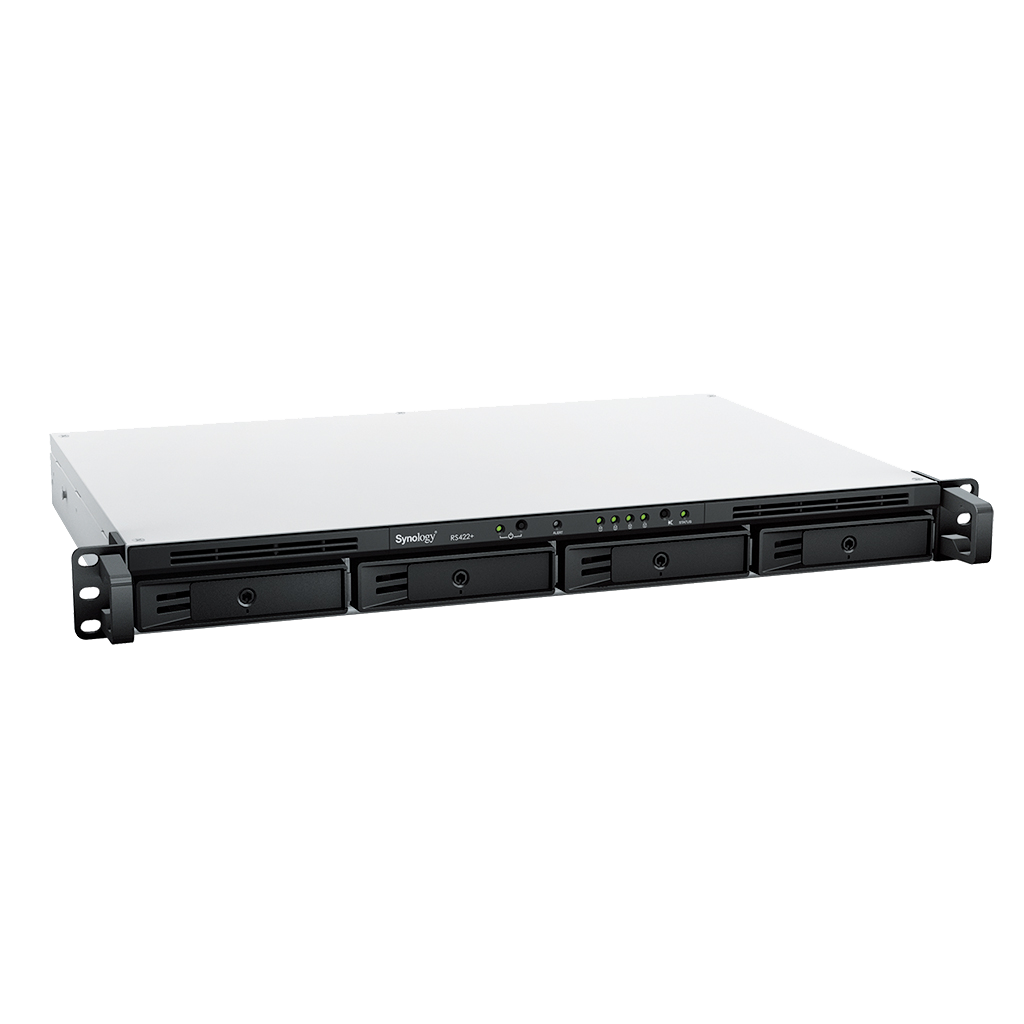

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs
Form Factor
Depth of just 327.5 mm with handles
Connectivity
Built-in dual 1GbE ports with easy 10GbE option
File Integrity
ECC memory prevents data corruption
Specification
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 | |
| CPU Core | 2 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.6 (base) / 3.1 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 2 GB DDR4 ECC |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | |
|
Storage
|
Drive Bays | 4 |
| Drive Type |
|
|
| Hot Swappable Drive* |
|
|
|
External Ports
|
RJ-45 1GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port* | 1 | |
| Notes |
|
|
|
PCIe
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
|
Appearance
|
Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 478 mm x 327.5 mm | |
| Weight | 4.38 kg | |
| Rack Installation Support* |
|
|
| Notes | The rail kit is sold separately | |
|
Others
|
System Fan | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode |
|
|
| Power Recovery |
|
|
| Noise Level* | 28.5 dB(A) | |
| Scheduled Power On / Off |
|
|
| Wake on LAN / WAN |
|
|
| Power Supply Unit / Adapter | 100 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 37.93 watts (Access) 13.43 watts (HDD Hibernation) |
|
| British Thermal Unit | 129.42 BTU/hr (Access) 45.83 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with extended warranty | |
| Notes |
|
|
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
