12-bay scalable 2U enterprise storage

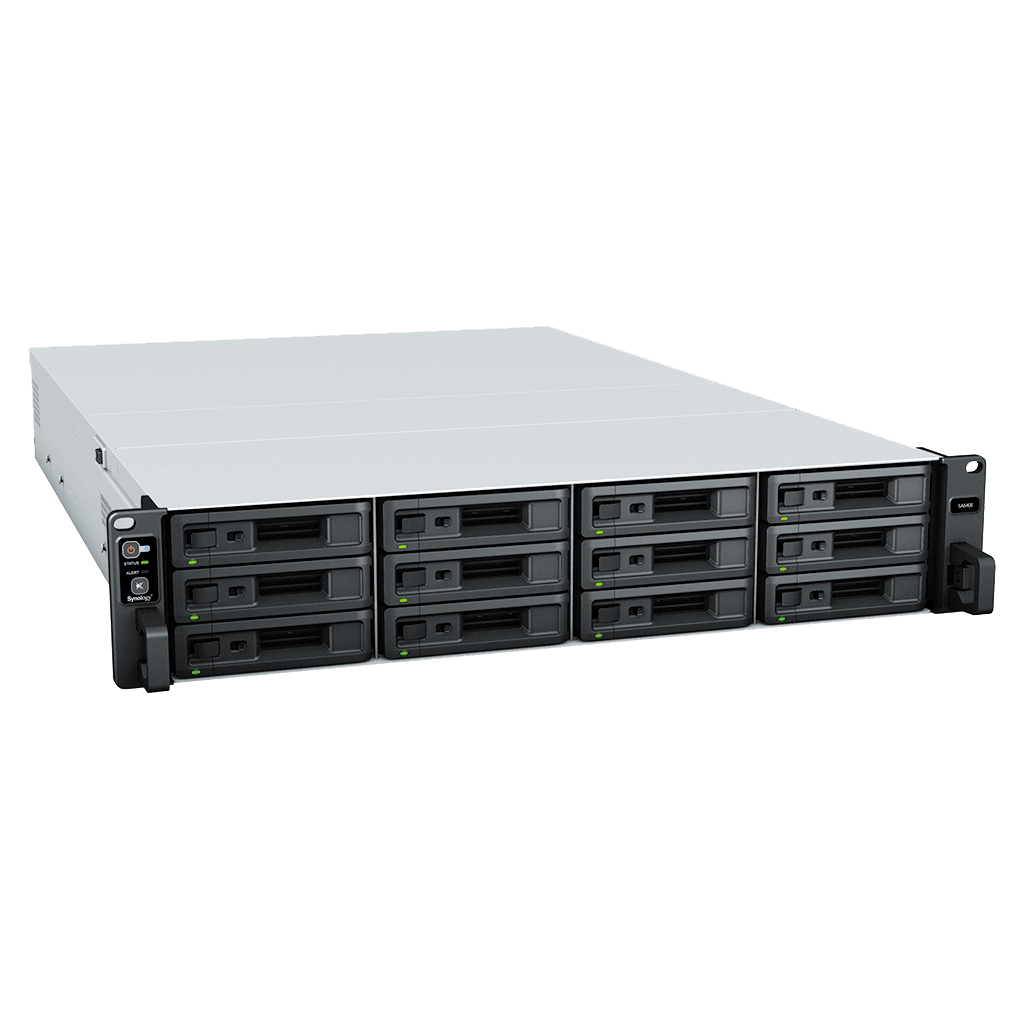

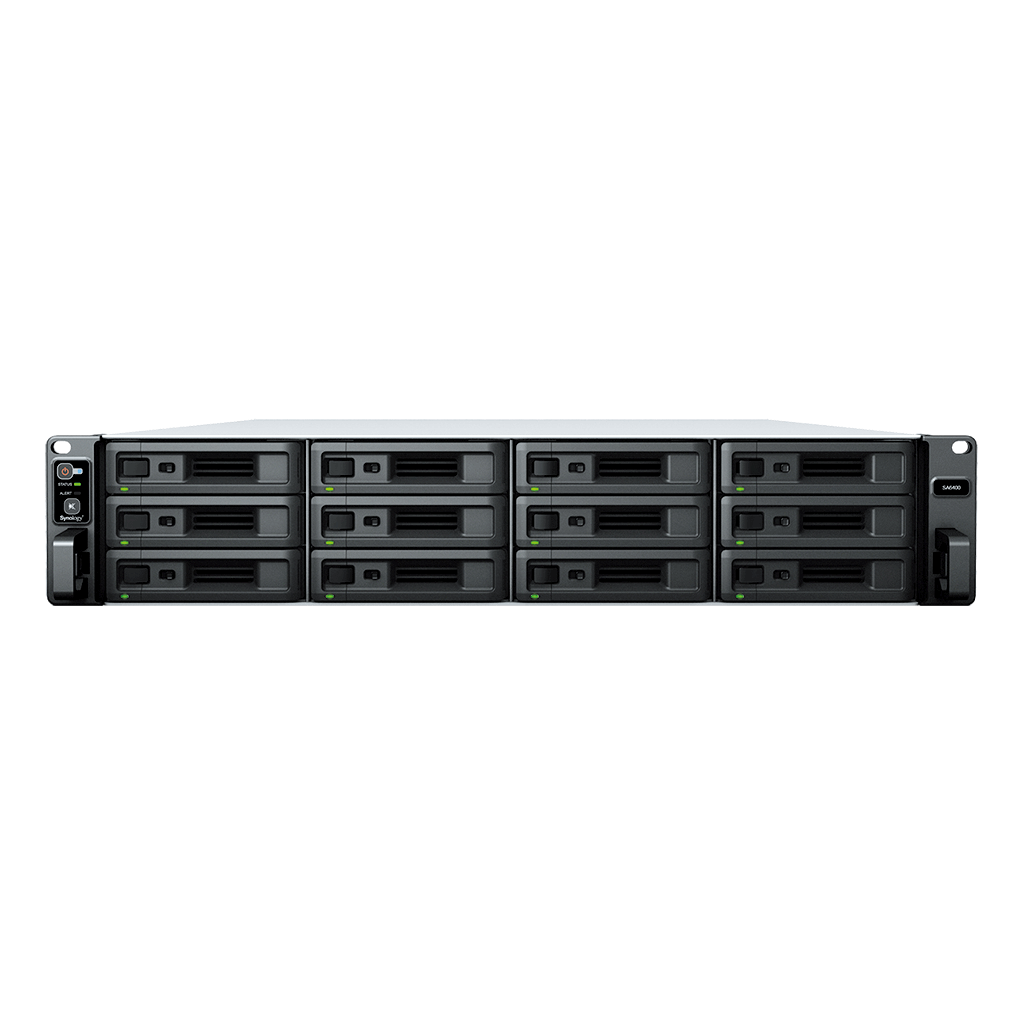

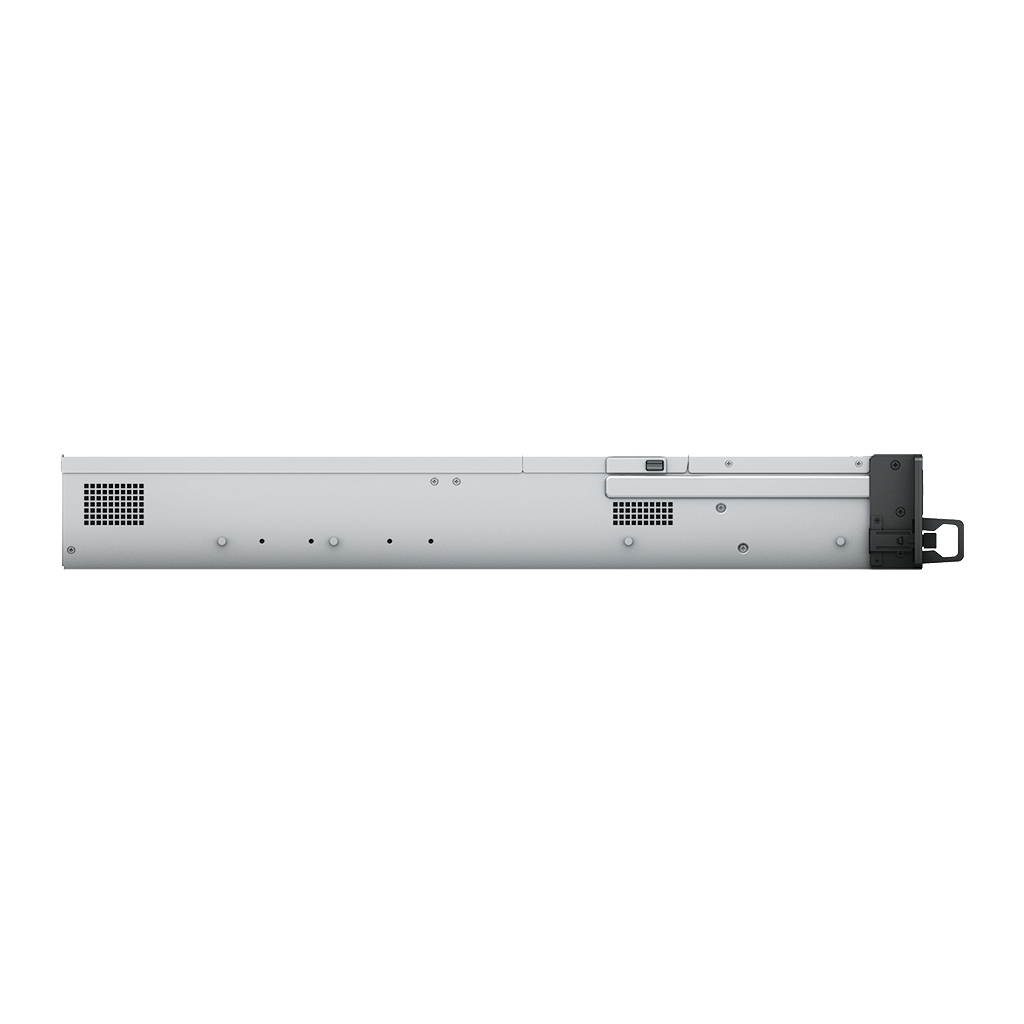

Synology SA6400 12-Bay Scalable Enterprise Storage Server
The Synology SA6400 is designed for large-scale file storage, backup and data-intensive business services, combining AMD EPYC 7272, 32 GB DDR4 ECC RDIMM, 12 hot-swappable bays and 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45.
- Processor
- AMD EPYC 7272
- Memory
- 32 GB DDR4 ECC RDIMM
- Drive bays
- 12 / up to 108
- Networking
- 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45
Scale storage and memory for growing data requirements
The Synology SA6400 is a 12-bay enterprise storage server designed for rapid expansion. Its 12-core AMD EPYC processor, 32 GB ECC memory, dual built-in 10GbE ports, out-of-band management and support for up to eight expansion units suit large data sets and demanding centralised storage environments.
Purpose-selected processor
AMD EPYC 7272 with 12 cores supports the model's verified business-storage positioning.
12 hot-swappable drive bays
Install compatible 3.5-inch sata hdd; 2.5-inch sata ssd and expand to 108 bays where the listed expansion unit is used.
Expandable ECC memory
The system includes 32 GB DDR4 ECC RDIMM and supports up to 1,024 GB (64 GB × 16).
Integrated business networking
4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45 provides wired connectivity without requiring the main PCIe expansion option.
Storage and I/O expansion
The verified Mini-SAS HD expansion connection and 2 × Gen3 x8 slots (x8 link) support future capacity or connectivity requirements.
Redundant power supplies
Two power paths reduce exposure to a single power-supply failure.
Who is the Synology SA6400 best for?
A strong choice for
- Centralised business file storage and backup
- Growing data sets that need verified bay expansion
- Rack deployments using ECC memory and built-in 10GbE
- Multi-site file sharing and synchronisation
- IT teams that require hot-swappable drive support and managed expansion
Consider another model if you need
- A smaller system with fewer than 12 drive bays
- An active-active SAN architecture for dedicated block storage
- Dual-port SAS drive support
- A desktop enclosure rather than a rackmount system
Key specifications
- Model
- SA6400
- Product type
- 12-bay scalable 2U enterprise storage
- Processor
- AMD EPYC 7272, 12 cores, 24 threads
- CPU frequency
- 2.9 GHz base / 3.2 GHz turbo
- System memory
- 32 GB DDR4 ECC RDIMM
- Maximum memory
- 1,024 GB (64 GB × 16)
- Drive bays
- 12; up to 108 (RX1223RP × 8)
- Drive types
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45
- PCIe expansion
- 2 × Gen3 x8 slots (x8 link)
- Dimensions (H × W × D)
- 88 × 482 × 724 mm
- Warranty
- 5 years
Full technical specifications
Processor, controller and memory
| Model | SA6400 |
|---|---|
| CPU model | AMD EPYC 7272 |
| CPU quantity | 1 |
| CPU cores | 12 |
| CPU threads | 24 |
| CPU architecture | 64-bit |
| CPU frequency | 2.9 GHz base / 3.2 GHz turbo |
| Hardware encryption engine | Supported |
| System memory | 32 GB DDR4 ECC RDIMM |
| Pre-installed memory | 32 GB (32 GB × 1) |
| Total memory slots | 16 |
| Maximum memory capacity | 1,024 GB (64 GB × 16) |
| Memory guidance | Use Synology memory modules and follow the exact model manual for supported configurations |
Storage, network and expansion
| Drive bays | 12 |
|---|---|
| Maximum drive bays with expansion | 108 (RX1223RP × 8) |
| Compatible drive types | 3.5-inch SATA HDD; 2.5-inch SATA SSD |
| Hot-swappable drives | Supported |
| RJ-45 1GbE LAN ports | 4 |
| RJ-45 10GbE LAN ports | 2 |
| Out-of-band management LAN port | 1 |
| Maximum number of LAN ports | 15 |
| USB ports | 2 × USB 3.2 Gen 1 |
| Expansion ports | 8 |
| Expansion port type | Mini-SAS HD |
| PCIe expansion | 2 × Gen3 x8 slots (x8 link) |
| Drive compatibility | Use only drives listed for the exact system on Synology’s current compatibility list |
Physical design and power
| Form factor | 2U |
|---|---|
| Size (H × W × D) | 88 × 482 × 724 mm |
| Weight | 16.5 kg |
| Rack installation | 4-post 19-inch rack; compatible rail kit sold separately |
| System fan | 80 × 80 mm × 4 |
| Fan modes | Full-speed, cool and quiet |
| Easy-replacement system fan | Supported |
| Noise level | 55.5 dB(A) |
| Power recovery | Supported |
| Scheduled power on/off | Supported |
| Wake on LAN/WAN | Supported |
| Power supply unit | 550 W |
| Redundant power supply | Supported |
| AC input | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Power consumption | 180.5 W (access); 88.56 W (HDD hibernation) |
| British Thermal Unit | 615.89 BTU/hr (access); 302.18 BTU/hr (HDD hibernation) |
Environment, warranty and package
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
|---|---|
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating humidity | 8% to 80% RH |
| Storage humidity | 5% to 95% RH |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, UL |
| Environment | RoHS compliant |
| Warranty | 5 years |
| Package contents | Main unit × 1; accessory pack × 1; AC power cord × 2; quick installation guide × 1 |
Frequently asked questions about the Synology SA6400
What is the Synology SA6400?
The Synology SA6400 is a 12-bay rackmount network attached storage system designed for large-scale file storage, backup and data-intensive business services.
Which processor is in the SA6400?
It uses the AMD EPYC 7272 with 12 cores and 24 threads, operating at 2.9 GHz base / 3.2 GHz turbo.
How much memory does the SA6400 include?
It includes 32 GB DDR4 ECC RDIMM and supports up to 1,024 GB (64 GB × 16).
How many drive bays does the SA6400 have?
It has 12 hot-swappable bays and supports up to 108 (RX1223RP × 8).
Which drives are supported by the SA6400?
The verified drive categories are 3.5-inch sata hdd; 2.5-inch sata ssd. Confirm the exact drive model on Synology's compatibility list before purchase.
What network ports are built into the SA6400?
The SA6400 includes 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45.
What expansion is available for the SA6400?
It provides 2 × Gen3 x8 slots (x8 link) plus 8 Mini-SAS HD expansion connections. Use only options listed for the exact model.
Does the SA6400 have redundant power?
Yes. The SA6400 includes redundant power supplies.
What are the dimensions of the SA6400?
It measures 88 × 482 × 724 mm in height × width × depth and weighs 16.5 kg.
What warranty applies to the SA6400?
Synology specifies 5 years. The warranty begins from the purchase date shown on the receipt.
- This product is supplied diskless unless the listing explicitly states otherwise; storage drives are sold separately.
- Confirm drives, memory, expansion units, rail kits and add-in cards on Synology’s current compatibility list for the exact model before purchase.
- Actual storage capacity and performance depend on the installed drives, RAID or storage configuration, network and workload.
- The rail kit is sold separately.
