Four-Slot Portable M.2 NVMe NASbook

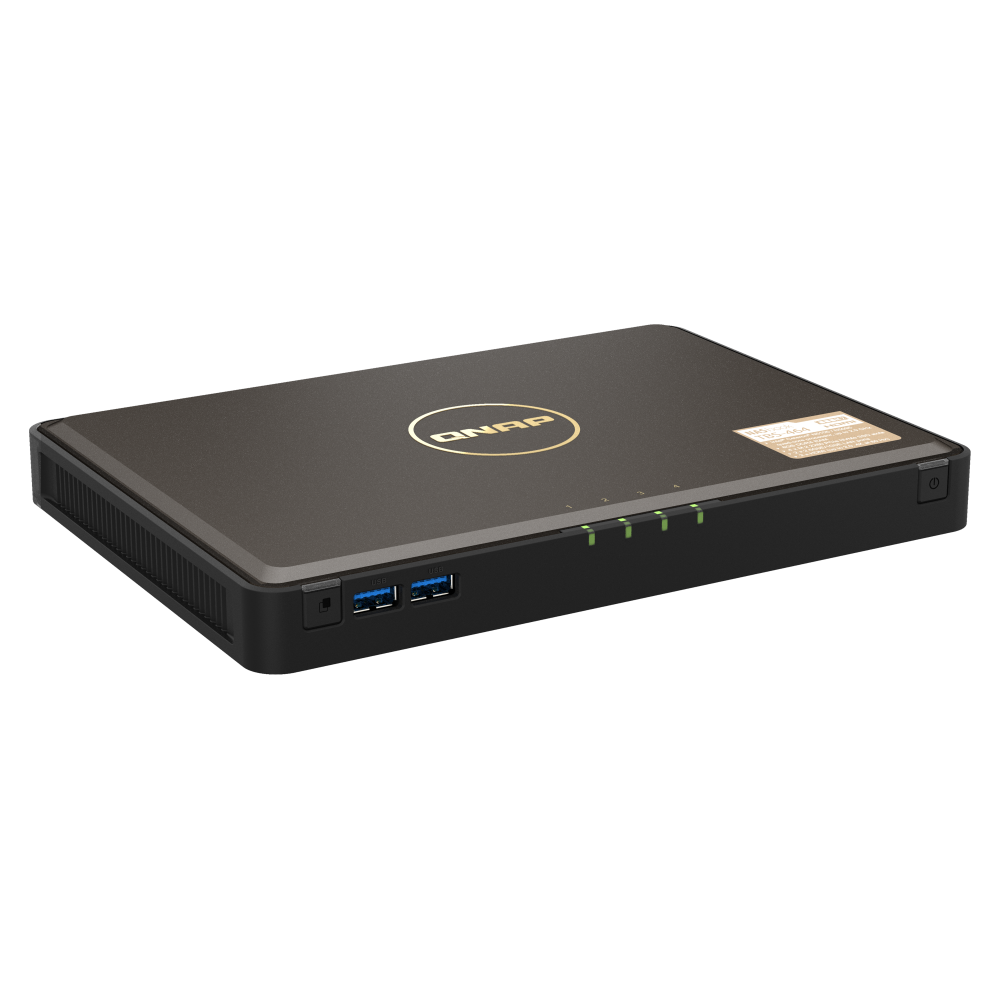

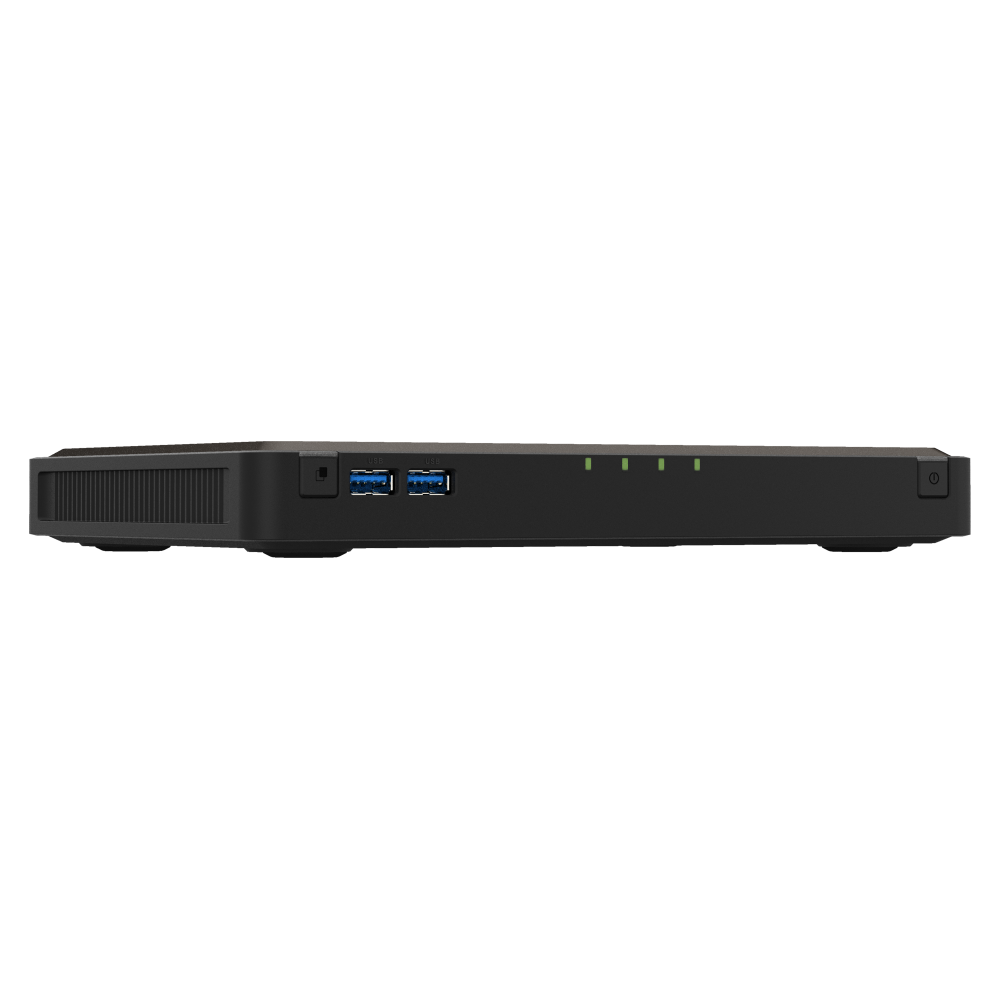

QNAP TBS-464-8G All-Flash NASbook
A thin set-top NASbook with four M.2 2280 NVMe Gen 3 x2 slots, an Intel Celeron N5105 quad-core processor, fixed 8 GB DDR4 memory, dual 2.5GbE, two HDMI outputs and two USB 3.2 Gen 1 ports.
Portable all-flash storage for mobile and remote creators
The QNAP TBS-464-8G replaces a collection of external drives with four internal M.2 NVMe positions in a compact set-top design. Dual 2.5GbE networking, two HDMI outputs, hardware-accelerated transcoding, USB connectivity and QTS file services support mobile workers and content creators who need shared storage, hybrid-cloud workflows, meeting recording and multimedia output.
Key features and benefits
Four M.2 NVMe slots
Four M.2 2280 NVMe Gen 3 x2 positions provide an all-flash storage platform.
Quad-core Intel processor
The Intel Celeron N5105 provides four cores and four threads with a stated burst speed up to 2.9 GHz.
Dual 2.5GbE networking
Two multi-gigabit RJ45 ports support fast file transfer and shared access.
Dual 4K HDMI output
Two HDMI outputs support the stated resolution up to 3840 × 2160 at 60Hz.
Meeting and presentation use
QNAP KoiMeeter can be used with the NASbook for wireless presentation and online-meeting recording workflows.
QTS with QuTS hero option
QTS is the default operating system, with switching to QuTS hero supported from QTS 5.2.2.
Who is this model best for?
A strong choice for
- Mobile workers and remote content creators
- Portable all-flash file storage
- Fast shared access over dual 2.5GbE
- Online-meeting and presentation workflows
- Direct multimedia output over HDMI
Consider another model if you need
- You need expandable system memory
- You require 2.5-inch or 3.5-inch drive bays
- You need more than four internal M.2 positions
Key specifications
- Processor
- Intel Celeron N5105, 4-core/4-thread, burst up to 2.9 GHz
- System memory
- 8 GB DDR4, non-expandable
- M.2 slots
- 4 × M.2 2280 NVMe Gen 3 x2
- Networking
- 2 × 2.5GbE RJ45
- USB
- 2 × USB 3.2 Gen 1; 3 × USB 2.0
- HDMI
- 2 × HDMI, up to 3840 × 2160 at 60Hz
- Form factor
- Set-top design
- Dimensions
- 30 × 230 × 165 mm
- Power supply
- 65W adapter
- Operating power
- 28 W, tested with drives fully populated
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8 GB DDR4, not expandable |
| Maximum Memory | 8 GB DDR4, not expandable |
| Flash Memory | 4GB (Dual boot OS protection) |
| M.2 Slot | 4 x M.2 2280 NVMe Gen3 x2 slots The system is shipped without SSD. For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| USB 2.0 port | 3 |
| USB 3.2 Gen 1 port | 2 |
| IR Sensor | Supported (RM-IR004) |
| HDMI™ Output | 2, HDMI™ (up to 2.0 resolution 3840 x 2160 @ 60Hz) |
Physical, environmental and power
| Form Factor | Set-top design |
|---|---|
| LED Indicators | SSD1-4 |
| Buttons | Power, Reset, Copy |
| Dimensions (HxWxD) | 30 × 230 × 165 mm |
| Weight (Gross) | 1.7 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 65W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 18 W |
| Power Consumption: Operating Mode, Typical | 28 W Tested with drives fully populated. |
| Fan | 1 x system fan |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TBS-464-8G
What is the QNAP TBS-464-8G?
It is a compact four-slot M.2 NVMe all-flash NASbook for shared storage, hybrid-cloud workflows, meeting recording and multimedia output.
Which processor does the TBS-464-8G use?
The TBS-464-8G uses an Intel Celeron N5105 four-core, four-thread processor with a stated burst speed up to 2.9 GHz.
How much memory is included with the TBS-464-8G?
It includes 8 GB DDR4 memory, which is not expandable.
How many M.2 slots does the TBS-464-8G have?
It has four M.2 2280 NVMe Gen 3 x2 slots.
Which storage devices does the TBS-464-8G support?
It supports M.2 2280 NVMe SSDs in four Gen 3 x2 positions.
Which network ports are built into the TBS-464-8G?
It includes two 2.5GbE RJ45 ports.
Which external connections does the TBS-464-8G provide?
It provides two USB 3.2 Gen 1 ports, three USB 2.0 ports and two HDMI outputs.
What form factor is the TBS-464-8G?
It uses a thin set-top NASbook design.
What are the dimensions of the TBS-464-8G?
Its stated dimensions are 30 × 230 × 165 mm.
Can the TBS-464-8G run QuTS hero?
Yes. Switching from the default QTS operating system to QuTS hero is supported starting from QTS 5.2.2.
Important information
The system is shipped without SSDs.
The 8 GB DDR4 memory is not expandable.
Switching to QuTS hero is supported starting from QTS 5.2.2.
