12-Bay 2U Rackmount NAS

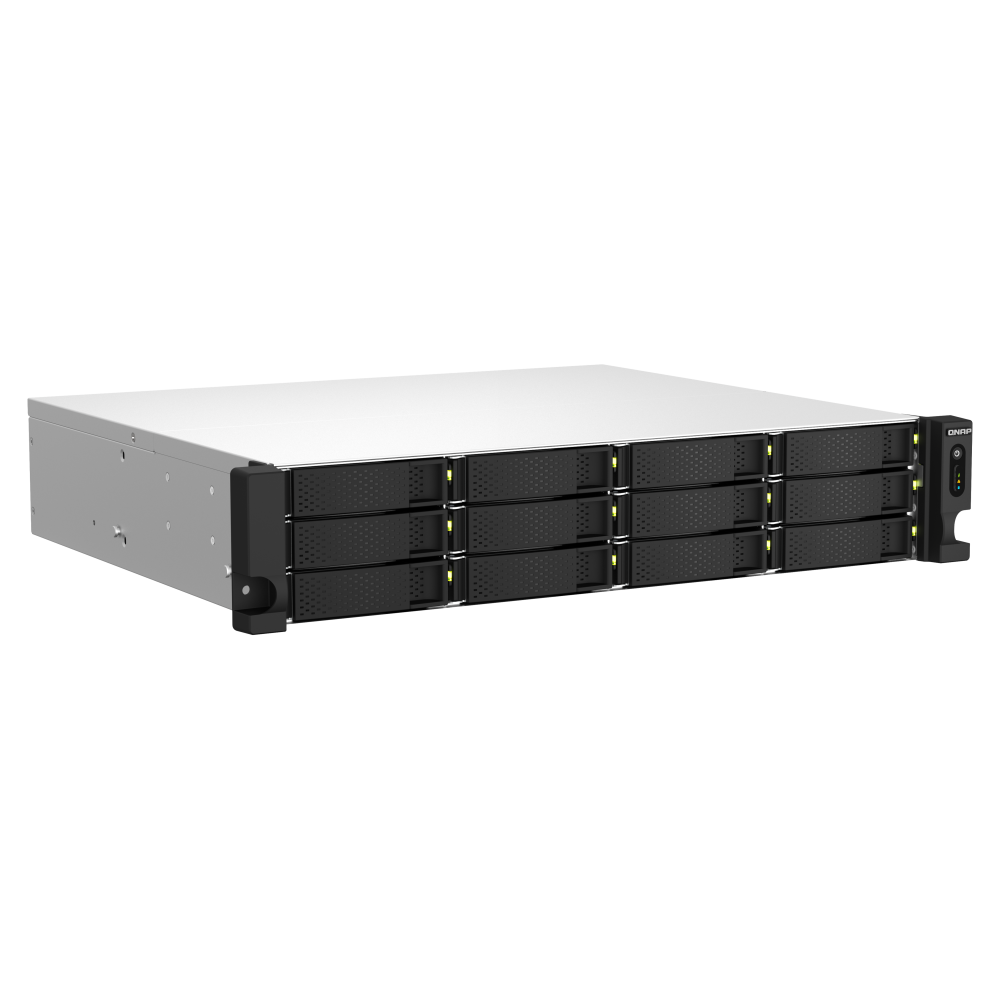

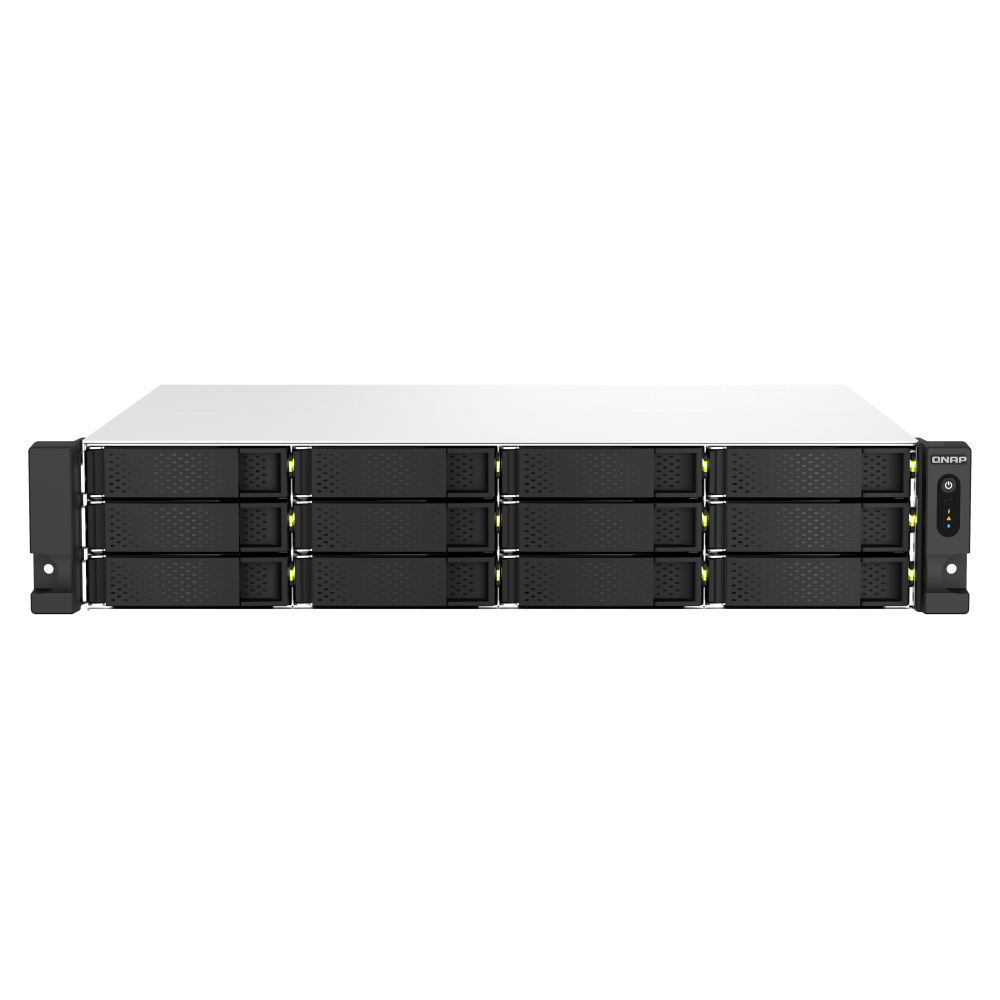

QNAP TS-1264U-RP-4G Rackmount NAS
A 12-bay 2U rackmount NAS with an Intel Celeron N5095 quad-core processor, dual 2.5GbE, PCIe expansion, HDMI output, integrated graphics and redundant power supplies.
Twelve-bay rack storage with integrated graphics and PCIe expansion
The QNAP TS-1264U-RP-4G combines 12 hot-swappable SATA bays, dual 2.5GbE, HDMI 1.4b and a PCIe Gen 3 slot in a 2U rackmount chassis with redundant power. Snapshots, Qtier, SSD caching, container applications and a stated path from QTS to QuTS hero support shared storage, backup and application services.
Key features and benefits
Twelve hot-swappable bays
The 12 SATA bays support centralised storage, backup and expansion planning.
Dual 2.5GbE ports
Two multi-gigabit RJ45 ports support port trunking with a stated combined transfer speed up to 5Gbps.
Integrated graphics and HDMI
Intel UHD Graphics, hardware-accelerated transcoding and HDMI 1.4b are built in.
PCIe Gen 3 expansion
One PCIe Gen 3 x2 slot supports compatible multi-gigabit networking, QM2 or USB expansion cards.
Snapshots and storage optimisation
Snapshots, Qtier and SSD caching support recovery and storage-management workflows.
Redundant power
Two 300W power supply units support continuity-focused rack installations.
Who is this model best for?
A strong choice for
- 12-bay rackmount storage
- Business backup and file sharing
- Deployments requiring redundant power
- HDMI-connected display use
- Container applications and expandable networking
Consider another model if you need
- You need 10GbE built in
- You require built-in M.2 slots
- You prefer a tower NAS
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- Maximum memory
- 16 GB (2 × 8 GB)
- Drive bays
- 12 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 3 x2 slot
- USB
- 2 × USB 2.0; 2 × USB 3.2 Gen 2 Type-A
- HDMI
- 1 × HDMI 1.4b
- Dimensions
- 88.6 × 432 × 370.7 mm
- Power supply
- 300W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported (Not supported M.2 SSD) |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:160 x 68.9x 28.76 mm / 6.3 x 2.71 x 1.13 inches. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen2 |
| HDMI™ Output | 1, HDMI™ 1.4b |
Physical, environmental and power
| Form Factor | 2U Rackmount |
|---|---|
| LED Indicators | HDD 1-12, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 370.7 mm |
| Weight (Net) | 10.64 kg |
| Weight (Gross) | 14.01 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 70.913 W Tested with drives fully populated. |
| Fan | 2 x 80mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-1264U-RP-4G
What is the QNAP TS-1264U-RP-4G?
It is a 12-bay 2U rackmount NAS with dual 2.5GbE, integrated graphics, HDMI, PCIe expansion and redundant power.
Which processor does the TS-1264U-RP-4G use?
The TS-1264U-RP-4G uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
What is the stated maximum memory capacity of the TS-1264U-RP-4G?
The stated maximum memory capacity is 16 GB using two 8 GB modules.
How many drive bays does the TS-1264U-RP-4G have?
It has 12 hot-swappable 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-1264U-RP-4G?
It supports 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Which network ports are built into the TS-1264U-RP-4G?
It includes two 2.5GbE RJ45 ports; 5GbE and 10GbE are optional through a compatible PCIe expansion card.
What expansion options does the TS-1264U-RP-4G provide?
It has one PCIe Gen 3 x2 slot, with M.2 storage available through a compatible PCIe adapter.
What form factor is the TS-1264U-RP-4G?
It is a 2U rackmount NAS with redundant 300W power supplies.
What are the dimensions of the TS-1264U-RP-4G?
Its stated dimensions are 88.6 × 432 × 370.7 mm.
Can the TS-1264U-RP-4G switch to QuTS hero?
Yes. Switching from QTS to QuTS hero is supported starting from QTS 5.2.2.
Important information
M.2 storage requires a compatible PCIe adapter.
M.2 SSDs are not hot-swappable.
The stated operating figure of 70.913 W was tested with drives fully populated.
An optional short rail kit is required for the stated 19-inch ANSI/EIA-RS-310-D rack installation.
