4-Bay Multi-Gigabit Tower NAS
QNAP TS-431X3-4G Multi-Gigabit NAS
A four-bay tower NAS with an AnnapurnaLabs Alpine AL314 quad-core processor, 4 GB DDR3 memory, one 10GbE SFP+ port, one 2.5GbE port and one Gigabit Ethernet port.
Four-bay storage with three tiers of network connectivity
The QNAP TS-431X3-4G combines four hot-swappable SATA bays with 10GbE SFP+, 2.5GbE and Gigabit Ethernet connectivity. Backup and synchronisation, snapshots, Docker and LXC containers, Qfiling automation and VJBOD support shared storage, collaboration and recovery planning for small and medium organisations.
Key features and benefits
10GbE SFP+ built in
A dedicated 10GbE SFP+ port supports bandwidth-intensive transfers.
2.5GbE and Gigabit RJ45
Separate 2.5GbE and Gigabit ports offer practical connection choices for existing and upgraded networks.
Backup and synchronisation
Hybrid Backup Sync supports backup and synchronisation with other NAS, servers and cloud storage.
Snapshot protection
Snapshots record system status and data to assist recovery after accidental deletion or malware incidents.
Docker and LXC containers
Container support enables application services to run across the NAS and connected environments.
Automated organisation and VJBOD
Qfiling can automate file organisation, while VJBOD can expand another supported QNAP NAS.
Who is this model best for?
A strong choice for
- Four-bay small-business storage
- 10GbE SFP+ file transfers
- 2.5GbE team collaboration
- Backup and snapshot workflows
- Docker and LXC container services
Consider another model if you need
- You require a 64-bit processor platform
- You need more than one 10GbE port
- You need more than four internal drive bays
Key specifications
- Processor
- AnnapurnaLabs Alpine AL314, 4-core 1.7 GHz
- System memory
- 4 GB SODIMM DDR3 (1 × 4 GB)
- Maximum memory
- 8 GB (1 × 8 GB)
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 1 × 10GbE SFP+; 1 × 2.5GbE RJ45; 1 × Gigabit RJ45
- USB
- 3 × USB 3.2 Gen 1
- Form factor
- Tower
- Dimensions
- 165 × 160.2 × 220.5 mm
- Power supply
- 90W adapter, 100–240VAC
Full technical specifications
Processor, memory and storage
| CPU | AnnapurnaLabs, Alpine AL314, 4-core, 1.7GHz |
|---|---|
| CPU Architecture | 32-bit ARM |
| Floating Point Unit | Supported |
| Encryption Engine | Supported |
| System Memory | 4 GB SODIMM DDR3 (1 x 4 GB) |
| Maximum Memory | 8 GB (1 x 8 GB) |
| Memory Slot | 1 x SODIMM DDR3 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 400 |
Network, ports and expansion
| Gigabit Ethernet Port (RJ45) | 1 |
|---|---|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Wake on LAN (WOL) | Supported Only the 1GbE port |
| Jumbo Frame | Supported |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | Tower |
|---|---|

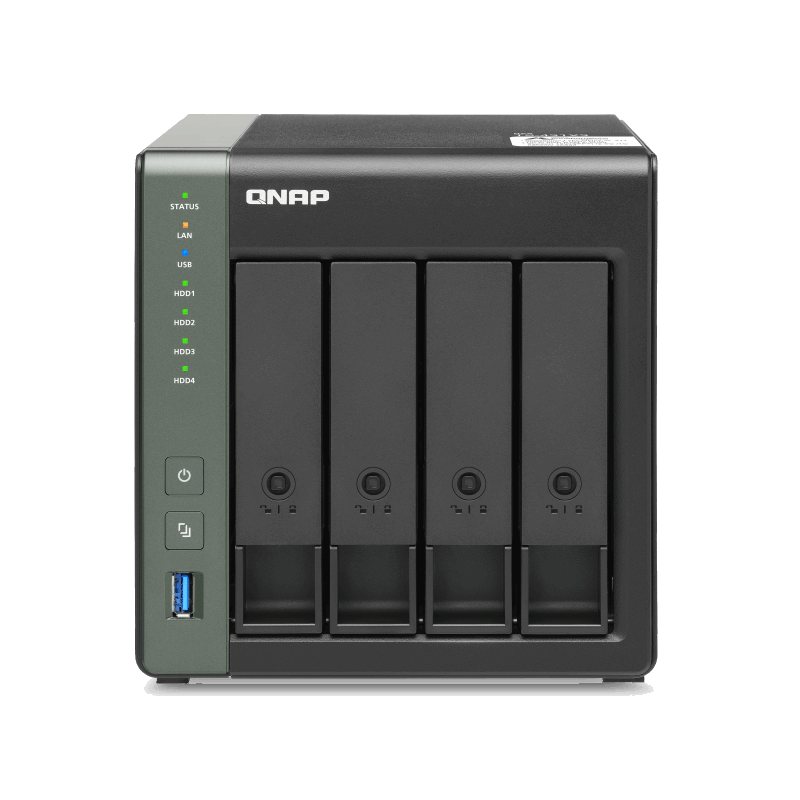

| LED Indicators | Power, Status, LAN, USB, HDD1-4 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 165 × 160.2 × 220.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 3.19 kg |
| Weight (Gross) | 3.47 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 90W adapter (12VDC), 100-240VAC |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-431X3-4G
What is the QNAP TS-431X3-4G?
It is a four-bay tower NAS with 10GbE SFP+, 2.5GbE and Gigabit Ethernet connectivity.
Which processor does the TS-431X3-4G use?
The TS-431X3-4G uses an AnnapurnaLabs Alpine AL314 four-core 1.7 GHz processor.
How much memory is included with the TS-431X3-4G?
The TS-431X3-4G includes 4 GB SODIMM DDR3 memory and supports a stated maximum of 8 GB.
How many drive bays does the TS-431X3-4G have?
It has four 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-431X3-4G?
It supports 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Which network ports are built into the TS-431X3-4G?
It includes one 10GbE SFP+ port, one 2.5GbE RJ45 port and one Gigabit Ethernet RJ45 port.
What expansion options does the TS-431X3-4G provide?
It supports VJBOD for using this NAS to expand the storage space of another supported QNAP NAS.
What form factor is the TS-431X3-4G?
It is a desktop tower NAS.
What are the dimensions of the TS-431X3-4G?
Its stated dimensions are 165 × 160.2 × 220.5 mm, excluding the foot pad.
Does the TS-431X3-4G support Docker containers?
Yes. It supports Docker and LXC containers.
Important information
Wake on LAN is stated as supported only through the Gigabit Ethernet port.
Confirm that the stated 8 GB maximum memory capacity meets the intended workload.
