1U short-depth design (291 mm)
Quad-core 1.7 GHz CPU
2x 1GbE, 1x 10GbE, 4x USB 3.2 Gen 1 (5Gbps) ports

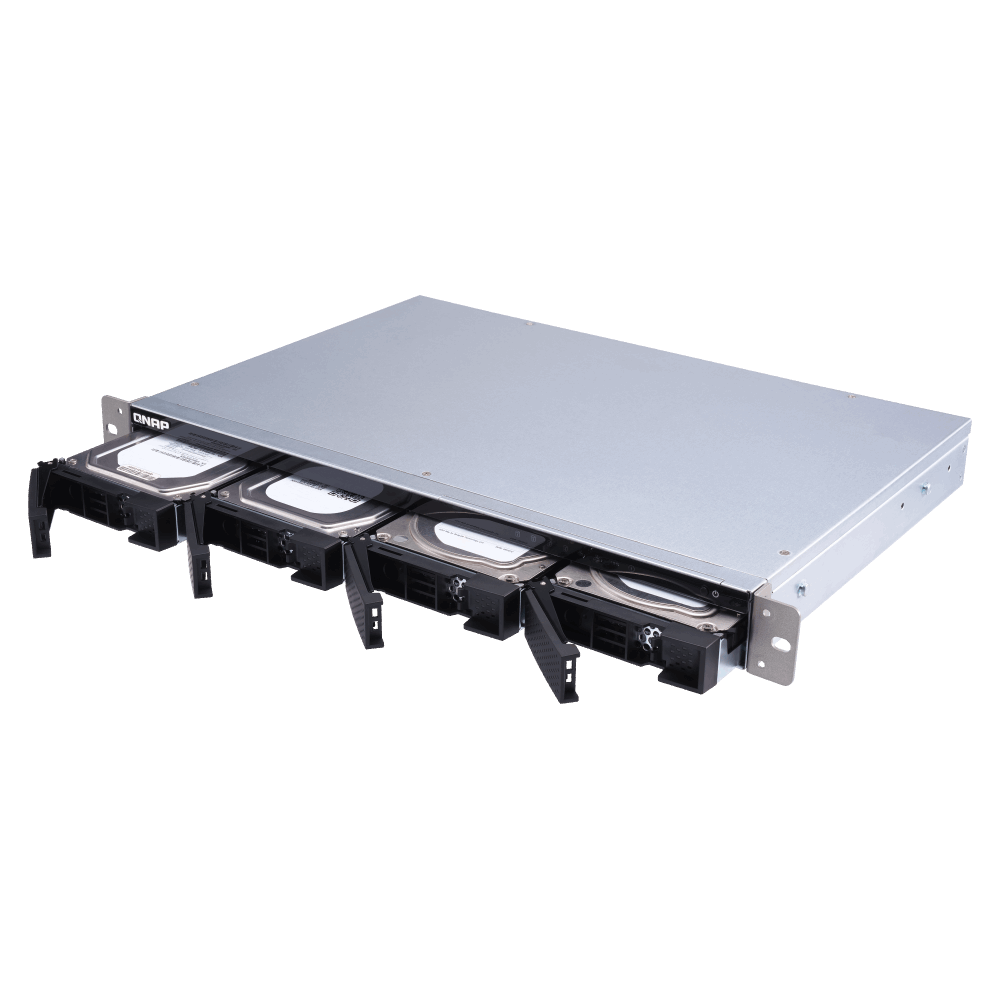

The high-performance quad-core short depth TS-431XeU includes a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD (Virtual JBOD) - an economical way to utilize unused NAS storage space for expanding the storage capacity of other QNAP NAS - and Container Station - that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
- The short depth design is suitable for installing in smaller racks or space-constrained locations
- 10GbE readiness, SSD caching, and encryption acceleration engine
- VJBOD allows using the TS-431XeU to expand the storage capacity of other QNAP NAS
- Containerized virtualization and IoT app development with Container Station
- Build a private cloud to centrally organize & manage files and backup tasks
- Secure access with VPN Server & VPN Client
- Qsirch, the full text search engine, helps quickly locate files on the NAS
- Expand the total storage capacity up to 24 drives by connecting up to 2 QNAP expansion enclosure (UX-1200U-RP or UX-800U-RP)
- Users can purchase the optional short rail kit to deploy the TS-431XeU in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Specification
| CPU | AnnapurnaLabs Alpine AL314 32-bit ARM® Cortex-A15 4-core 1.7GHz processor |
| CPU Architecture | 32-bit ARM |
| Floating Point Unit |  |
| Encryption Engine | |
| System Memory | 2 GB SODIMM DDR3 (1 x 2 GB) |
| Maximum Memory | 8 GB (1 x 8 GB) |
| Memory Slot | 1 x SODIMM DDR3 |
| Flash Memory | 512MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 3.2 Gen 1 port | 4 |

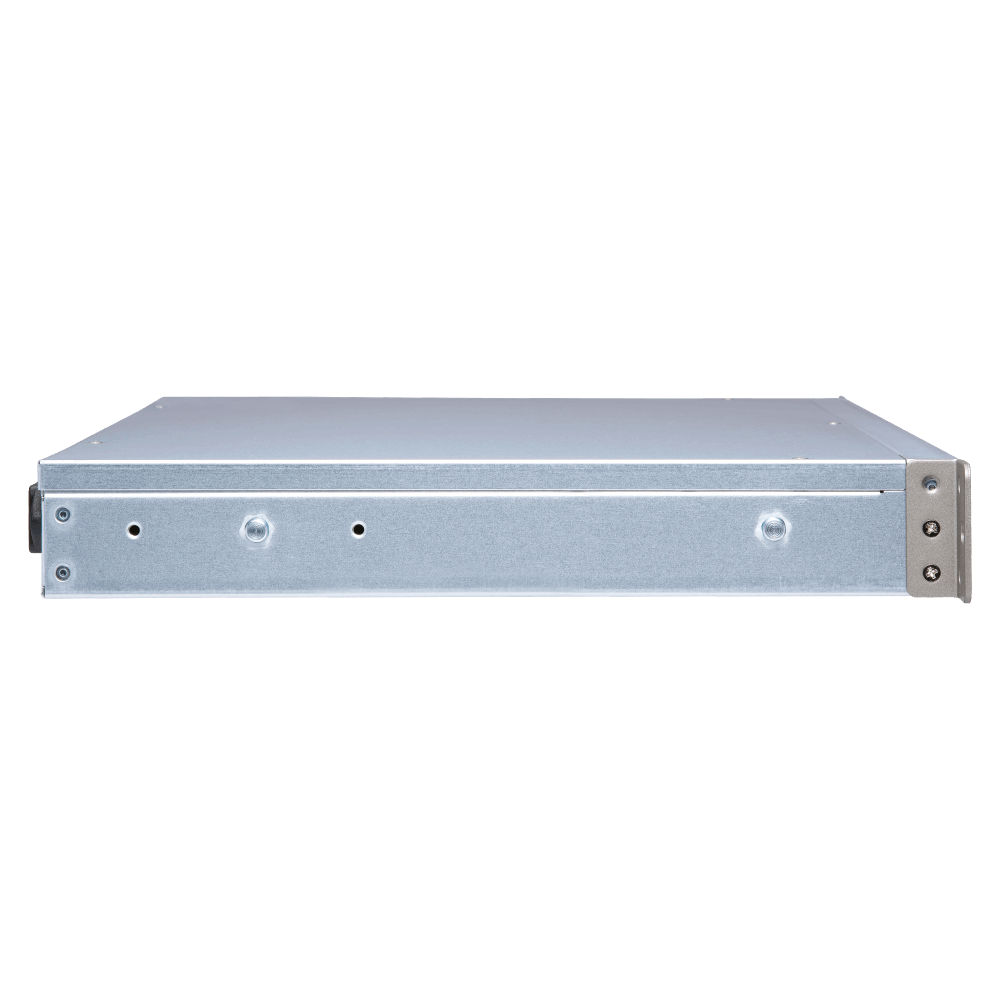

| Form Factor | 1U Short Depth Rackmount |

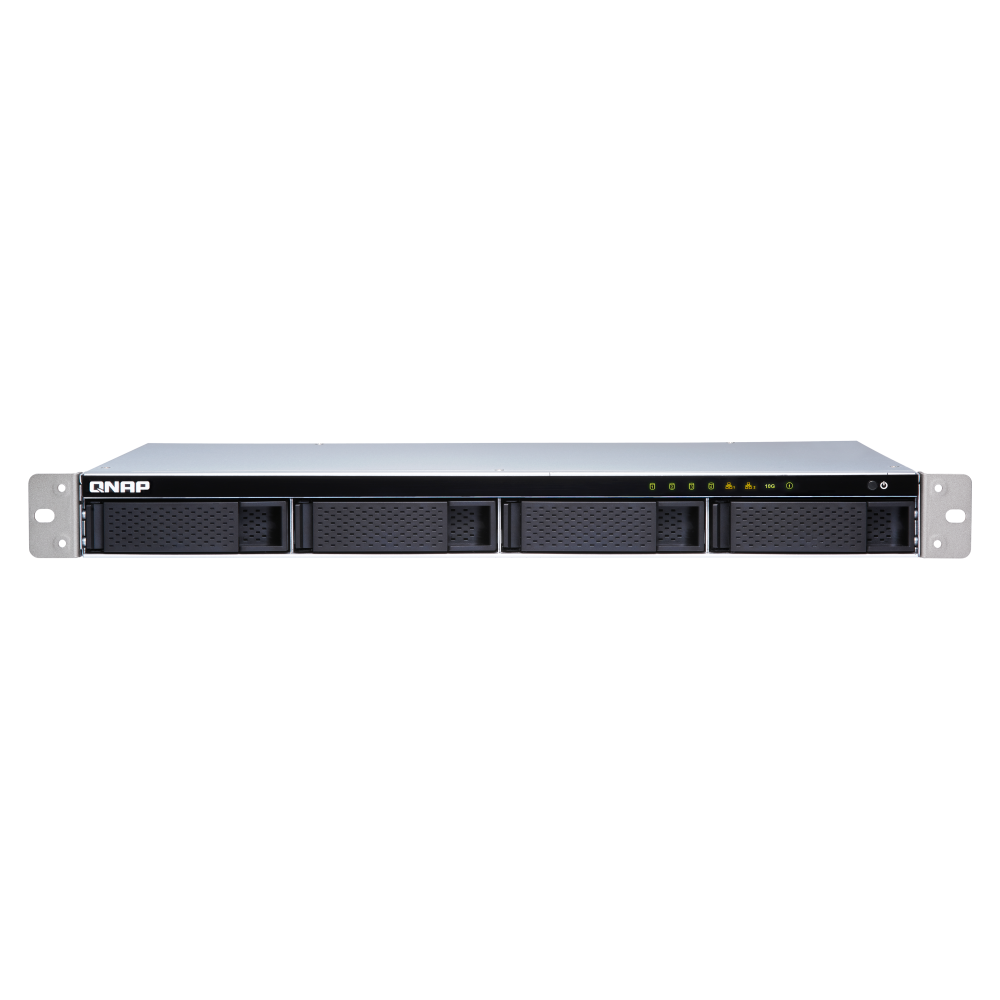

| LED Indicators | HDD 1-4, Status, USB, LAN1-3 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 291 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 5 kg |
| Weight (Gross) | 5.9 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz |
| Power Consumption: HDD Sleep Mode | 12.42 W |
| Power Consumption: Operating Mode, Typical | 30.99 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 40mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 400 |
