4-Bay Intel Desktop NAS
QNAP TS-464-8G Diskless NAS
A compact four-bay desktop NAS with an Intel Celeron N5095 quad-core processor, 8 GB DDR4 memory, dual 2.5GbE, two M.2 NVMe slots and HDMI 2.1.
Compact storage for backup, collaboration and multimedia
The QNAP TS-464-8G is a diskless four-bay tower NAS designed for centralised file management, backup, collaboration and video conversion. Dual 2.5GbE, two M.2 NVMe slots, a PCIe Gen 3 slot and HDMI 2.1 give home users and small teams several paths to improve storage responsiveness, networking and direct-display use.
Key features and benefits
Dual 2.5GbE ports
Two multi-gigabit RJ45 ports support faster shared access and port trunking.
Two M.2 NVMe slots
Compatible M.2 SSDs can be used for caching and Qtier storage optimisation.
PCIe expansion
One PCIe Gen 3 x2 slot supports compatible networking, QM2 and other listed expansion options.
HDMI 2.1 output
The built-in output supports up to 4096 × 2160 at 60Hz.
Integrated graphics
Intel UHD Graphics supports the listed hardware-accelerated transcoding capability.
QTS and QuTS hero path
QTS is supplied by default, with switching to QuTS hero supported from QTS 5.2.2.
Who is this model best for?
A strong choice for
- Home and small-business file storage
- Centralised backup and collaboration
- Multimedia libraries and direct display
- Teams moving to 2.5GbE
- Users planning NVMe or PCIe expansion
Consider another model if you need
- You require more than four internal drive bays
- You need built-in 10GbE
- You want a rackmount chassis
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- System memory
- 8 GB SODIMM DDR4
- Maximum memory
- 16 GB (2 × 8 GB)
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s; shipped without HDD
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x1
- Networking
- 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 3 x2 slot
- HDMI
- 1 × HDMI 2.1, up to 4096 × 2160 at 60Hz
- Warranty
- 3 years
Full technical specifications
Processor, memory and storage
| CPU Model | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8 GB SODIMM DDR4 |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |

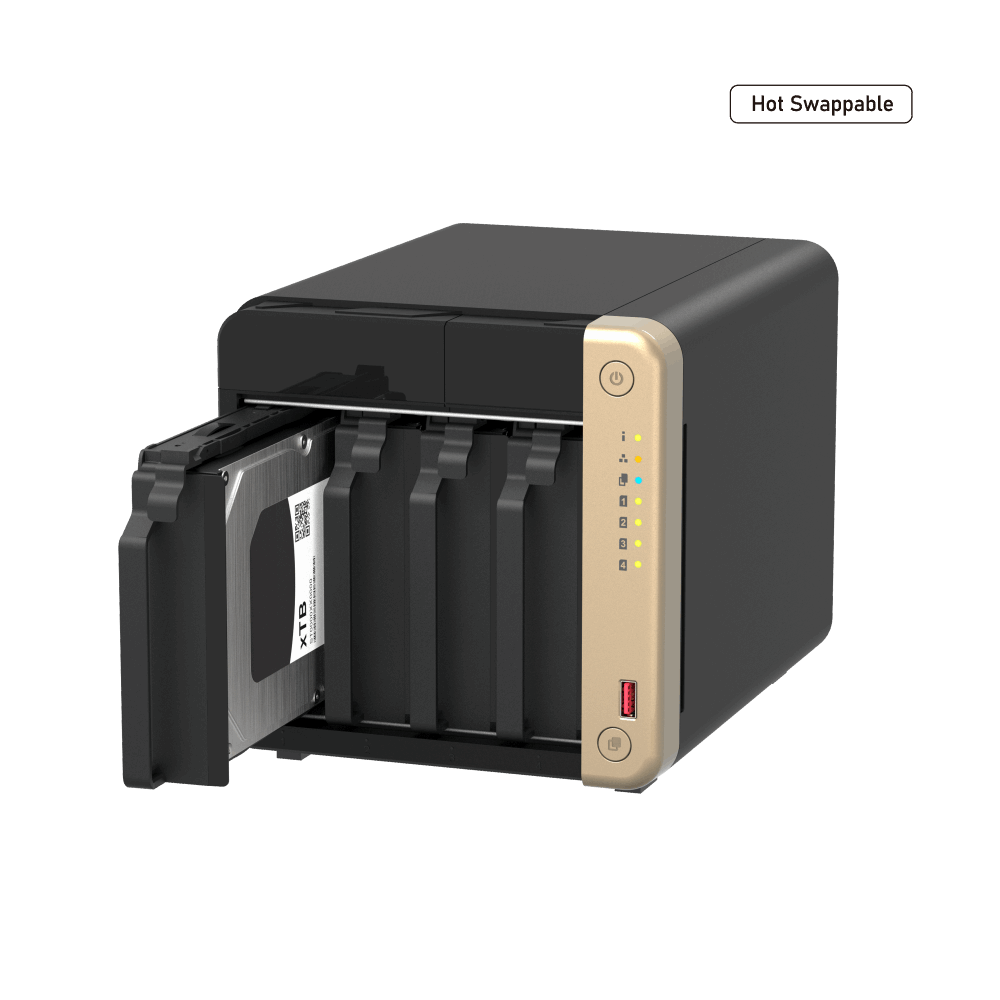

| Hot-swappable | Supported |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 inches |
| USB 2.0 Port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, USB, HDD1-4 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 170 × 226.5 mm Dimensions do not include foot pad (may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 2.26 kg |
| Weight (Gross) | 3.59 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 90W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 21.618 W |
| Power Consumption: Operating Mode, Typical | 40.536 W Tested with drives fully populated. |
| Fan | 1 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Software and system features
| Standard Warranty | 3 years |
|---|
Frequently asked questions about the TS-464-8G
What is the QNAP TS-464-8G?
The TS-464-8G is a diskless four-bay tower NAS with dual 2.5GbE, two M.2 NVMe slots, PCIe expansion and HDMI 2.1.
Which processor does the TS-464-8G use?
The TS-464-8G uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
How much memory is included with the TS-464-8G?
The TS-464-8G includes 8 GB SODIMM DDR4 memory and supports a stated maximum of 16 GB.
How many drive bays does the TS-464-8G have?
It has four 3.5-inch SATA drive bays and is supplied without hard drives.
Which drive types are supported by the TS-464-8G?
It supports 3.5-inch SATA hard disk drives and 2.5-inch SATA solid-state drives.
Which network ports are built into the TS-464-8G?
It includes two 2.5GbE RJ45 ports; 5GbE and 10GbE can be added through a compatible PCIe expansion card.
What expansion options does the TS-464-8G provide?
It provides two M.2 2280 PCIe Gen 3 x1 slots and one PCIe Gen 3 x2 slot.
What form factor is the TS-464-8G?
It is a desktop tower NAS.
What are the dimensions of the TS-464-8G?
Its stated dimensions are 165 × 170 × 226.5 mm, excluding the foot pads.
What warranty is listed for the TS-464-8G?
The listed standard warranty is three years.
Important information
The system is supplied without hard drives; drives and M.2 SSDs are sold separately.
The stated operating power figure was tested with drives fully populated.
Check drive, M.2 SSD and PCIe-card compatibility before purchase.
