4-Bay Short-Depth Rackmount NAS

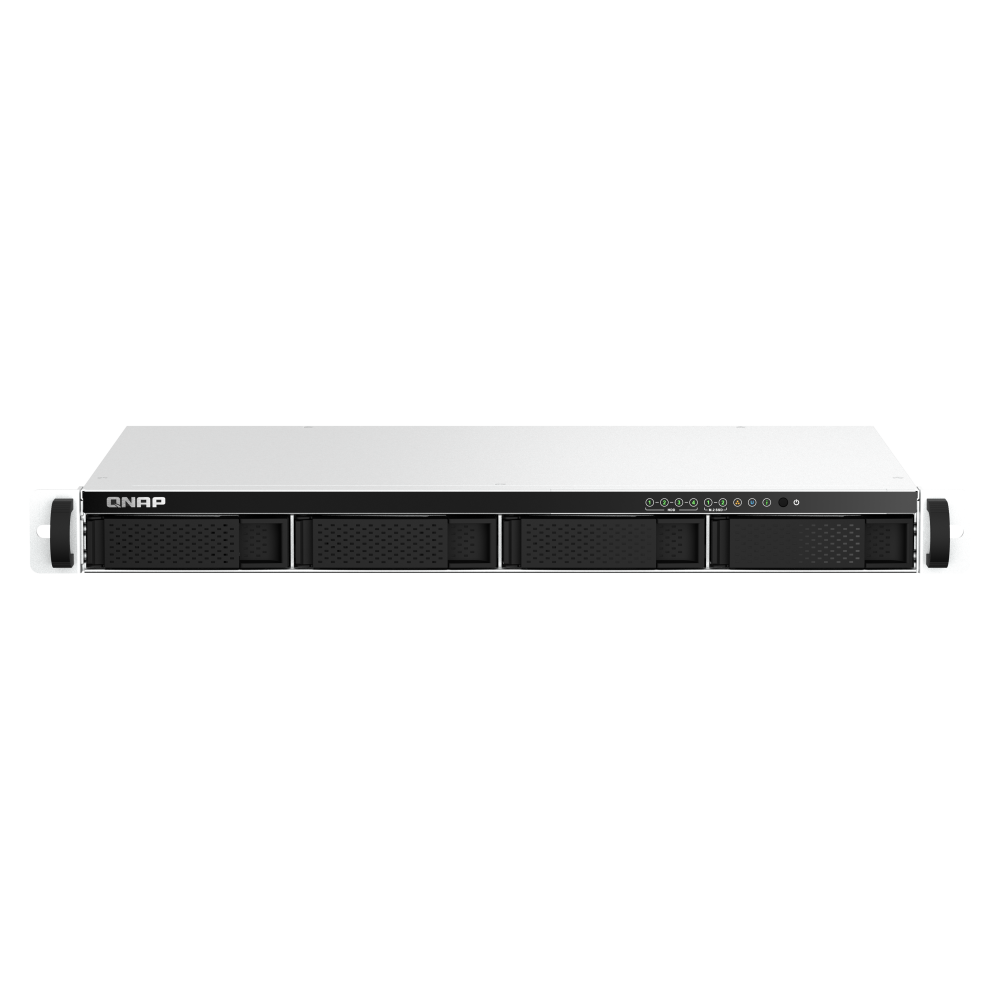

QNAP TS-464eU-4G Short-Depth NAS
A four-bay short-depth 1U NAS with an Intel Celeron N5095 quad-core processor, dual 2.5GbE, two built-in M.2 NVMe slots and HDMI output.
Compact 1U storage with NVMe caching options
The QNAP TS-464eU-4G places four SATA bays, dual 2.5GbE, two M.2 NVMe slots and HDMI 1.4b in a short-depth 292.1 mm rack chassis. It is designed for business file storage, backup, data recovery and hybrid-cloud workflows where rack depth is limited, while the built-in M.2 slots provide a direct path to compatible SSD caching and Qtier.
Key features and benefits
Short-depth 1U design
The 292.1 mm chassis is designed for smaller media cabinets and rack spaces with substantial cabling.
Built-in M.2 NVMe slots
Two M.2 2280 PCIe Gen 3 x1 slots support compatible NVMe SSDs for Qtier and caching.
Dual 2.5GbE networking
Two RJ45 ports support multi-gigabit access and port trunking.
Intel UHD Graphics
Integrated graphics supports the listed hardware-accelerated transcoding capability.
HDMI 1.4b output
A built-in HDMI connection supports direct display and the stated 4K playback use.
Backup and hybrid cloud
The product positioning includes endpoint backup, data recovery and cloud-storage gateway use.
Who is this model best for?
A strong choice for
- Space-limited rack installations
- Four-bay shared business storage
- Backup and data-recovery workflows
- Teams adopting 2.5GbE
- NVMe caching without a PCIe adapter
Consider another model if you need
- You require a confirmed installed-memory capacity before purchase
- You need PCIe card expansion
- You require redundant power supplies
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- Maximum memory
- 16 GB (2 × 8 GB)
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x1
- Networking
- 2 × 2.5GbE RJ45
- USB
- 2 × USB 2.0; 2 × USB 3.2 Gen 2 Type-A
- HDMI
- 1 × HDMI 1.4b
- Dimensions
- 43.3 × 430 × 292.1 mm
- Power supply
- 100W, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI™ Output | 1, HDMI™ 1.4b |
Physical, environmental and power
| Form Factor | 1U Short Depth Rackmount |
|---|---|
| LED Indicators | Power/Status, LAN, USB, HDD1-4, M.2 SSD 1-2 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 292.1 mm |
| Weight (Net) | 4.96 kg |
| Weight (Gross) | 5.9 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 100W PSU, 100-240V |
| Power Consumption: HDD Sleep Mode | 21.105 W |
| Power Consumption: Operating Mode, Typical | 35.297 W Tested with drives fully populated. |
| Fan | 3 x 40mm |
| System Warning | Buzzer |
Frequently asked questions about the TS-464eU-4G
What is the QNAP TS-464eU-4G?
The TS-464eU-4G is a four-bay short-depth 1U rackmount NAS with dual 2.5GbE, two M.2 NVMe slots and HDMI output.
Which processor does the TS-464eU-4G use?
The TS-464eU-4G uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
What is the maximum memory capacity of the TS-464eU-4G?
The stated maximum memory capacity is 16 GB using two 8 GB modules. Confirm the installed-memory capacity before purchase.
How many drive bays does the TS-464eU-4G have?
It has four 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-464eU-4G?
It supports 3.5-inch SATA hard disk drives and 2.5-inch SATA solid-state drives.
Which network ports are built into the TS-464eU-4G?
It includes two 2.5GbE RJ45 ports.
What expansion options does the TS-464eU-4G provide?
It has two M.2 2280 PCIe Gen 3 x1 slots for compatible NVMe SSDs; no PCIe card slot is listed.
What form factor is the TS-464eU-4G?
It is a 1U short-depth rackmount NAS.
What are the dimensions of the TS-464eU-4G?
Its stated dimensions are 43.3 × 430 × 292.1 mm.
Which USB ports are included with the TS-464eU-4G?
It includes two USB 2.0 ports and two USB 3.2 Gen 2 Type-A ports.
Important information
Confirm the installed-memory capacity before purchase.
Compatible M.2 NVMe SSDs are required for Qtier or SSD caching.
The stated 35.297 W operating figure was tested with drives fully populated.
