4-Bay 1U Rackmount NAS

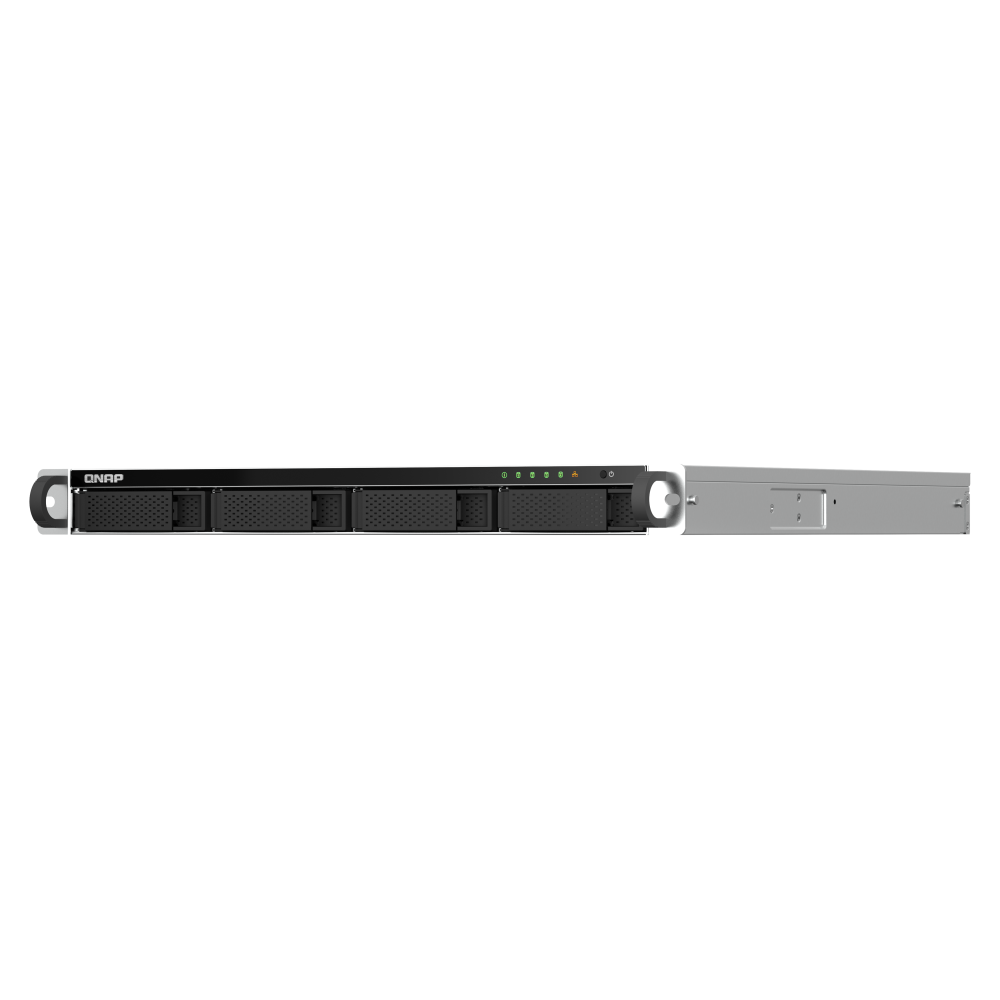

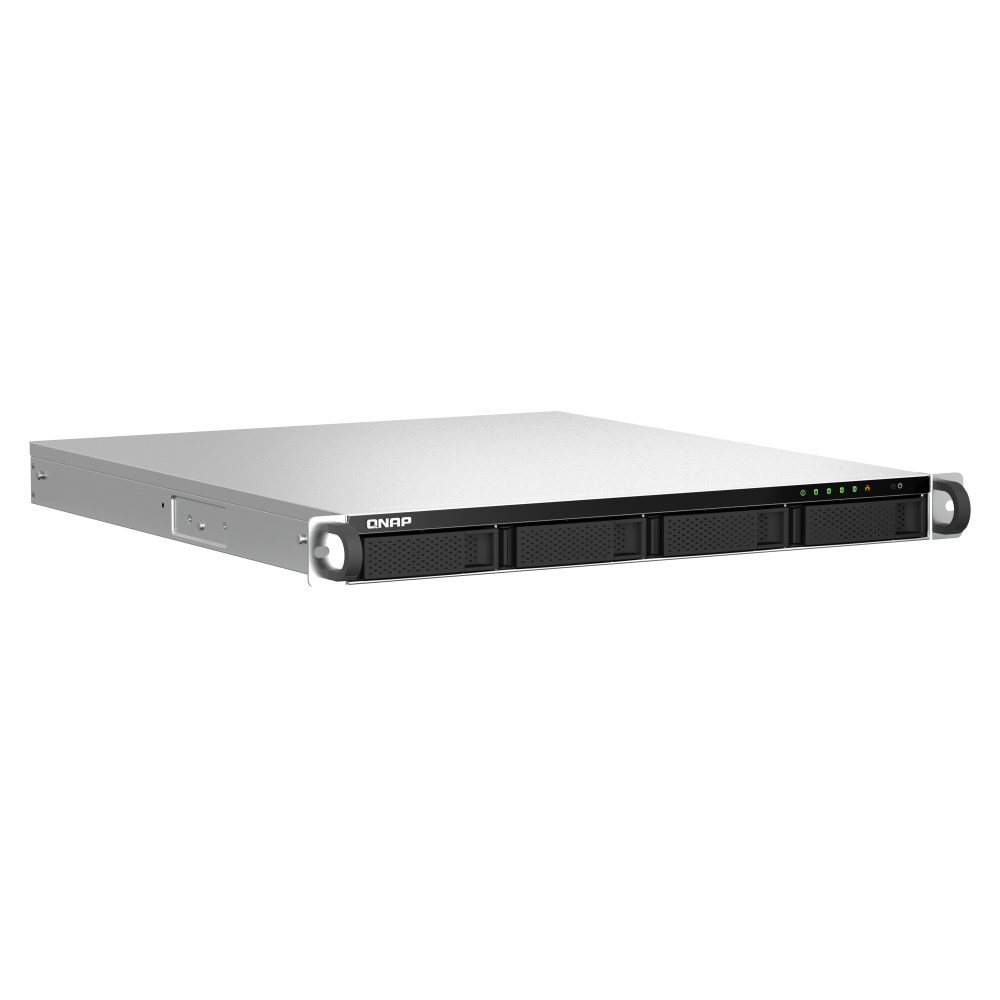

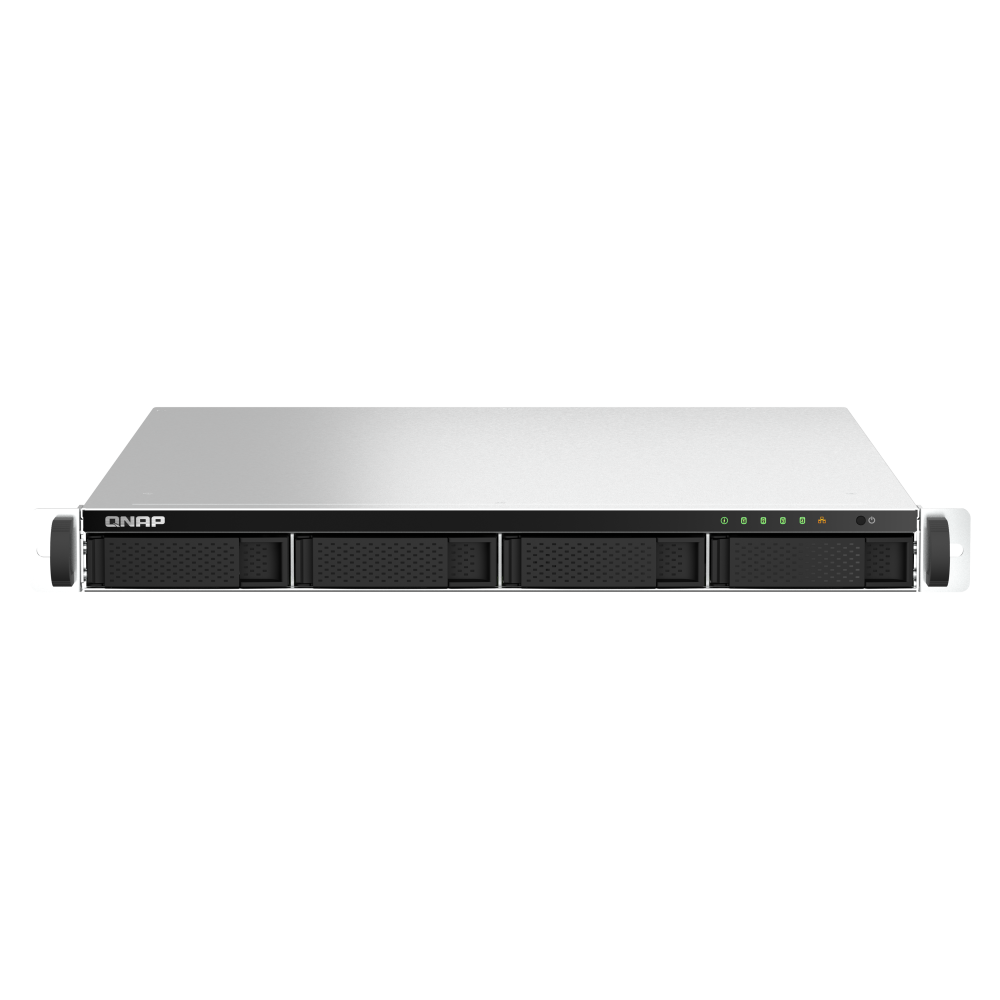

QNAP TS-464U-RP-8G Rackmount NAS
A four-bay 1U rackmount NAS with an Intel Celeron N5095 quad-core processor, dual 2.5GbE, PCIe expansion, HDMI output, integrated graphics and redundant power.
Compact rack storage with integrated graphics and redundant power
The QNAP TS-464U-RP-8G provides four SATA bays, dual 2.5GbE, integrated Intel UHD Graphics, HDMI 1.4b and PCIe Gen 3 expansion in a 1U rackmount chassis. Snapshots, Qtier, SSD caching, container applications and a stated path from QTS to QuTS hero support business storage, backup and application workloads.
Key features and benefits
Redundant power supplies
Two 250W power units support continuity-focused rack installations.
Dual 2.5GbE connectivity
Two multi-gigabit RJ45 ports support port trunking and faster shared access.
Integrated graphics and HDMI
Intel UHD Graphics, hardware-accelerated transcoding and HDMI 1.4b are included.
PCIe expansion
One PCIe Gen 3 x2 slot supports compatible networking, QM2 or USB expansion cards.
Snapshots and storage optimisation
Snapshot protection, Qtier and SSD caching support recovery and storage management.
QTS and QuTS hero path
The system runs QTS by default and can switch to QuTS hero starting from QTS 5.2.2.
Who is this model best for?
A strong choice for
- Four-bay rackmount storage
- Business backup and file sharing
- Deployments requiring redundant power
- HDMI-connected display use
- Containerised applications and expandable networking
Consider another model if you need
- You require more than four internal drive bays
- You need built-in 10GbE
- You require built-in M.2 slots rather than a PCIe adapter
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- Maximum memory
- 16 GB (2 × 8 GB)
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 3 x2 slot
- USB
- 2 × USB 2.0; 2 × USB 3.2 Gen 2 Type-A
- HDMI
- 1 × HDMI 1.4b
- Dimensions
- 43.3 × 430 × 479 mm
- Power supply
- 250W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adaptor |
| 10 Gigabit Ethernet Port | Optional via network adaptor Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI™ Output | 1, HDMI™ 1.4b |
Physical, environmental and power
| Form Factor | 1U Rackmount |
|---|---|
| LED Indicators | HDD 1-4, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 479 mm |
| Weight (Net) | 9.34 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W (x2), 100-240V |
| Power Consumption: HDD Sleep Mode | 37.469 W |
| Power Consumption: Operating Mode, Typical | 51.404 W Tested with drives fully populated. |
| Fan | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-464U-RP-8G
What is the QNAP TS-464U-RP-8G?
It is a four-bay 1U rackmount NAS with dual 2.5GbE, integrated graphics, HDMI, PCIe expansion and redundant power.
Which processor does the TS-464U-RP-8G use?
The TS-464U-RP-8G uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
What is the maximum memory capacity of the TS-464U-RP-8G?
The stated maximum memory capacity is 16 GB using two 8 GB modules.
How many drive bays does the TS-464U-RP-8G have?
It has four 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-464U-RP-8G?
It supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Which network ports are built into the TS-464U-RP-8G?
It includes two 2.5GbE RJ45 ports; 5GbE and 10GbE are optional through a compatible PCIe adapter.
What expansion options does the TS-464U-RP-8G provide?
It has one PCIe Gen 3 x2 slot, with M.2 storage available through a compatible PCIe adapter.
What form factor is the TS-464U-RP-8G?
It is a 1U rackmount NAS with redundant 250W power supplies.
What are the dimensions of the TS-464U-RP-8G?
Its stated dimensions are 43.3 × 430 × 479 mm.
Which HDMI output does the TS-464U-RP-8G include?
It includes one HDMI 1.4b output.
Important information
M.2 storage requires a compatible PCIe adapter.
The stated 51.404 W operating figure was tested with drives fully populated.
Check drive, PCIe-card and expansion-unit compatibility before purchase.
