8-Bay Short-Depth Rackmount NAS

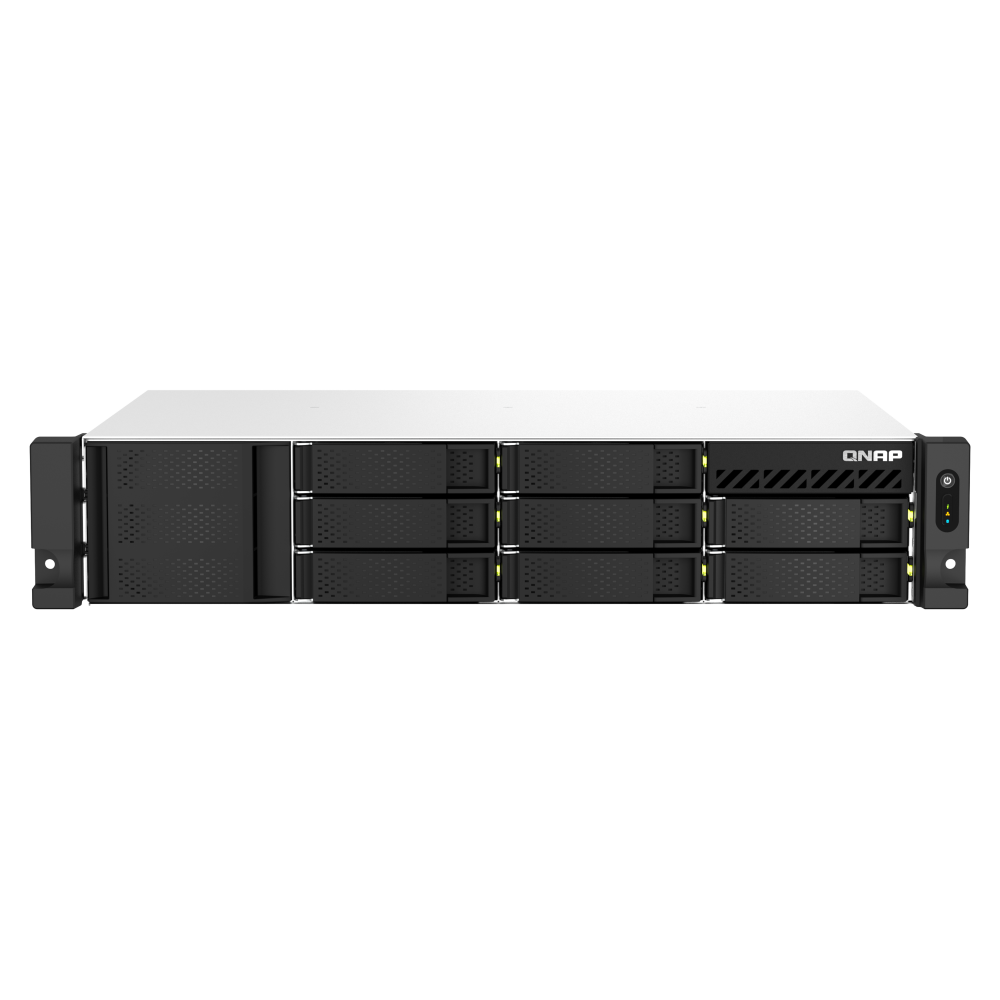

QNAP TS-864eU-RP-8G Short-Depth Rackmount NAS
An eight-bay 2U short-depth NAS with an Intel Celeron N5095 quad-core processor, 8 GB DDR4 memory, dual 2.5GbE ports, HDMI output, PCIe expansion and redundant power.
Compact rack storage with integrated graphics and redundant power
The QNAP TS-864eU-RP-8G fits eight SATA bays into a 297.4 mm-deep 2U chassis. It combines dual 2.5GbE, Intel UHD Graphics, HDMI 1.4b, hardware-accelerated transcoding, PCIe expansion and redundant power for storage, backup, hybrid-cloud and media workflows in space-conscious racks.
Key features and benefits
Short-depth 2U chassis
The 297.4 mm depth suits compact racks, media cabinets and installations with substantial rear cabling.
Dual 2.5GbE connectivity
Two 2.5GbE RJ45 ports support multi-gigabit access and port trunking.
Integrated graphics and HDMI
Intel UHD Graphics, HDMI 1.4b and hardware-accelerated transcoding are included.
PCIe expansion
One PCIe Gen 3 x2 slot supports compatible network, QM2 or USB expansion cards within the stated dimensions.
QTS and QuTS hero path
The system runs QTS by default and can switch to QuTS hero starting from QTS 5.2.2.
Redundant power supplies
Two 300W power supplies support continuity-focused rack deployments.
Who is this model best for?
A strong choice for
- Short-depth rack installations
- Business storage and backup
- Hybrid-cloud gateway workflows
- HDMI-connected media use
- Deployments requiring redundant power
Consider another model if you need
- You need built-in 10GbE connectivity
- You require more than 8 GB memory installed initially
- You need more than one PCIe expansion slot
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- System memory
- 8 GB SODIMM DDR4 (1 × 8 GB), stated since 2024/01
- Maximum memory
- 16 GB (2 × 8 GB)
- Drive bays
- 8 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 3 x2 slot
- HDMI
- 1 × HDMI 1.4b
- Dimensions
- 88.6 × 432 × 297.4 mm
- Power supply
- 300W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) Since 2024/01 |
| Maximum Memory | 16 GB (2 x 8GB) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adaptor |
| 10 Gigabit Ethernet Port | Optional via network adaptor Optional via PCIe expansion card |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1:97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI™ Output | 1, HDMI™ 1.4b |
Physical, environmental and power
| Form Factor | 2U Short Depth Rackmount |
|---|---|
| LED Indicators | HDD 1-8, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm |
| Weight (Net) | 9.21 kg |
| Weight (Gross) | 10.71 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption: HDD Sleep Mode | 31.742 W |
| Power Consumption: Operating Mode, Typical | 55.83 W Tested with drives fully populated. |
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-864eU-RP-8G
What is the QNAP TS-864eU-RP-8G?
It is an eight-bay 2U short-depth rackmount NAS with dual 2.5GbE, HDMI output and redundant power.
Which processor does this model use?
It uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
How much memory is included?
The technical table states 8 GB SODIMM DDR4 memory as one 8 GB module since 2024/01.
What is the maximum memory capacity?
The stated maximum is 16 GB using two 8 GB modules.
Which drives are supported?
The eight bays support 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Which network ports are included?
Two 2.5GbE RJ45 ports are built in.
Does the TS-864eU-RP-8G have HDMI?
Yes. It includes one HDMI 1.4b output.
Can this model use QuTS hero?
Yes. Switching from the default QTS system to QuTS hero is stated as supported starting from QTS 5.2.2.
Does it have redundant power?
Yes. Two 300W power supplies are included.
What are its dimensions?
The stated dimensions are 88.6 × 432 × 297.4 mm.
Important information
Optional M.2, 5GbE and 10GbE functions require compatible adapters.
The typical 55.83 W operating figure was tested with drives fully populated.
Confirm drive, adapter and expansion-card compatibility before purchase.
