10-Bay U.2 NVMe / SATA All-Flash NAS

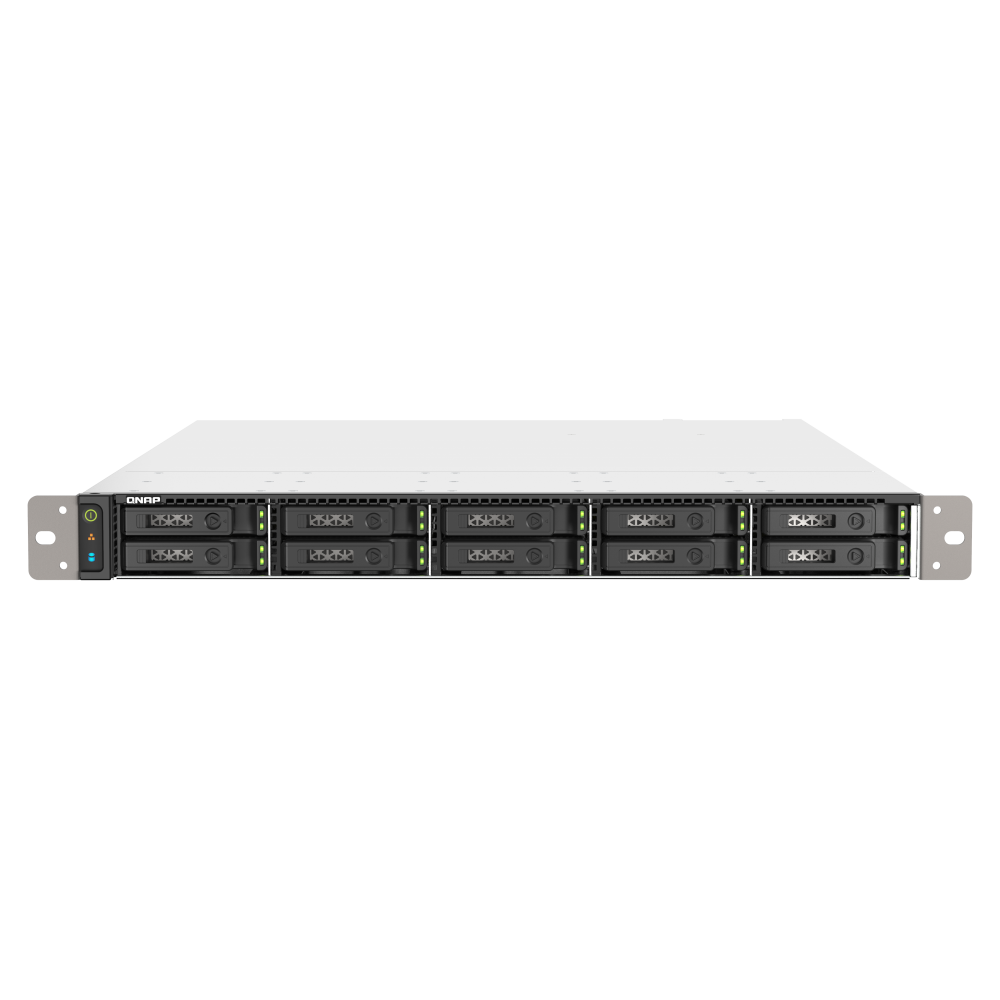

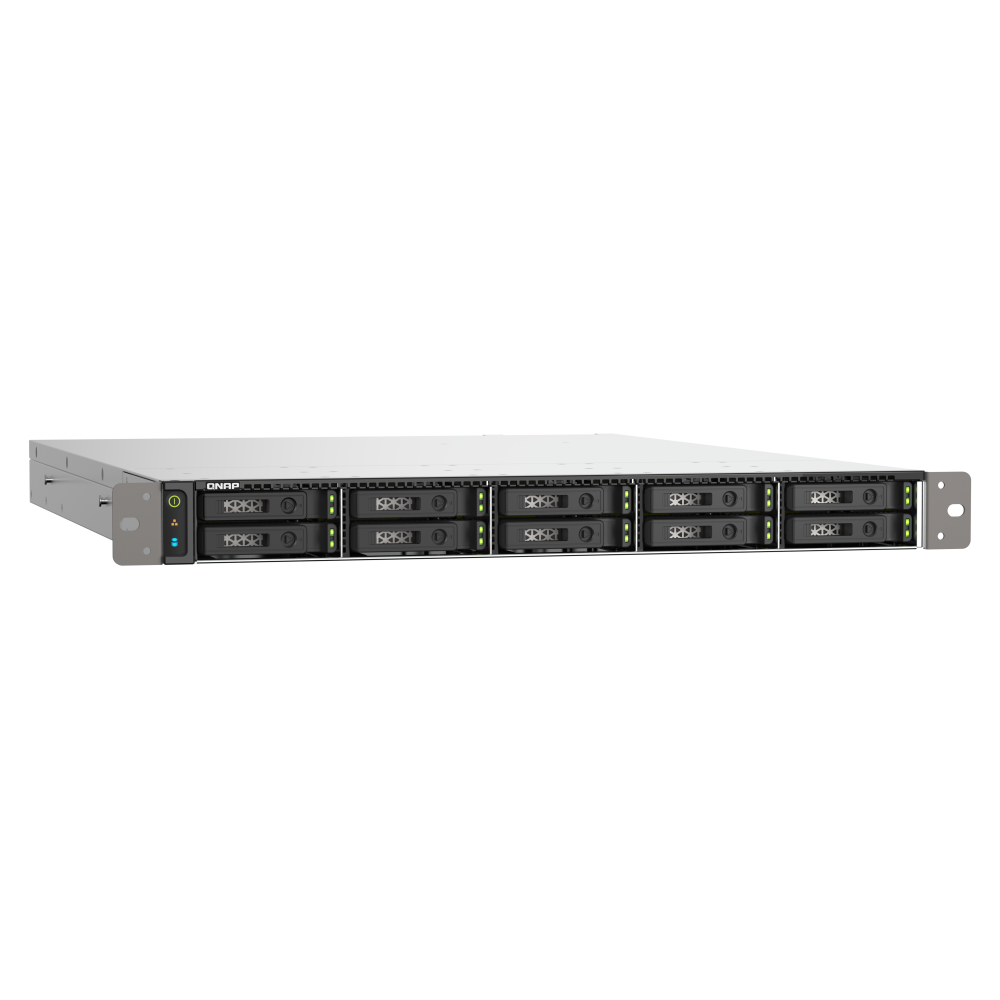

QNAP TS-h1090FU-7302P-128G All-Flash NAS
A compact 1U all-flash NAS with ten U.2 NVMe or SATA SSD bays, a 16-core AMD EPYC 7302P processor, dual 25GbE connectivity, two PCIe Gen 4 slots and redundant power supplies.
Compact all-flash storage for high-throughput rack deployments
The QNAP TS-h1090FU-7302P-128G uses ten hot-swappable SSD bays, ZFS-based QuTS hero services and built-in 25GbE networking in a 1U chassis. It is positioned for I/O-intensive virtualisation, data-centre storage, multimedia work and backup or recovery where dense flash capacity and low latency are priorities.
Key features and benefits
High-density all-flash design
Ten bays accept U.2 NVMe PCIe Gen 4 x4 or SATA solid state drives in a chassis measuring 582 mm deep.
25GbE plus 2.5GbE
Two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports support high-speed storage traffic.
ZFS efficiency features
Inline data deduplication and compression, pool over-provisioning and TRIM are included for SSD-focused storage management.
PCIe Gen 4 expansion
Two PCIe Gen 4 x16 slots support low-profile expansion cards within the stated card dimensions.
Virtualisation support
Virtualisation storage, SR-IOV virtual machines and containerised applications are included in the feature set.
Redundant power supplies
Two 550W power supply units support continuity-focused rack deployments.
Who is this model best for?
A strong choice for
- Low-latency virtualisation storage
- Data-centre and Tier 2 storage workloads
- Multimedia storage and transfer
- Backup and recovery infrastructure
- Dense all-flash deployments with limited rack depth
Consider another model if you need
- You need 3.5-inch HDD capacity
- You require a tower chassis
- Your deployment requires more than two PCIe expansion slots
Key specifications
- Processor
- AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
- Maximum memory
- 1 TB+ (12 × 128 GB)
- Memory slots
- 12 × RDIMM DDR4
- Drive bays
- 10 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
- Drive compatibility
- 2.5-inch U.2 NVMe Gen 4 x4 SSD; 2.5-inch SATA SSD
- Networking
- 2 × 25GbE SFP28 SmartNIC; 2 × 2.5GbE
- Expansion
- 2 × PCIe Gen 4 x16 slots
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 44 × 430 × 582 mm
- Power supply
- 550W × 2, AC 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| Maximum Memory | 1 TB+ (12 x 128 GB) |
| Memory Slot | 12 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSD. |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| SR-IOV | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only. Card dimensions for PCIe slot 1:198 x 68.9 x 18.76 mm / 7.8 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 2:250 x 68.9x 18.76 mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | 1U Rackmount |
|---|---|
| LED Indicators | Disk, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 11.6 kg |
| Weight (Gross) | 13.4 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W PSU (x2), AC 100-240 V |
| Power Consumption: Operating Mode, Typical | 157.97 W Tested with drives fully populated. |
| Fan | 5 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-h1090FU-7302P-128G
What is the QNAP TS-h1090FU-7302P-128G?
It is a 10-bay 1U all-flash NAS for virtualisation, multimedia storage, data-centre services and backup or recovery tasks.
Which processor is specified?
The TS-h1090FU-7302P-128G uses an AMD EPYC 7302P 16-core/32-thread processor with a stated speed of up to 3.3 GHz.
How many drive bays does this model have?
It has ten hot-swappable 2.5-inch bays.
Which SSD types can be installed?
The bays support 2.5-inch U.2 NVMe Gen 4 x4 SSDs and 2.5-inch SATA SSDs.
Are SSDs supplied with the TS-h1090FU-7302P-128G?
No. The system is shipped without SSDs.
What networking is built in?
It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE Ethernet ports.
Does it provide PCIe expansion?
Yes. Two PCIe Gen 4 x16 slots are provided for low-profile cards within the stated size limits.
What is the maximum memory capacity?
The stated maximum is 1 TB+ across twelve RDIMM DDR4 slots.
What is the form factor?
The TS-h1090FU-7302P-128G is a 1U rackmount NAS.
What are its dimensions?
The stated dimensions are 44 × 430 × 582 mm.
Important information
The system is shipped without SSDs.
The typical 157.97 W operating figure was tested with drives fully populated.
Confirm SSD, expansion-card and enclosure compatibility before purchase.
