AMD Ryzen™ 7 CPU, up to 4.4 GHz
2x 10GbE SFP+ SmartNIC ports, supporting iSER
4x PCIe slots, expandable for 25GbE

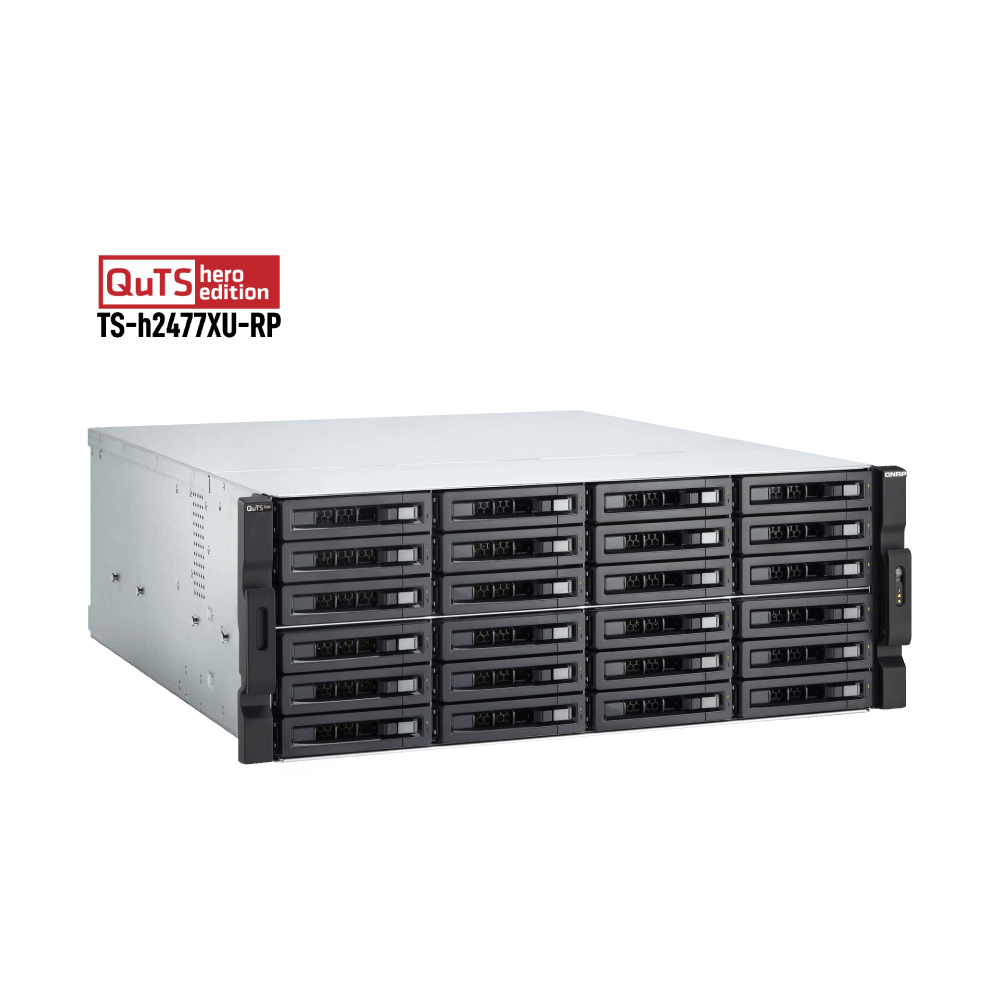

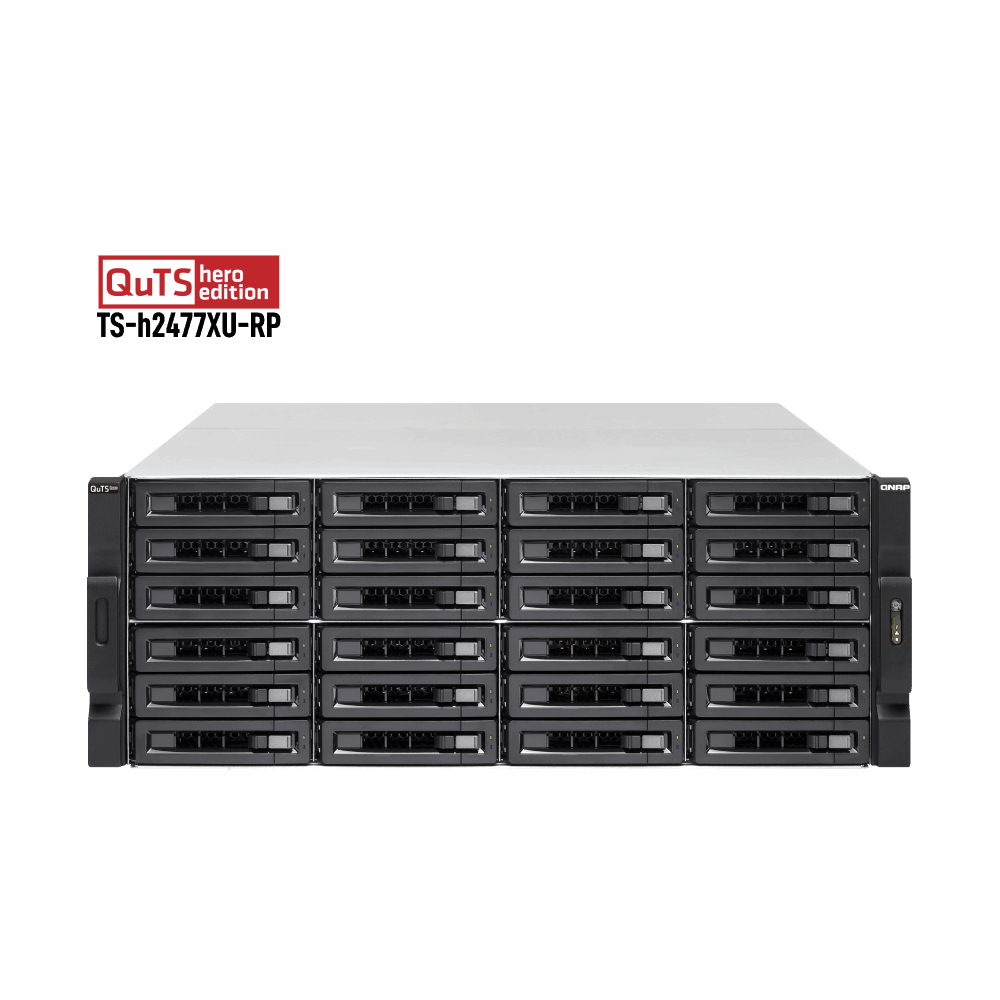

The TS-h2477XU-RP QuTS hero NAS is powered by an AMD Ryzen™ 7 processor that delivers supreme system and virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the ZFS-based QuTS hero operating system, the TS-h2477XU-RP prioritizes data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, SNMP protocol, and Azure AD Domain Services. Used as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup/recovery solution, the TS-h2477XU-RP helps your business achieve the outstanding service-level agreement performance.
-
2 x 10GbE SFP+ ports
Two built-in 10GbE SFP+ ports support iSER and empower bandwidth-demanding applications for virtualization, intensive file access, and large backup/restoration tasks.
-
4 x PCIe Gen 3 slots
PCIe slots allow for installing 5/10/25GbE adapters, QM2 cards, or Fibre Channel cards to increase application potential and performance.
-
SSD cache acceleration
SSD cache acceleration improves random read performance to boost IOPS-demanding applications.
-
Virtualization applications
Supports storage for virtualization, and directly hosts virtual machines and containers.
-
Cloud storage gateway
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
-
Backup & restore
Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google™ Workspace, Microsoft 365®, VMware® and Hyper-V).
Specification
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit |  |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x8 or PCIe Gen 3 x4** Slot 4: PCIe Gen 3 x4 *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use. ***PCIe slot 4 is preinstalled with a 10GbE network adapter Card dimensions for PCIe slot 1：260 x 131.15 x 28.76 mm / 10.24 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 2：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 3：300 x 131.15 x 28.76 mm / 11.81 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 4：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 5：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | HDD 1-24, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 176.2 × 441.6 × 630.2 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 22.68 kg |
| Weight (Gross) | 28.46 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 800W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 143.97 W
Tested with drives fully populated.
|
| Fan | System fan: 4 x 92mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
