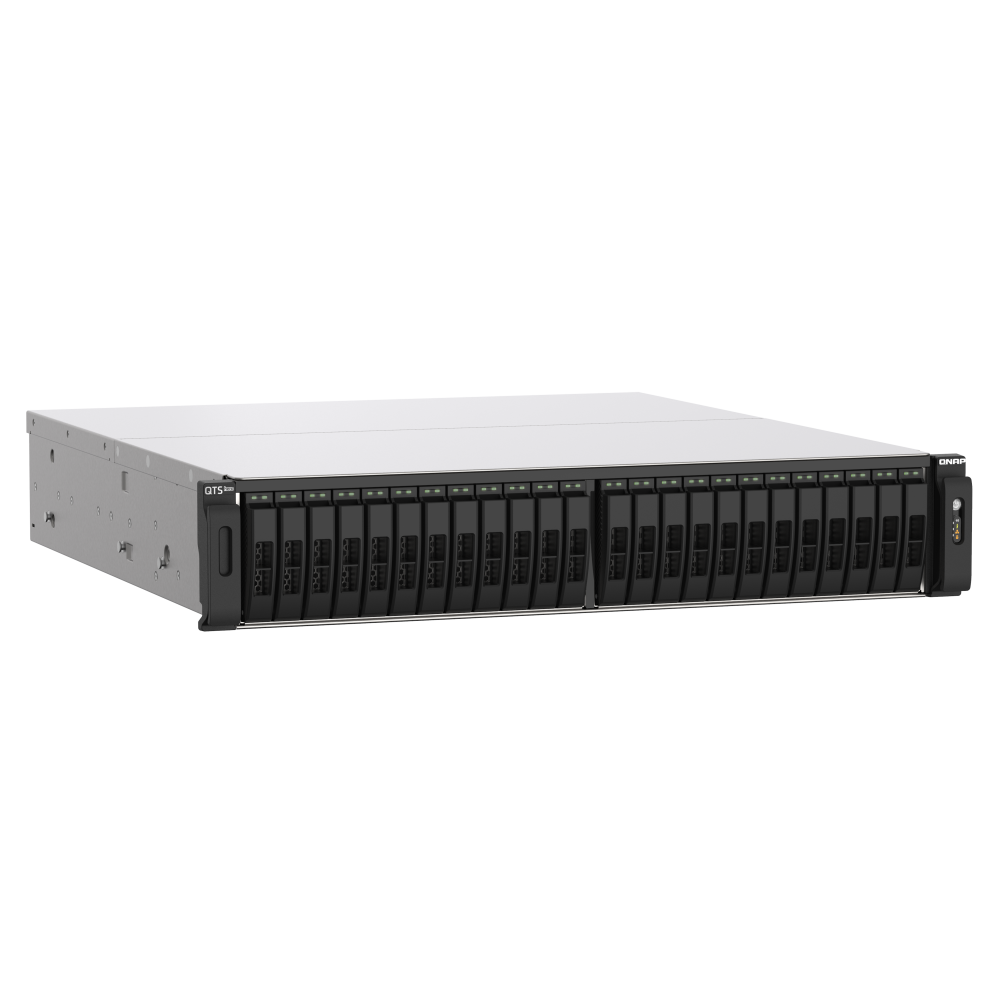

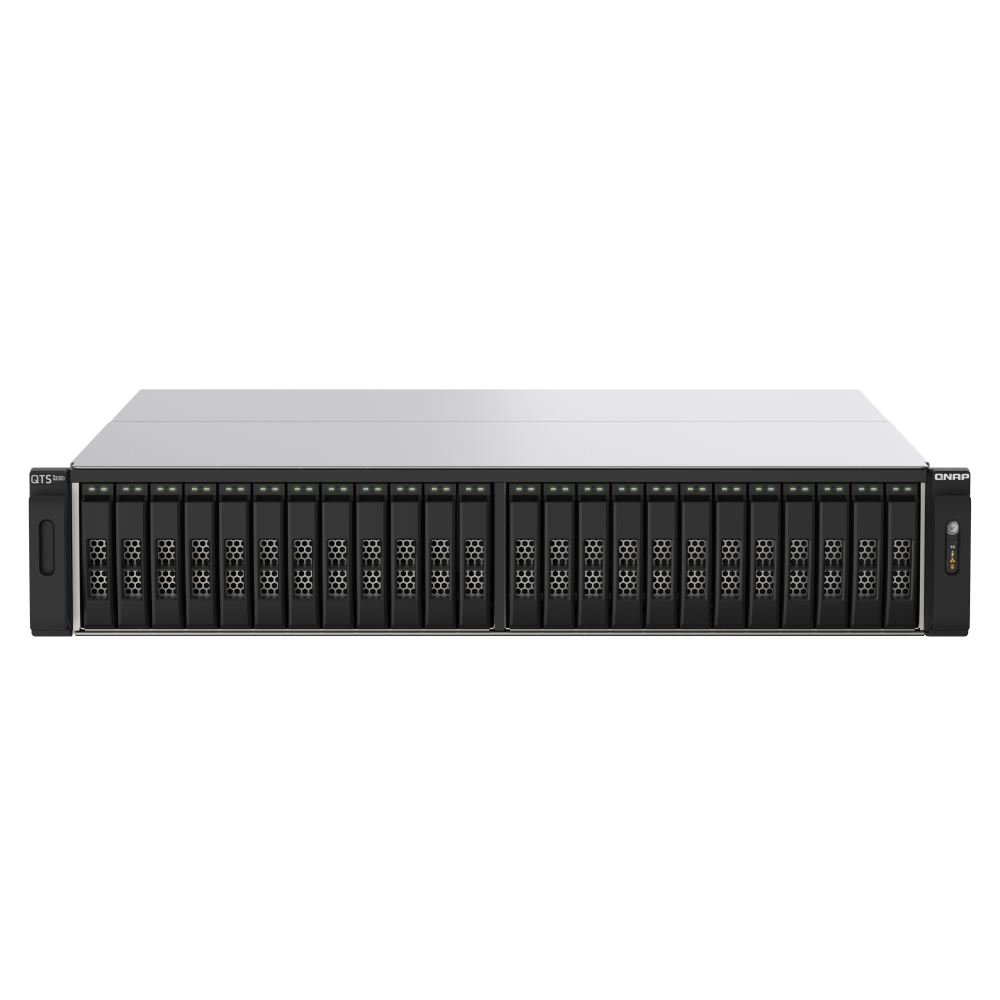

24-bay U.2 NVMe all-flash NAS
AMD EPYC™ 7002 series processor
Up to 661K / 245K iSCSI 4K random read/write IOPS
The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 661K / 245K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.
-
Optimal SSD performance
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
-
4 x 25GbE SFP28 ports
Multi-connectivity of 25GbE SFP28 and 2.5GbE RJ45 accelerate virtualization, intensive file access, and large backup/restoration tasks.
-
5 x PCIe Gen 4 slots
PCIe Gen 4 slots allow for installing 10GbE/25GbE/40GbE/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
-
Virtualization applications
Supports virtualization storage and hosting virtual machines and containerized apps.
-
Cloud storage gateway
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
-
Petabyte-scale storage
Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity.
Specification
| CPU | AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 64 GB RDIMM DDR4 ECC (8 x 8 GB) |
| Maximum Memory | 4 TB (16 x 256 GB) |
| Memory Slot | 16 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 2.5-inch U.2 PCIe NVMe
The system is shipped without SSD.
For the SSD compatibility list, please visit |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 3 x4 solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| SR-IOV |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame |
|
| PCIe Slot | 5 Slot 1: PCIe Gen4 x4 Slot 2: PCIe Gen4 x8 or x4 Slot 3: PCIe Gen4 x4 Slot 4: PCIe Gen4 x8 Slot 5: PCIe Gen4 x16 or x8 *Slot 5 is preinstalled with a 25GbE network adapter.
**Slot 2 provides the width of PCIe Gen4 x8 when Slot 3 is not in use, and provides the width of PCIe Gen4 x4 when Slot 3 is in use. ***Slot 5 provides the width of PCIe Gen4 x16 when Slot 4 is not in use, and provides the width of PCIe Gen4 x8 when Slot 4 is in use. Card dimensions for PCIe slot 1：225 x 68.9 x 28.76 mm / 8.86 x 2.71 x 1.13 inches. Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 4：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 5：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD, Status, 10 GbE, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 480.97 × 510.23 mm |
| Weight (Net) | 16.77 kg |
| Weight (Gross) | 20.95 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 1100W PSU(x2), 100-240Vac, Max Wattage: 1100W@200-240Vac 850W@100-240Vac |
| Power Consumption: Operating Mode, Typical | 277.64 W
Tested with drives fully populated.
|
| Fan | 4 x 60mm, 12VDC |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
