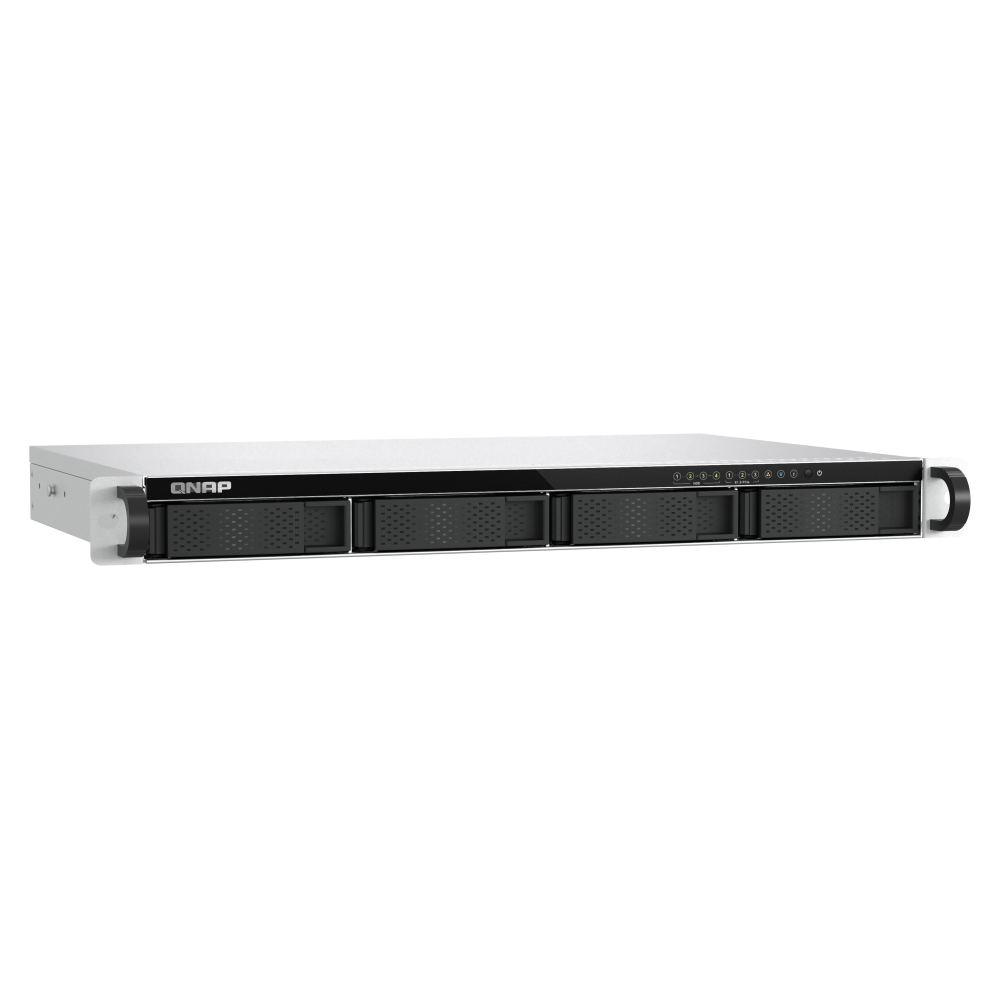

4-bay 1U short-depth rackmount NAS
QNAP TS-h765eU-8G
A space-saving QuTS hero NAS with four SATA drive bays, three E1.S/M.2 NVMe slots, DDR5 memory and dual 2.5GbE connectivity.
Compact rackmount storage with flexible flash expansion
The QNAP TS-h765eU-8G is a 1U short-depth rackmount NAS designed for space-constrained cabinets and wall-mount racks. It runs the ZFS-based QuTS hero operating system and combines four 3.5-inch SATA bays with three E1.S slots that include pre-installed adapters for M.2 2280 NVMe PCIe SSDs.
Key features and benefits
Short-depth chassis
The 292.1 mm depth is designed for smaller media cabinets and wall-mount network racks.
DDR5 with in-band ECC
The supplied 8 GB DDR5 module has in-band ECC enabled, with a stated maximum memory of 16 GB.
Flexible NVMe slots
Three E1.S slots support E1.S NVMe PCIe SSDs and include adapters for M.2 2280 NVMe PCIe SSDs.
Dual 2.5GbE
Two 2.5GbE ports support 2.5G, 1G, 100M and 10M network speeds.
Optional 10GbE
The supplied specification lists optional 10GbE through the QXG-ES10G1T.
QuTS hero data protection
The supplied overview identifies ZFS-based QuTS hero, data-integrity features and WORM protection for data immutability.
Who is the QNAP TS-h765eU-8G best for?
A strong choice for
- Space-constrained rack or cabinet installations
- Small-business shared storage
- QuTS hero and ZFS-based data protection
- Deployments needing SATA bays plus NVMe expansion
- Networks using dual 2.5GbE connectivity
Consider another model if you need
- More than four 3.5-inch SATA bays in the base chassis
- A tower rather than rackmount form factor
- More than 16 GB maximum memory
- Built-in 10GbE without an optional module
Key specifications
- Processor
- Intel Atom x7405C 4-core, up to 3.4GHz
- System memory
- 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC
- Maximum memory
- 16 GB (1 x 16GB)
- Drive bays and slots
- 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) - Drive compatibility
- 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
E1.S NVMe PCIe SSDs
M.2 2280 NVMe PCIe SSDs - Networking
- 2 (2.5G/1G/100M/10M)
- Optional 10GbE
- Optional via QXG-ES10G1T
- USB
- 1 × USB 2.0; 1 x Type-A USB 3.2 Gen 2 10Gbps
- Dimensions
- 43 × 430 × 292.1 mm
- Warranty
- 3 (unit not stated in supplied source)
Full technical specifications
View all supplied technical specifications
| CPU | Intel Atom x7405C 4-core, up to 3.4GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC |
| Maximum Memory | 16 GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 8GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S NVMe PCIe SSDs M.2 2280 NVMe PCIe SSDs |
| Hot-swappable | Supported (Not supported M.2 SSD) |
| M.2 Slot | 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots) |
| SSD Cache Acceleration Support | Supported |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | Optional via QXG-ES10G1T |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| USB 2.0 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Short Depth Rackmount |

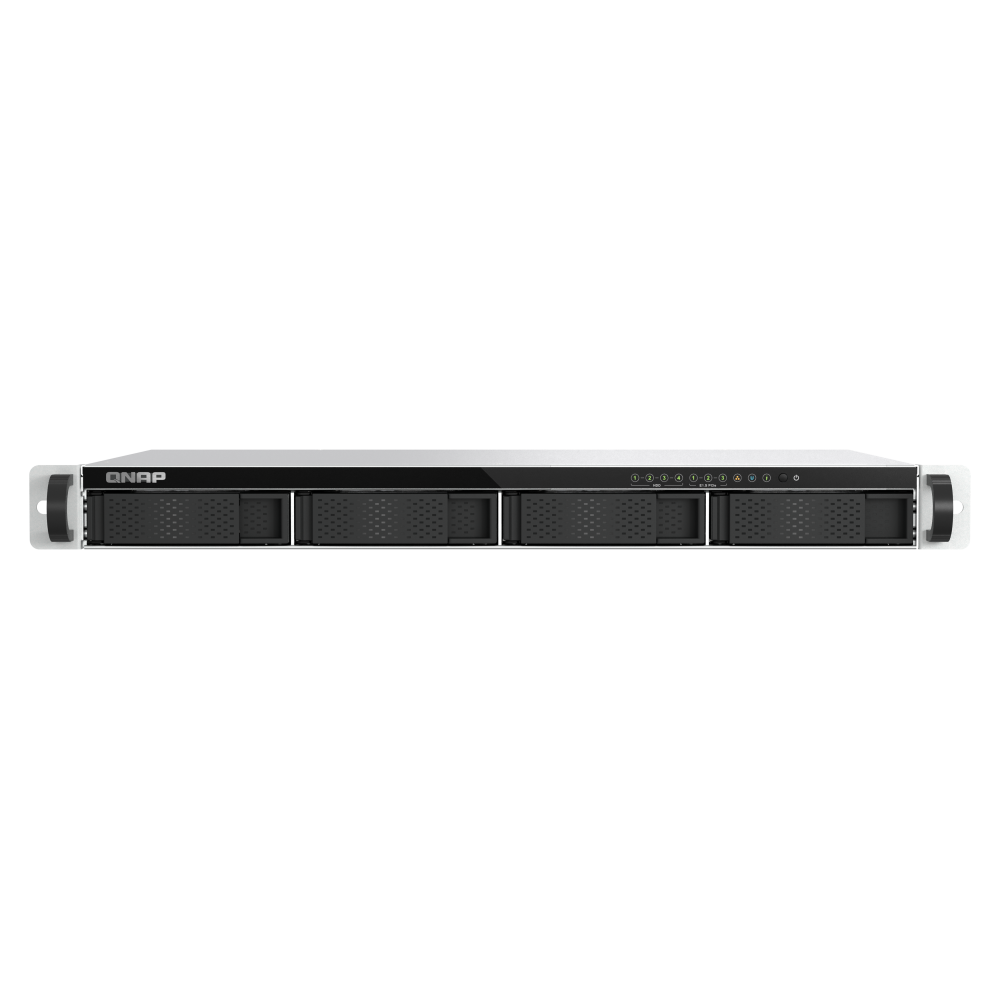

| LED Indicators | Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43 × 430 × 292.1 mm |
| Weight (Net) | 4.51 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 150W, 100-240V |
| Fan | 3 x 40mm |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Frequently asked questions about the QNAP TS-h765eU-8G
What is the QNAP TS-h765eU-8G?
It is a 4-bay, 1U short-depth rackmount NAS running the ZFS-based QuTS hero operating system.
What processor does the TS-h765eU-8G use?
It uses the Intel Atom x7405C 4-core, up to 3.4GHz.
How much memory is included?
It includes 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC, with a stated maximum of 16 GB (1 x 16GB).
What storage slots are available?
The supplied drive-bay specification is 4 x 3.5-inch SATA 6Gb/s, 3Gb/s; 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots).
Which drives are supported?
The supplied compatibility list includes 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, E1.S NVMe PCIe SSDs, M.2 2280 NVMe PCIe SSDs.
What network connectivity is built in?
It includes 2 (2.5G/1G/100M/10M); optional 10GbE is listed via QXG-ES10G1T.
How deep is the TS-h765eU-8G?
Its supplied dimensions are 43 × 430 × 292.1 mm.
What warranty applies?
The source lists the standard warranty only as “3” without a unit, so no period has been assumed.
