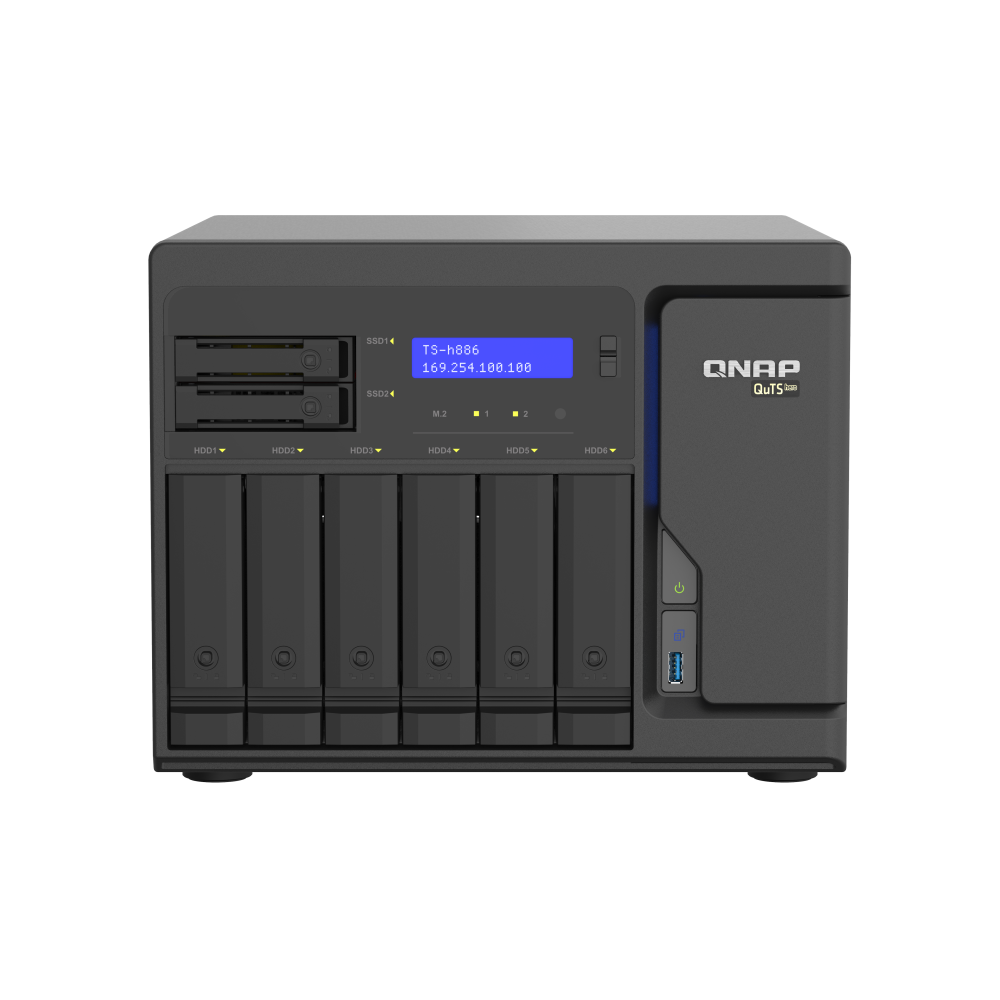

6x HDD + 2x SSD hybrid storage
2x M.2 NVMe slots for SSD caching
4x 2.5GbE, 2x PCIe slots
Delivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
-
2.5GbE connectivity
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.
-
ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
-
Dual M.2 PCIe slots
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.
-
Flexible PCIe expansion
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
-
Virtualization applications
Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
-
ZFS file system
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Specification
| CPU | Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit |
|
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB UDIMM DDR4 ECC (2 x 4 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to for compatibility.
|
| SSD Cache Acceleration Support |
|
| GPU pass-through |
|
| SR-IOV |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame |
|
| PCIe Slot | 2 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x8 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 37.52 mm / 5.90 x 2.71 x 1.48 inches. |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~8, M.2 SSD 1~2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225 × 292.9 × 319.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 10 kg |
| Weight (Gross) | 10.3 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100~240V |
| Power Consumption: Operating Mode, Typical | 75.79 W
Tested with drives fully populated.
|
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot |
|
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
