9-bay Ryzen rackmount NAS
QNAP TS-h977XU-RP-3700X-32G
A 9-bay diskless rackmount NAS supplied with an AMD Ryzen 7 3700X 8-core processor, 32GB DDR4, two 10GbE SFP+ ports, two 10GBASE-T ports and two Gigabit Ethernet ports. Its title and table conflict on chassis height.
Ryzen-powered hybrid rackmount storage with four 10GbE ports
The QNAP TS-h977XU-RP-3700X-32G combines four 3.5-inch and five 2.5-inch SATA bays with an 8-core AMD Ryzen processor and 32GB DDR4 memory. The supplied content positions it for file serving, virtualisation, VDI, collaborative video editing, backup and recovery. Its title says 2U while the specification table says 1U, so the chassis height must be confirmed.
Key features and benefits
Eight-core Ryzen processing
The supplied AMD Ryzen 7 3700X provides eight cores, sixteen threads and burst frequency up to 4.4GHz.
Four 10GbE ports
Two 10GbE SFP+ ports and a preinstalled dual-port 10GBASE-T adapter are listed.
Hybrid SATA storage

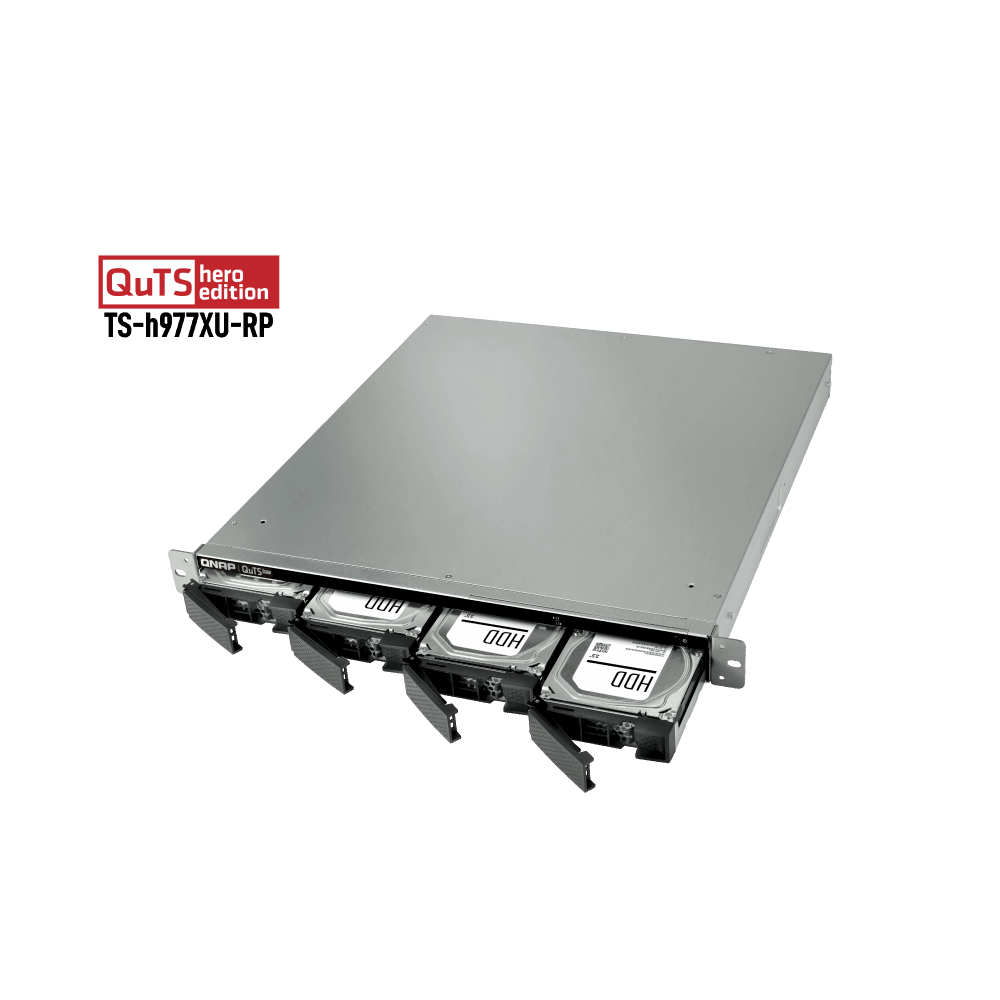

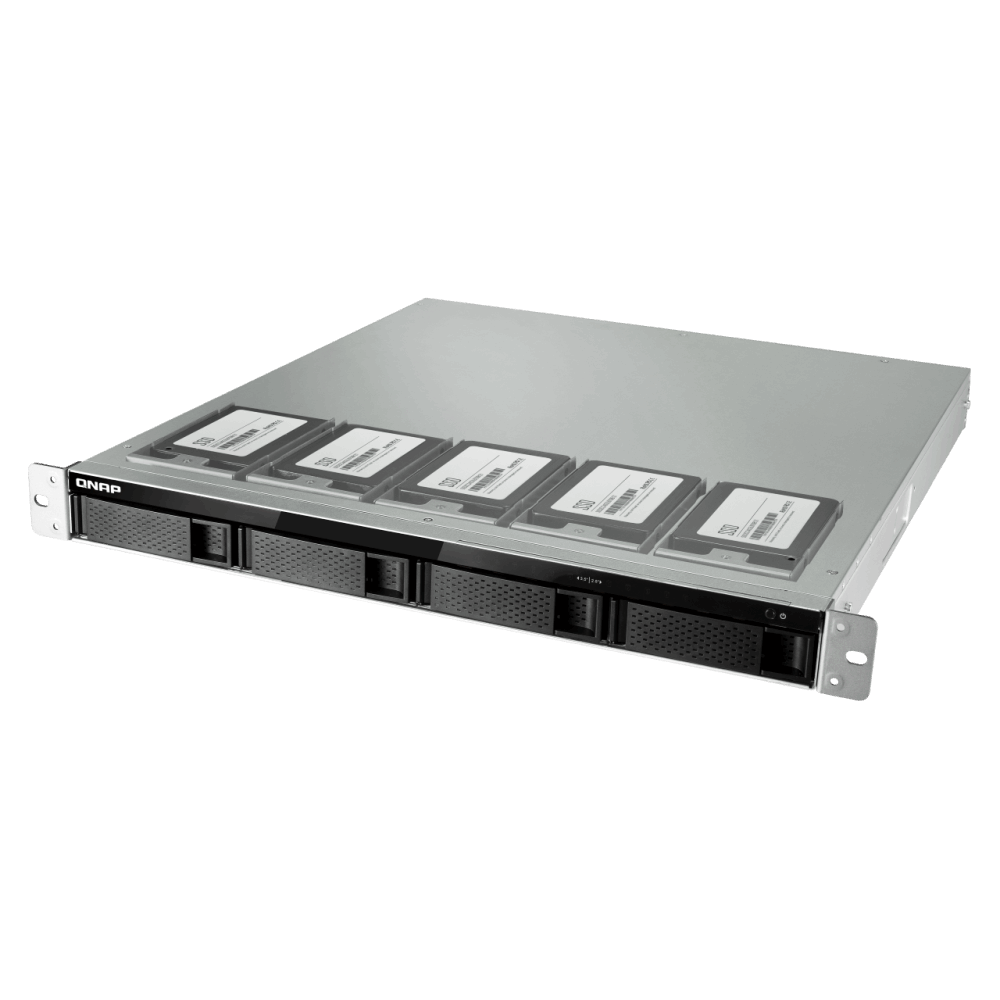

Four 3.5-inch and five 2.5-inch SATA bays support combined HDD and SSD configurations.
Memory expansion
The table lists 32GB installed and a maximum of 128GB across four UDIMM slots.
QuTS hero data services
The supplied overview includes snapshots, SnapSync, inline deduplication and inline compression.
Chassis height needs confirmation
The title identifies 2U while the technical table identifies 1U.
Who is the QNAP TS-h977XU-RP-3700X-32G best for?
A strong choice for
- High-bandwidth business file serving
- Virtualisation and VDI storage
- Collaborative video-editing storage
- Business backup and recovery
- Hybrid HDD and SSD configurations
Consider another model if you need
- Publishing before confirming 1U versus 2U
- A current model where the EOL-prefixed variant SKU is a concern
- Built-in 2.5GbE rather than Gigabit management ports
- More than 9 internal bays
- A tower enclosure
Key specifications
- Processor
- AMD Ryzen 7 3700X, 8-core/16-thread, burst up to 4.4GHz
- Memory
- 32GB UDIMM DDR4 (2 × 16GB); maximum 128GB (4 × 32GB)
- Drive bays
- 4 × 3.5-inch + 5 × 2.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDDs; 2.5-inch SATA HDDs; 2.5-inch SATA SSDs
- Networking
- 2 × Gigabit Ethernet; 2 × 10GbE SFP+ SmartNIC; 2 × 10GBASE-T
- PCIe
- 1 × PCIe Gen 3 x16, preinstalled with a 10GbE network adapter
- USB
- 4 × USB 3.2 Gen 1; 1 × Type-A USB 3.2 Gen 2
- Form factor
- Conflict: product title says 2U; specification table says 1U rackmount
- Dimensions
- 43.3 × 482.6 × 505.54 mm, excluding ear hook and protruding PSU section
- Net weight
- 8.62 kg
- Power supply
- 2 × 300W, 100–240V
- Variant SKU
- EOL-TS-h977XU-RP-3700X-32G; manufacturer SKU TS-h977XU-RP-3700X-32G
Full technical specifications
View all supplied technical specifications
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x16 PCIe slot is preinstalled with a 10GbE network adapter Card dimensions for PCIe slot:215 x 68.9x 18.76 mm / 8.46 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Rackmount |

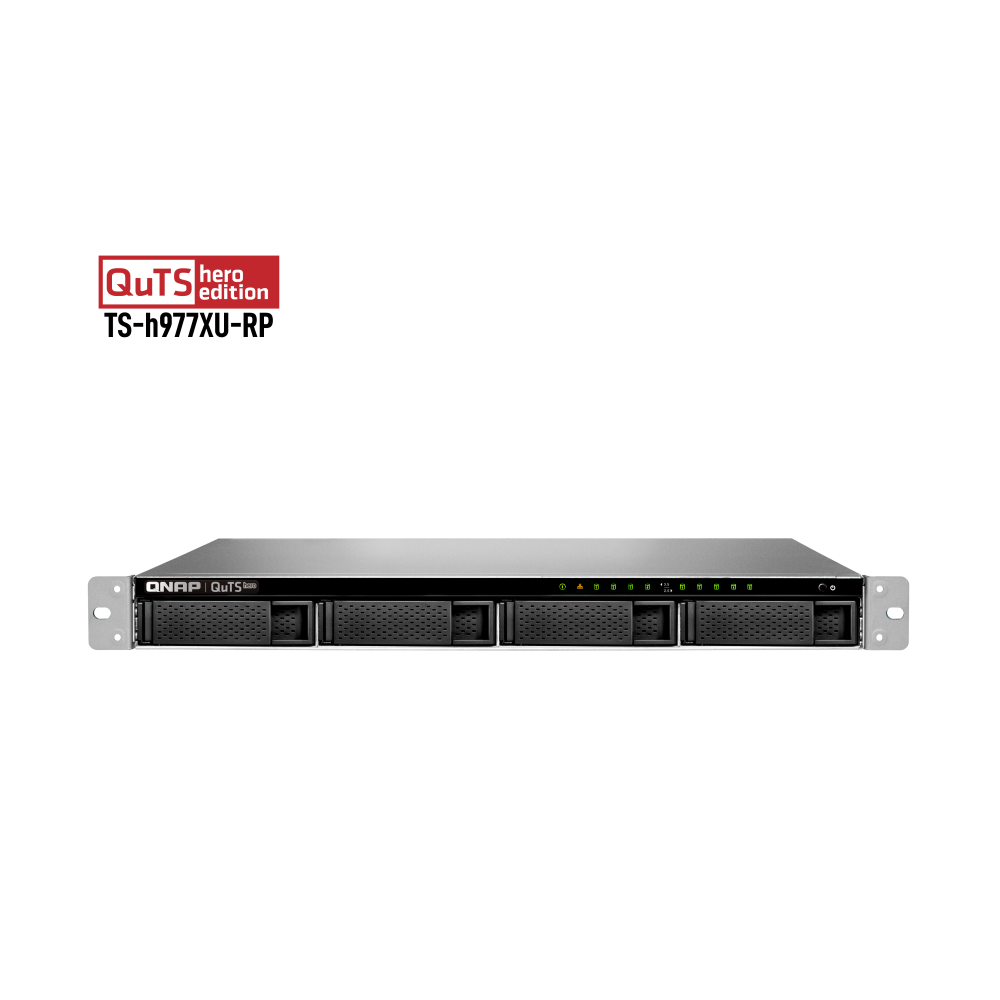

| LED Indicators | HDD 1-9, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 482.6 × 505.54 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 8.62 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6˚F) |
| Power Supply Unit | 300W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 76.43 W Tested with drives fully populated. |
| Fan | System fan: 3 x 40mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Frequently asked questions about the QNAP TS-h977XU-RP-3700X-32G
What is the QNAP TS-h977XU-RP-3700X-32G?
It is a 9-bay diskless rackmount NAS with an AMD Ryzen 7 3700X processor, 32GB DDR4 and four supplied 10GbE ports.
How are its drive bays arranged?
The source lists four 3.5-inch SATA bays and five 2.5-inch SATA bays.
How much memory is installed?
The table lists 32GB DDR4 as two 16GB modules and a maximum of 128GB.
What 10GbE ports are included?
Two 10GbE SFP+ ports and two 10GBASE-T ports are listed.
Is it 1U or 2U?
The title says 2U but the table says 1U, so the chassis height must be confirmed.
Does the source list a warranty?
No standard-warranty value appears in the supplied technical table, so no warranty duration has been added.
Is it supplied with drives?
No. The product title identifies it as diskless.
