Delivering reliable, highly available SAN services

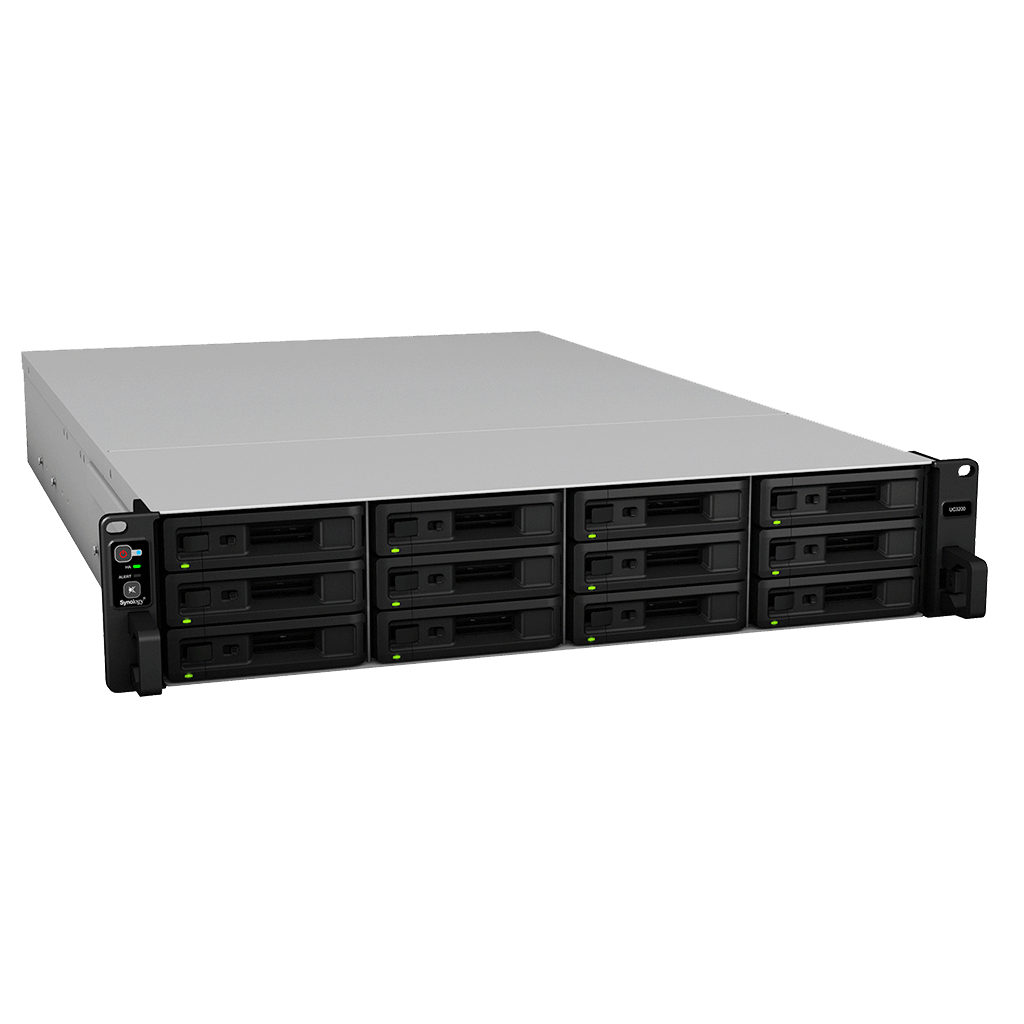

Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.

Specification

Hardware Specifications
Controller	Number of Controller Module	2
CPU	CPU Model	Intel Xeon D-1521
	CPU Quantity	1 (per controller)
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.4 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC UDIMM (per controller)
	Memory Module Pre-installed	8 GB (8 GB x 1) (per controller)
	Total Memory Slots	4 (per controller)
	Maximum Memory Capacity	64 GB (16 GB x 4) (per controller)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

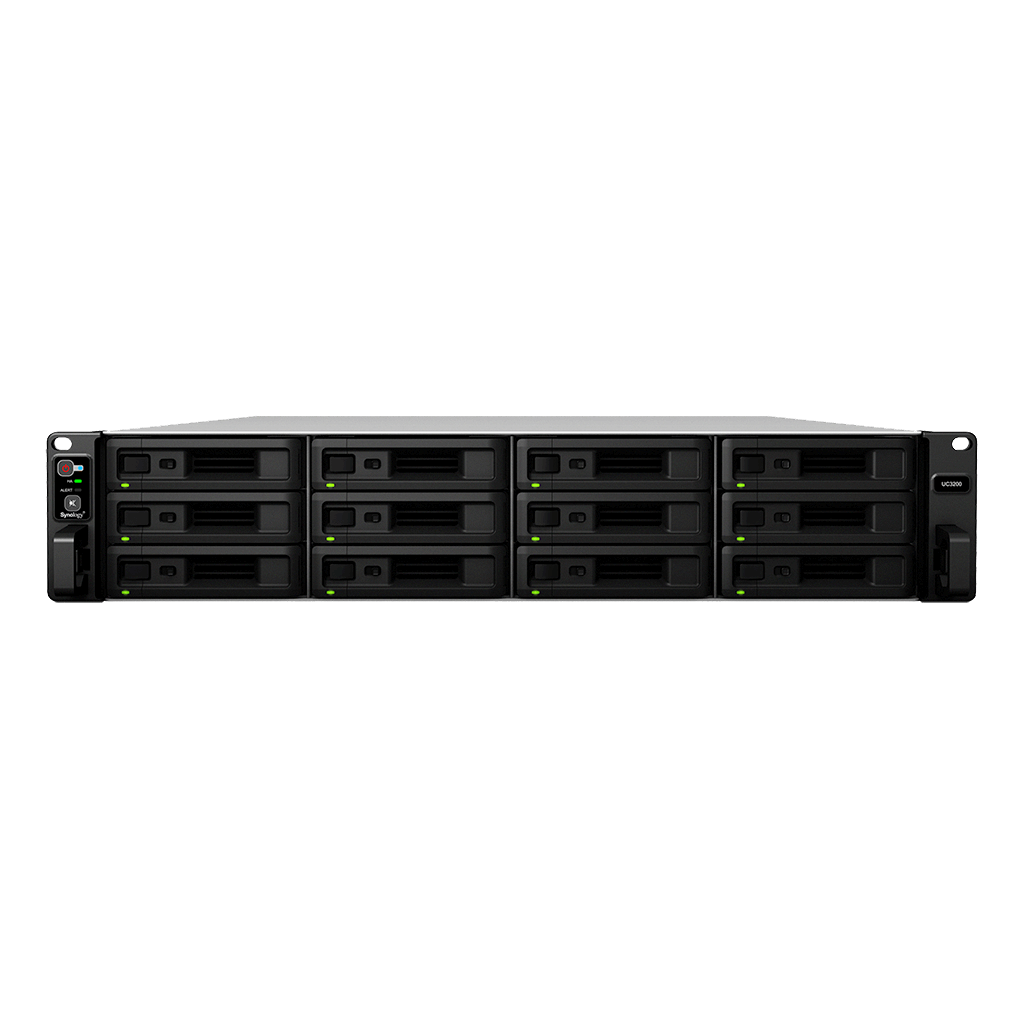

Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	36 (RXD1219sas x 2)
	Compatible Drive Type*	2.5” dual-port SAS SSD 2.5” dual-port SAS HDD 3.5” dual-port SAS HDD
	Hot Swappable Drive*
	Notes	The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support) (per controller)
	RJ-45 10GbE LAN Port	1 (per controller)
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link) (per controller)
	Add-In-Card Support	10GbE NIC 25GbE NIC FC HBA
	Internal Drives	Btrfs

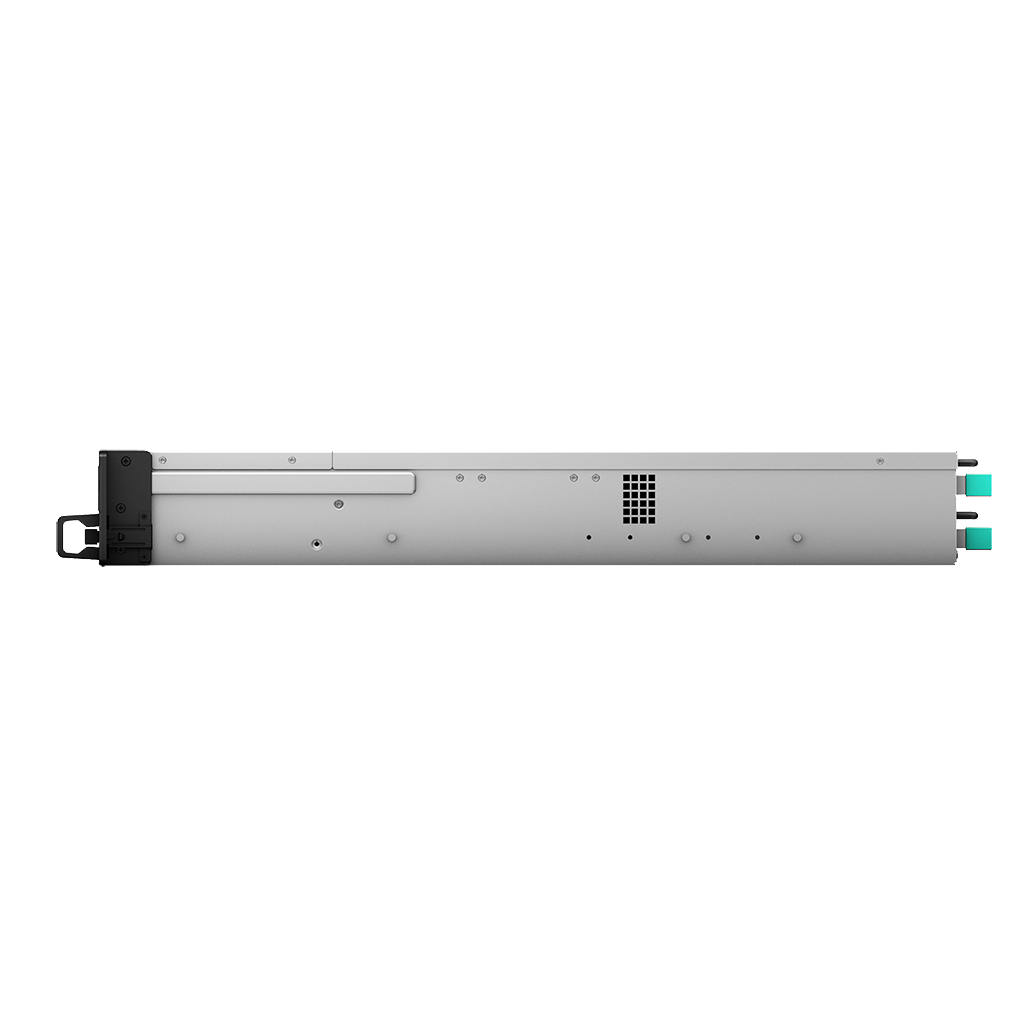

Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	19.7 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 2 (per controller)
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	51.3 dB(A)
	Power Supply Unit / Adapter	500W
	Redundant Power Supply
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60Hz, Single Phase
	Power Consumption	417.48 W (Access)
	British Thermal Unit	1425.45 BTU/hr (Access)
	Notes	Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	CE FCC BSMI VCCI RCM UKCA KC EAC CCC
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
