4-bay 10GbE desktop NAS — diskless

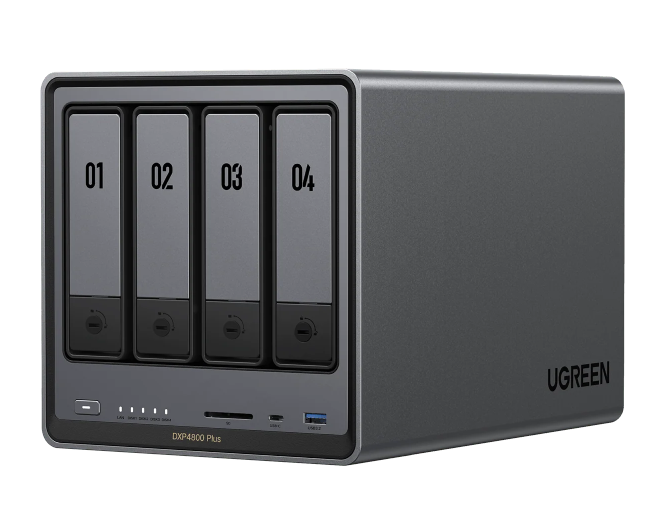

UGREEN NASync DXP4800 Plus 4-Bay Desktop NAS
The UGREEN NASync DXP4800 Plus is a diskless four-bay NAS with an Intel Pentium Gold 8505 processor, 8GB DDR5 memory, dual M.2 slots, 10GbE plus 2.5GbE networking and 4K HDMI output.
- Processor
- Intel Pentium Gold 8505
- Memory
- 8GB DDR5; up to 64GB
- Storage bays
- 4 × SATA + 2 × M.2
- Networking
- 1 × 10GbE + 1 × 2.5GbE
Fast private cloud storage with room to grow
The UGREEN NASync DXP4800 Plus combines four SATA bays and two M.2 SSD slots with UGOS Pro, high-speed networking and a broad port selection. It is a strong choice for centralised files, multi-device backup, remote access, photo organisation and media management where compatible drives are selected separately.
Five-core Intel platform
The Intel Pentium Gold 8505 provides five cores and six threads for UGOS Pro services.
Dual-speed networking
A 10GbE port and a separate 2.5GbE port support fast workstations and broader network access.
Four SATA plus two M.2 slots
Combine four SATA drive bays with two M.2 SSD slots for supported storage configurations.
Upgradeable DDR5 memory
The included 8GB DDR5 memory has a verified maximum of 64GB.
Private cloud tools
UGOS Pro supports supplied file access, sharing, backup and AI photo-organisation workflows.
Broad local connectivity
Front and rear USB, SD 3.0 and 4K HDMI provide practical transfer and media options.
Who is the UGREEN NASync DXP4800 Plus best for?
A strong choice for
- Content creators with a 10GbE workstation
- Home and small-business private cloud storage
- Multi-device file backup and sharing
- Photo and media library organisation
- Users planning SATA and M.2 storage
Consider another model if you need
- You need storage drives included in the package
- Your network does not support 2.5GbE or 10GbE
- You require more than four SATA bays
- Your chosen drives are not on UGREEN's compatibility list
Key specifications
- Model
- DXP4800 Plus
- Processor
- Intel Pentium Gold 8505, 5 cores / 6 threads
- Operating system
- UGOS Pro
- Memory
- 8GB DDR5
- Maximum memory
- 64GB
- System disk
- 128GB SSD
- SATA drive bays
- 4
- M.2 SSD slots
- 2
- RAID
- JBOD, Basic, RAID 0, 1, 5, 6 and 10
- Maximum configured storage
- 144TB (4 × 32TB + 2 × 8TB)
- Networking
- 1 × 10GbE and 1 × 2.5GbE
- HDMI
- 4K
- Dimensions
- 10.1 × 7.0 × 7.0 inches
- Warranty
- 2 years
Full technical specifications
Processor, memory and storage
| Model | DXP4800 Plus |
|---|---|
| Processor | Intel Pentium Gold 8505 |
| CPU cores / threads | 5 / 6 |
| Operating system | UGOS Pro |
| Memory | 8GB DDR5 |
| ODECC | Supported |
| Maximum memory | 64GB |
| System disk | 128GB SSD |
| SATA drive bays | 4 |
| M.2 SSD slots | 2 |
| Maximum configured storage | 144TB (4 × 32TB + 2 × 8TB) |
| RAID | JBOD, Basic, RAID 0, 1, 5, 6 and 10 |
Network, ports and media
| LAN ports | 1 × 10GbE; 1 × 2.5GbE |
|---|---|
| Front high-speed USB | 1 × USB-C and 1 × USB-A, both 10Gb/s |
| Rear high-speed USB | 1 × USB-A, 5Gb/s |
| Rear USB 2.0 | 2 × USB-A, 480Mb/s |
| SD card reader | SD 3.0 |
| HDMI | 4K |
| PCIe expansion | None specified |
| Thunderbolt 4 | None specified |
| Wi-Fi | None specified |
Physical, power and warranty
| Dimensions | 10.1 × 7.0 × 7.0 inches |
|---|---|
| Power consumption — drive access | 42.36 W |
| Power consumption — drive hibernation | 18.12 W |
| Limited warranty | 2 years |
| Storage drives | Not included |
Frequently asked questions about the UGREEN NASync DXP4800 Plus
What is the UGREEN NASync DXP4800 Plus?
It is a diskless four-bay desktop NAS with two M.2 slots, UGOS Pro and built-in 10GbE plus 2.5GbE networking.
Which processor is in the DXP4800 Plus?
It uses the Intel Pentium Gold 8505 with five cores and six threads.
How much memory does the DXP4800 Plus include?
It includes 8GB DDR5 memory and supports up to 64GB.
How many storage slots does the DXP4800 Plus provide?
It has four SATA drive bays and two M.2 SSD slots.
Which RAID modes does the DXP4800 Plus support?
UGREEN lists JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10.
What networking is built into the DXP4800 Plus?
It includes one 10GbE RJ-45 port and one 2.5GbE RJ-45 port.
Does the DXP4800 Plus have HDMI?
Yes. UGREEN specifies a 4K HDMI output.
Which USB ports are included on the DXP4800 Plus?
It has front 10Gb/s USB-C and USB-A, one rear 5Gb/s USB-A, and two rear USB 2.0 ports.
Are storage drives included with the DXP4800 Plus?
No. This listing is diskless, so compatible SATA and M.2 drives are purchased separately.
What warranty applies to the DXP4800 Plus?
UGREEN specifies a two-year product warranty against manufacturing defects, subject to regional terms.
- This listing is diskless; SATA and M.2 storage drives are sold separately.
- Check every drive and memory module on UGREEN's current DXP4800 Plus compatibility list.
- The 144TB figure is a configured maximum based on 4 × 32TB SATA drives plus 2 × 8TB M.2 drives.
- Actual usable capacity, transfer speed and available features depend on the installed drives, RAID mode, network and UGOS Pro version.
